LD Systems

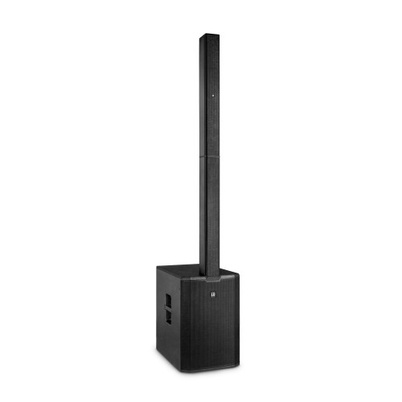

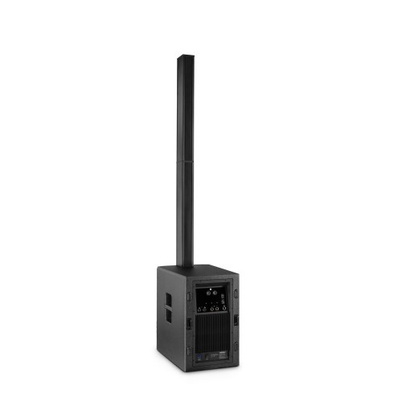

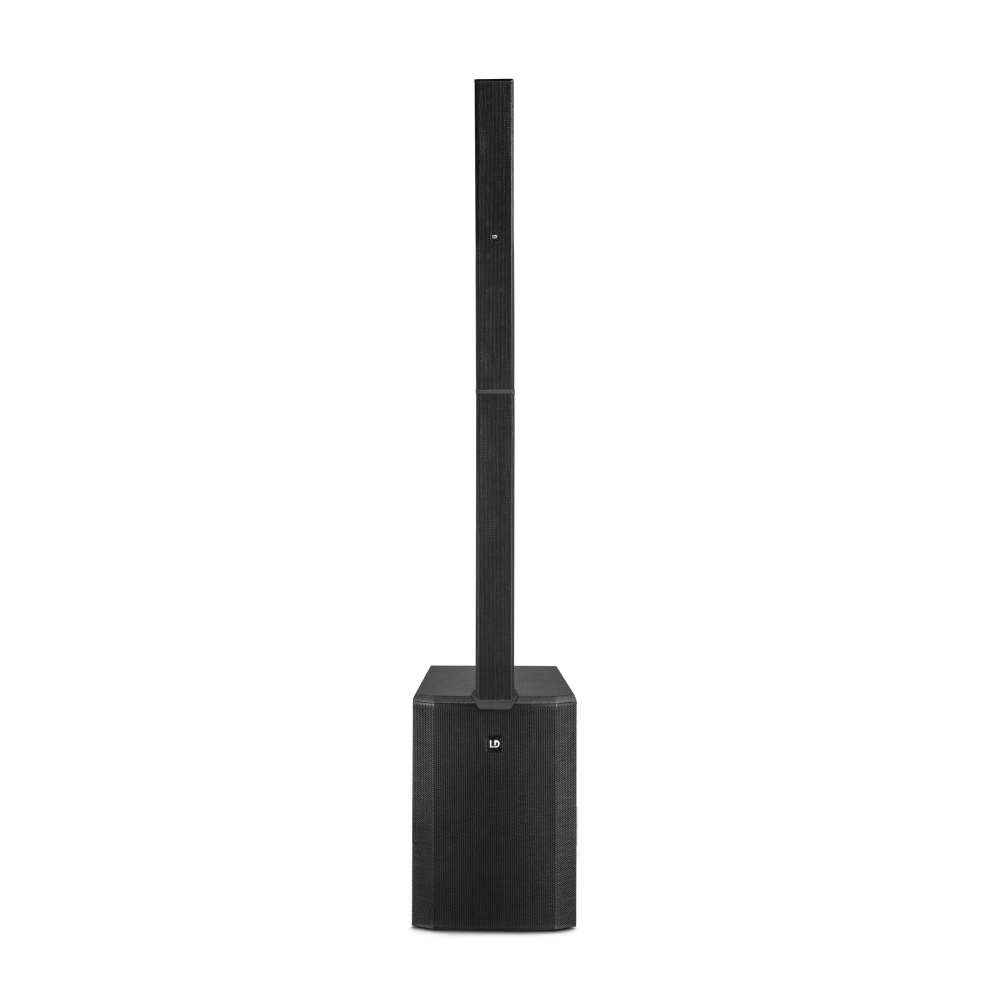

MAUI® 44 G2

Cardioid powered Column Loudspeaker

MAUI® 44 G2

Price on request

Item No.:
24 Months
  • Professional column PA system with 1500 W RMS and 132 dB max. SPL

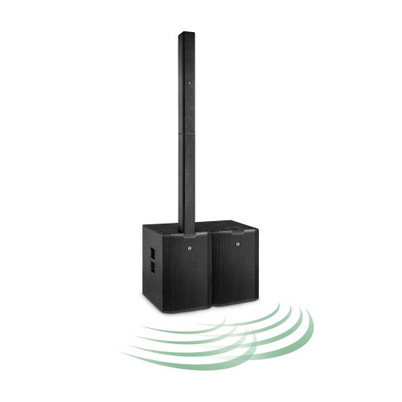

  • Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)

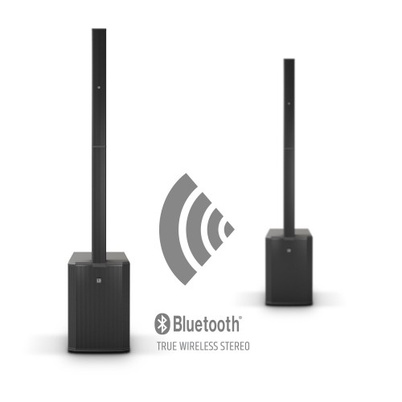

  • TrueWireless™ stereo technology for wireless stereo pairing of two column systems
  • aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
  • BEM-optimized high-frequency waveguide for uniform dispersion pattern,...
Read on
MAUI® 44 G2
MAUI® 44 G2
Cardioid powered Column Loudspeaker

Price on request



Product type
PA Complete Systems
Max. SPL (Peak)
132 dB
Frequency response
37 - 20000 Hz
Dispersion (H x V)
120 x 25 °
Total Height
2256 mm
47,6 kg
Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Woofer brand
Woofer voice coil
4 "
Woofer voice coil (mm)
101 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Birch Plywood, 18 mm Birch Plywood
Cabinet surface
Dimensions Subwoofer (W x H x D)
434 x 634 x 637 mm
Subwoofer weight
36.4 kg
Mid/Hi System
Midrange dimensions
12 x 3,5 "
Midrange dimensions (mm)
12 x 89 mm
Midrange magnet
Midrange brand
Midrange voice coil
1 "
Midrange voice coil
25.4 mm
Tweeter dimensions
4 x 0.5 "
Tweeter dimensions (mm)
12.7 mm
Tweeter magnet
Tweeter brand
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Wave Guide
CD Waveguide
Loudspeaker inputs
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Mid/Hi system cabinet material
Mid/Hi system cabinet surface
HD coated aluminum, multi layer mesh (cloth)
Mid/Hi system width
103 mm
Mid/Hi system height
1621 mm
Mid/Hi system depth
135 mm
Mid/Hi system weight
11.2 kg
Amplifier module (integrated in subwoofer)
Class D
System output (RMS)
1500 W
Protection circuits
DC protection, Multiband limiter, short circuit, thermal protection
Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Bluetooth, Bluetooth STEREO LINK, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector
Neutrik PowerCon
Operating voltage
100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80% (non-condensing)
Line Inputs
Line Input Connectors
XLR female
Line Outputs
Line Output Connectors
XLR male
Number of speaker outputs
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
Bluetooth Audio Decoder
AAC, aptX, SBC
DSP characteristics
Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
Signal-to-noise ratio
106 dB


Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system - even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.

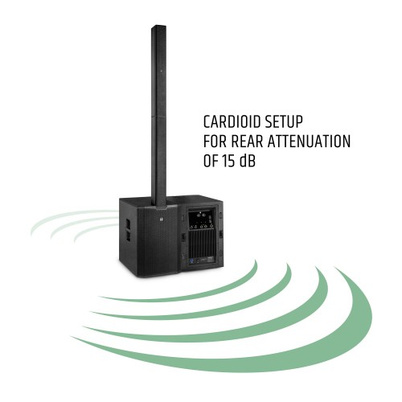

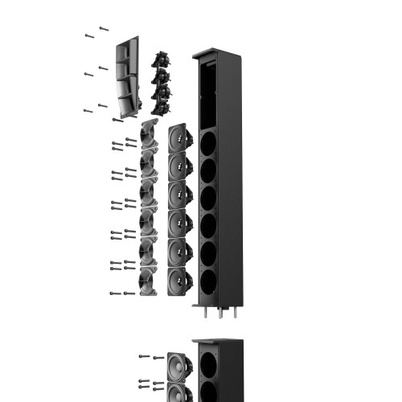

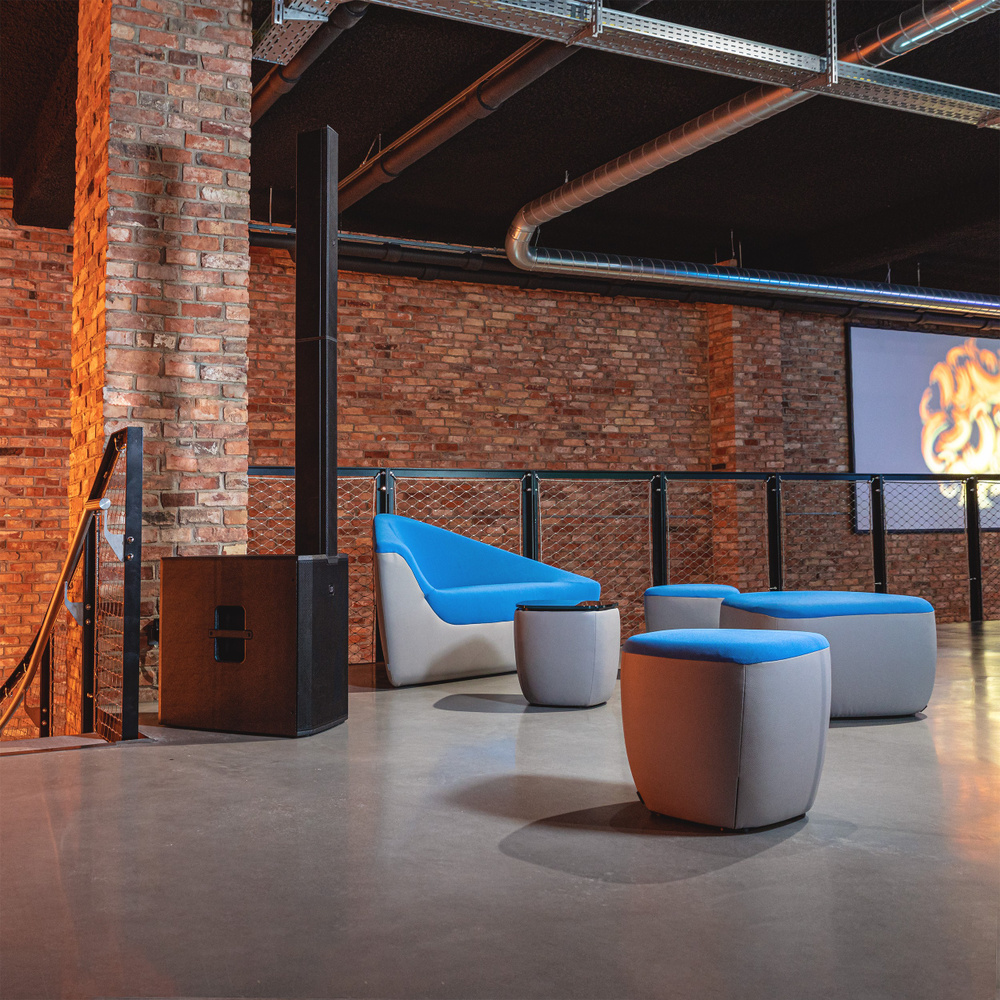

The LD Systems MAUI® 44 G2 is the flagship of the MAUI series column PAs: it offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for rental companies, musicians, small clubs, street festivals and permanent installations. The cardioid properties of the column elements and the possibility of creating a cardioid bass with an additional subwoofer further highlights the professional nature of this sound system. The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The MAUI® 44 G2 also sets the tone when the two-part column is equipped with twelve 3.5" neodymium full-range speakers and four 1" HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters. In addition, the four tweeters feature specially designed and optimised compression drivers coupled to a constant directivity waveguide to provide 120° of coverage across the width and 25° of focused vertical directivity. The curved design of the waveguide transports more energy in the high frequencies to listeners standing further away.

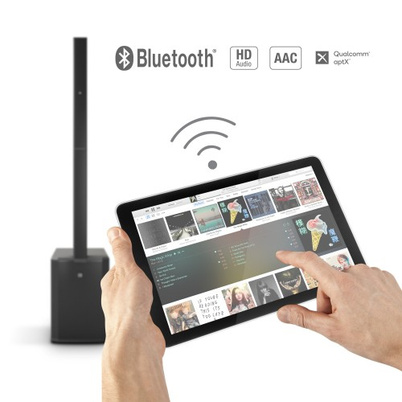

In the case of permanent installations or when providing sound for conferences, the TrueWireless™ stereo function makes life a whole lot easier since it enables two systems to be wirelessly connected for stereo reproduction. Bluetooth® streaming in HD quality is no problem at all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures distortion-free sound reproduction even at the very highest volumes. Total and subwoofer levels can be individually adjusted, providing a perfectly balanced sound in all situations, with a crystal-clear treble, a crisp mid-range and - thanks to the flow-optimised bass-reflex channels - a powerful bass.

Another particularly user-friendly feature of the MAUI® 44 G2 is automatic set-up recognition: if the column is removed to use the subwoofer as a follower, for example, the display automatically jumps to FOLLOWER and functions such as Bluetooth and the volume controls for MAIN and SUB no longer appear.

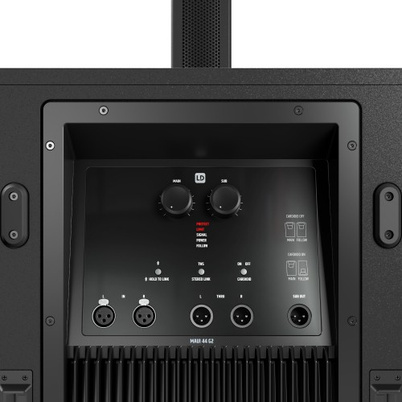

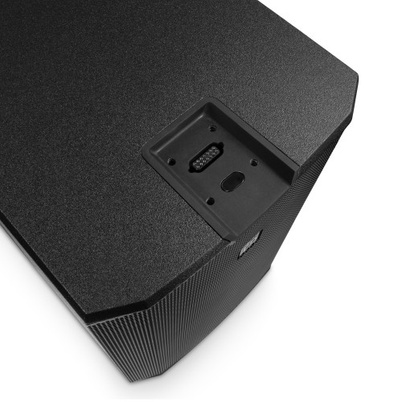

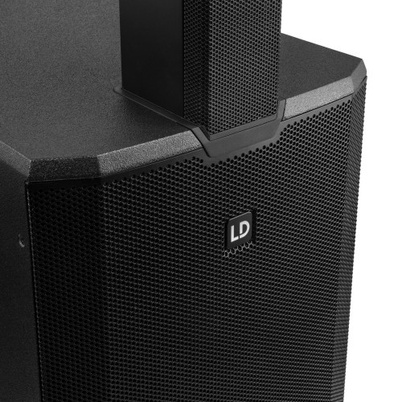

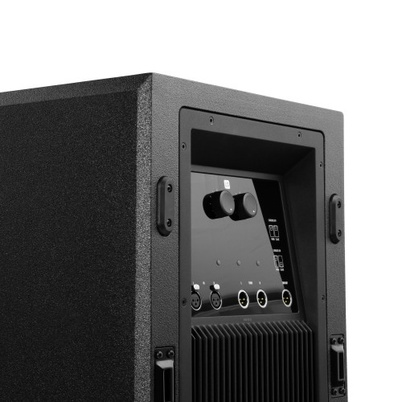

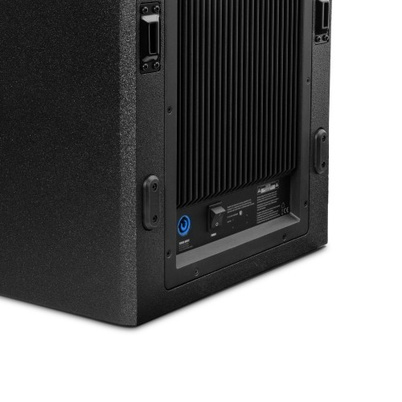

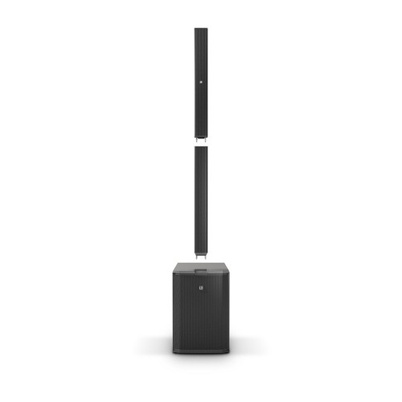

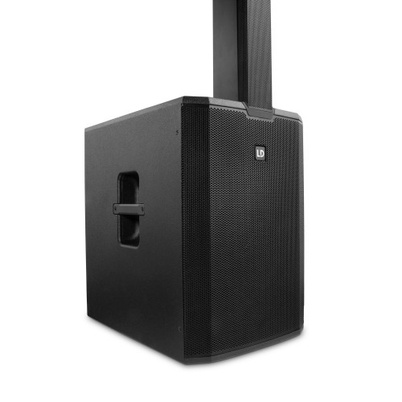

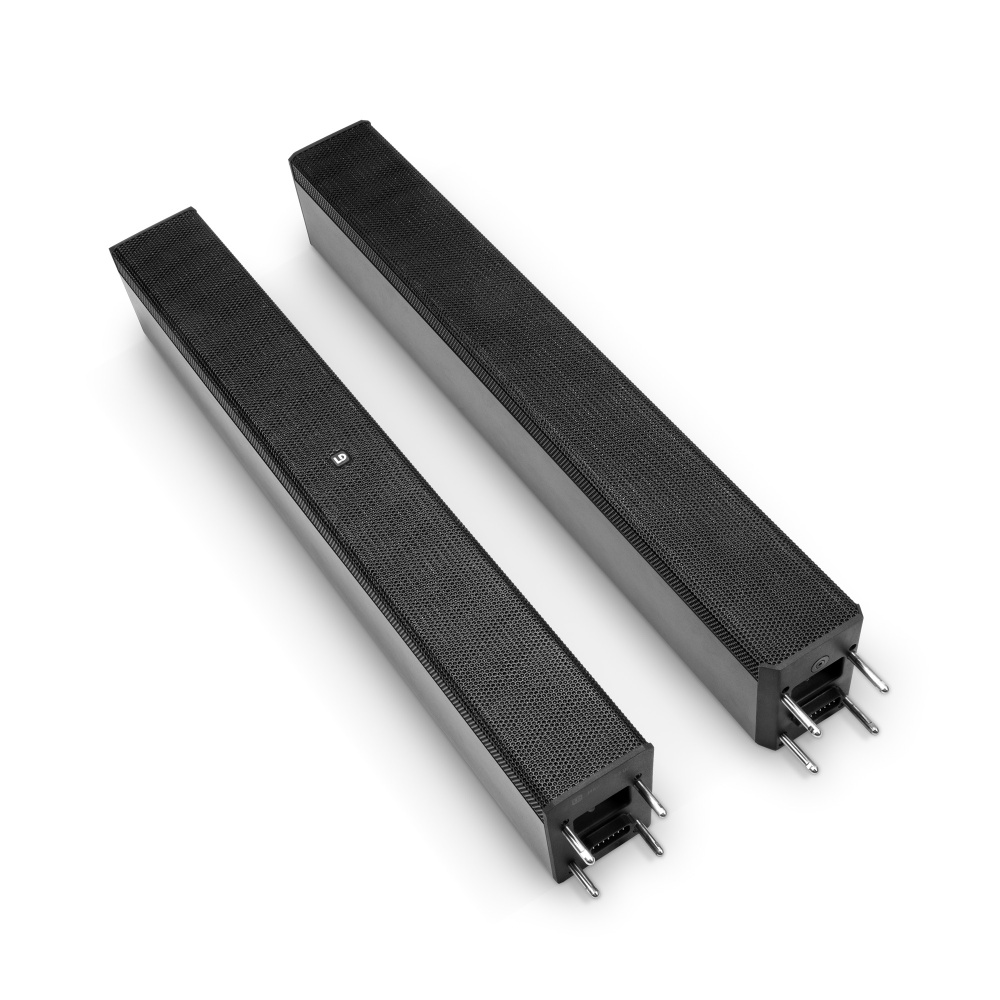

The MAUI® 44 G2 is absolutely top-class when it comes to transportation and mobile use, too: assembly is quick and simple with no need for cables or stands - special multi-pin connections are used instead. Together, the rugged subwoofer housing made of birch multiplex with polyurea coating and the light, powder-coated aluminium column weigh a total of less than 48 kg - a weight reduction of 20% as compared to the predecessor model. The optionally available transport roller board, carry bag and sub cover do a superb job in day-to-day use. In terms of inputs, the MAUI® 44 G2 offers two XLR IN connections, while two XLR outputs enable a wired stereo configuration of two systems. Meanwhile the SUB OUT can be used to hook up an additional subwoofer, and the power supply is via secure and reliable powerCon connection.
