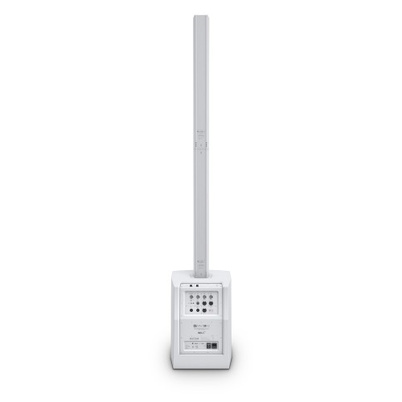

MAUI 28 G2 W

Compact column PA system active with built-in mixer and Bluetooth white

MAUI 28 G2 W

RRP 1.462,50 € / piece

Item No.:
24 Months
  • All-in-one column speaker for PA and monitor applications
  • 2,000 watts peak Class-D system power offers high performance with a low weight
  • Powerful bass reproduction with 2 x 8" woofers
  • Balanced mids thanks to the 16 x 3" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Increased range and wider coverage through the array arrangement
  • Homogeneous dispersion pattern through a BEM-optimised...
Read on
MAUI 28 G2 W
MAUI 28 G2 W
Compact column PA system active with built-in mixer and...

RRP 1.462,50 € / piece



30,9 kg
Product type
PA Complete Systems
Max. SPL (Peak)
126 dB
Frequency response
45 - 20000
Dispersion (H x V)
120° x 20 °
Overall height
2059 mm
Woofer characteristics
Low/mid Woofer dimensions
2 x 8 "
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Woofer brand
Woofer voice coil
2 "
Woofer voice coil (mm)
50.8 mm
Cabinet construction
Bass Reflex
Cabinet material
15 mm Plywood
Cabinet surface
texture paint
Subwoofer width
370 mm
Subwoofer height
484 mm
Subwoofer depth
480 mm
Subwoofer weight
19.7 kg
Mid/Hi System
Midrange dimensions
16 x 3 "
Midrange dimensions (mm)
16 x 76.2 mm
Midrange magnet
Midrange brand
Midrange voice coil
1 "
Midrange voice coil
25.4 mm
Tweeter dimensions
2 x1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Tweeter brand
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Loudspeaker inputs
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Mid/Hi system cabinet material
Mid/Hi system cabinet surface
HD coating
Mid/Hi system width
96 mm
Mid/Hi system height
780 / 795 mm
Mid/Hi system depth
104 mm
Mid/Hi system weight
5.6 / 5.6 kg
Amplifier module (integrated in subwoofer)
Class D
Amplifier output system (RMS)
1000 W
Amplifier output system (peak)
2000 W
Protection circuits
DC protection, Multiband limiter, short circuit, thermal overload
Operating Temperature
0 - 40 °C
Humidity Range
10% to 80%, (non-condensing)
Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
Power connector
IEC power cable (included)
Operating voltage
100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.
0/11/600 W
Line inputs
2 x stereo
Line input connectors
RCA, XLR/6.3 mm jack
Line outputs
2 (1x System Out, 1x Sub Out)
Line output connectors
Mic inputs
Mic inputs
XLR/6.3 mm jack
MP3 inputs
MP3 input connectors
3.5 mm jack
Hi-Z inputs
Hi-Z input connectors
6.3 mm jack
Loudspeaker outputs
Speaker output connections
Custom-made multipin
DSP characteristics
Bit depth AD/DA converter
24 bit
Internal sampling frequency
48 kHz
Signal/noise ratio
100 dB


A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.
