Adam Hall Hardware
17285

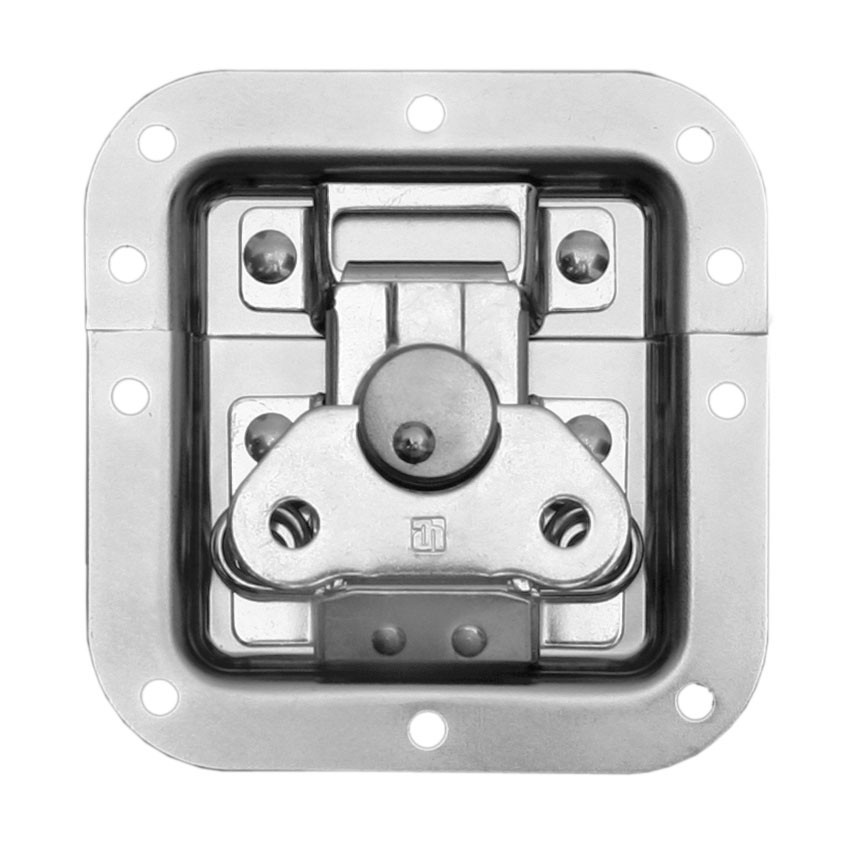

Butterfly Latch medium non cranked 9 mm deep

17285

RRP 13,12 € / piece

Item No.:
17285
EAN:
4049521004230
Guarantee:
24 Months
Unit:
piece
Series:

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Specification texts
17285
17285
Butterfly Latch medium non cranked 9 mm deep

RRP 13,12 € / piece

Specifications

Specifications

General
Product type
Catches
Type
Butterfly Latches
Material
Steel
Surface
galvanized
Mounting hole diameter
5.1 mm
Lockable
no
Dish type
non-cranked
Dish size
medium
Dish depth
9 mm
Rivet protection design
no
With push-out spring
no
Push-flat function
Yes
Weight
0,215 kg

Downloads/links

Adam Hall Flightcase Hardware Catalogue

Category: Catalog

Type: pdf

Version: todo

File size: 114 MB

Technical drawing

Category: Data Sheet

Type: pdf

Version: todo

File size: 150 KB

Tender documents

Category: Tender Specifications

Type: zip

Version: todo

File size: 73 KB

Item images

Category: Product images

Type: zip

Version: todo

File size: -

Name
Category
Type
Stand
File size
Adam Hall Flightcase Hardware Catalogue Catalog pdf Nov 2016 114 MB
Technical drawing Data Sheet pdf Jan 2017 150 KB
Tender documents Tender Specifications zip May 2019 73 KB
Item images Product images zip - -
