Neutrik
NC3FD-L-1

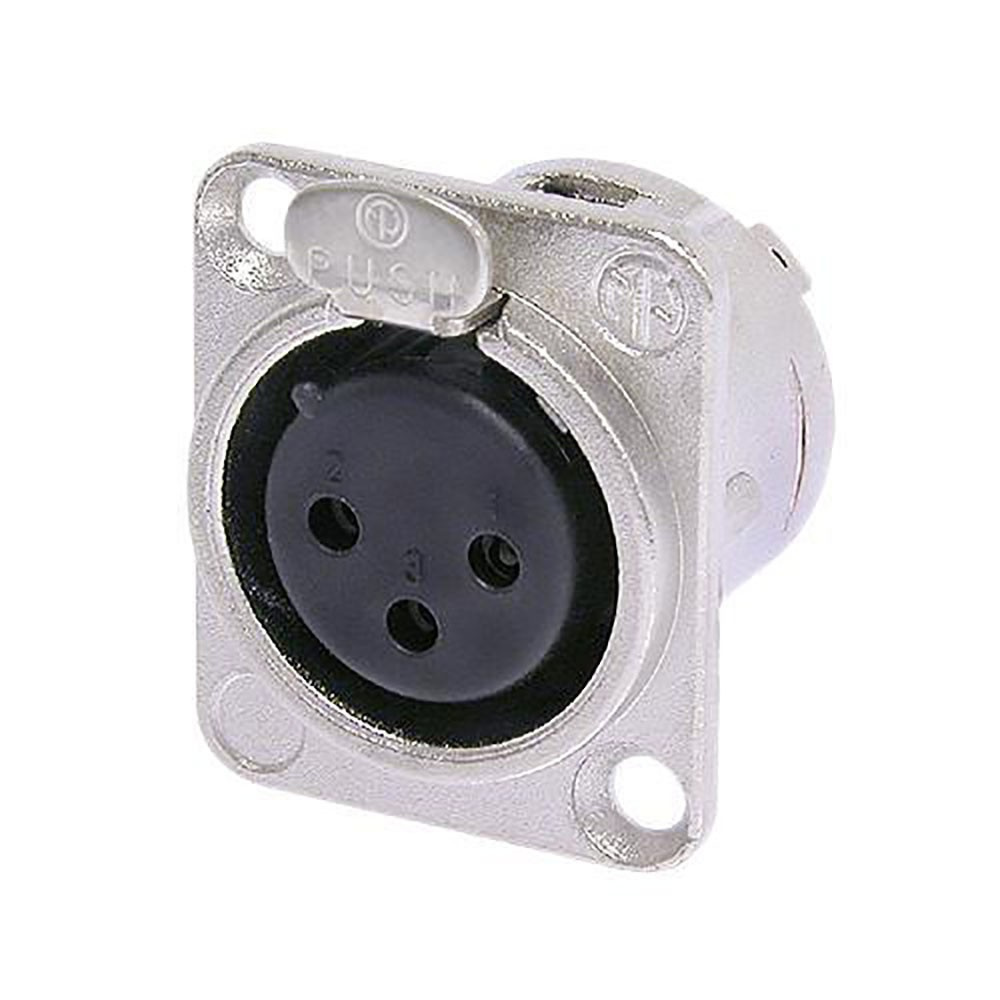

XLR plug 3-pole female Neutrik®

NC3FD-L-1

RRP 8,12 € / piece

Item No.:
NC3FDL1SB
EAN:
7613187011269
Guarantee:
12 Months
Unit:
piece
Versions:
  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version
  • Durable D-shape metal shell
  • Standard D-panel cut-out (24 mm)
  • Soldered connections
  • Protection class: IP40
  • Gender: female
NC3FD-L-1
NC3FD-L-1
XLR plug 3-pole female Neutrik®

RRP 8,12 € / piece

Specifications

Specifications

General
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
female
Contacts
silver plated
Rated current per contact
16 A
Rated Voltage
< 50 V
Connection type
solder contacts
Temperature range
80 - -30 °C
Housing
die-cast zinc
Chassis shape
D
Width
26 mm
Height
31 mm
Depth
24 mm
Fire protection class
UL 94 HB
Protection class IP
IP40
Standards compliance
IEC 61076-2-103
Weight
0,012 kg
Additional information
in D-type housing

Description

3 pole female receptacle, solder cups, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Downloads/links

Data sheet

Category: Data Sheet

Type: pdf

File size: 61 KB

Technical drawing

Category: Data Sheet

Type: dxf

File size: 172 KB

Technical drawing

Category: Data Sheet

Type: pdf

File size: 64 KB

UL Certification

Category: Data Sheet

Type: pdf

File size: 220 KB

Item images

Category: Product images

Type: zip

File size: -

Name
Category
Type
File size
Data sheet Data Sheet pdf 61 KB
Technical drawing Data Sheet dxf 172 KB
Technical drawing Data Sheet pdf 64 KB
UL Certification Data Sheet pdf 220 KB
Item images Product images zip -
