55925018

55925018

Nit zrywalny standard, 5,0 x 18,0 mm

Nr artykułu: 55925018

EAN: 8423552000571

Zakup w partiach: 250

Jednostka: Sztuka

Jednostka opakowaniowa: 1500

Wersje:

Najważniejsze informacje o artykule:

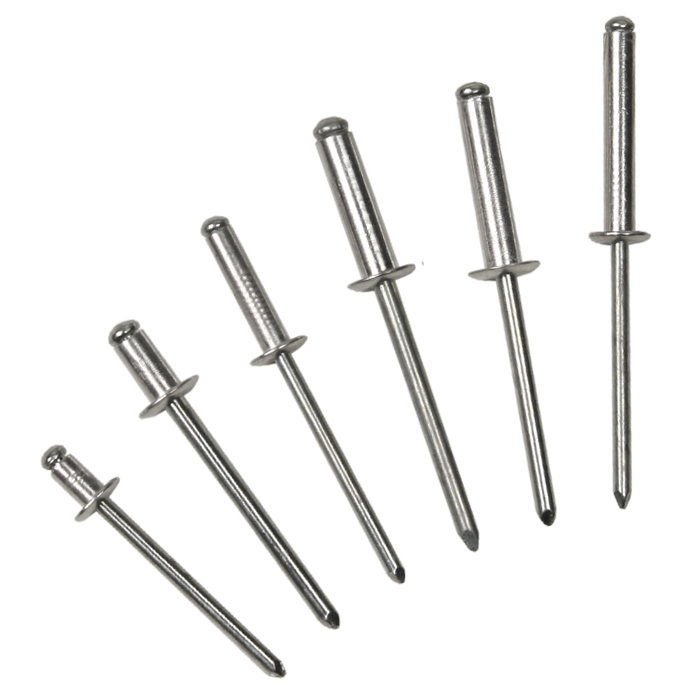

The blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and to withstand the most demanding ambient conditions.

Our standard rivets are breakstem blind rivets. A versatile rivet with a large clamping range, suitable for connecting a wide range of materials

This connecting element ensures strong and secure connection.

The Bralo standard rivet is the epitome of adaptability and reliability.

Other rivet versions for special applications and requirements available in the shop.

Specyfikacje

Rodzaj produktu
Mocowania
Typ
Nity
Ø nitu
5 mm
Długość nitu
18 mm
Ø łba
9,5 mm
Wysoka główka
1,6 mm
Ø trzpienia
2,5 mm
Zakres mocowania
12,0 - 14,0 mm
Maksymalne obciążenie ścinające
2150 N
Maksymalne obciążenie rozciągające
3100 N
Materiał nitu
aluminium
Stop nitu
AlMg 3,5
Materiał trzpienia
stal
Powierzchnia trzpienia
ocynkowana
Waga
0,003 kg
