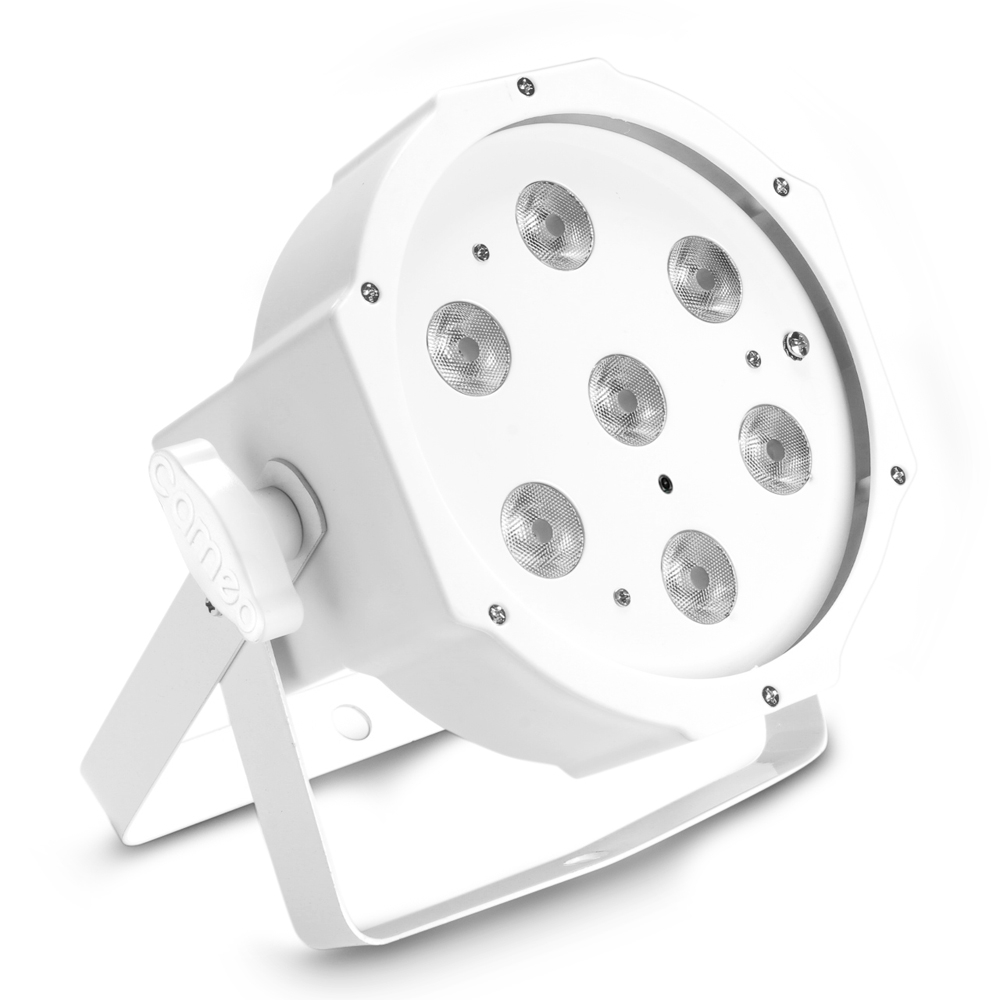

FLAT PAR 1 TW IR WH

7 x 4 W High-Power FLAT Tunable White LED PAR Light in white housing with IR remote control option

Nr artykułu: CLPFLAT1TWIRWH

Gwarancja: 24 miesiące

EAN: 4049521241321

Zakup w partiach: 1

Jednostka: Sztuka

Jednostka opakowaniowa: 4

Seria:Flat 1

Najważniejsze informacje o artykule:

  • High-power 7 x 4 W Tunable White LED Flat PAR
  • White colour temperature variable from 3,400 - 7,000 K
  • Lens optimized for uniform light intensity
  • Dimming with 4 selectable curves and halogen lamp-like or LED response
  • 20 Hz high-speed strobe
  • 4 DMX, automatic and sound control modes plus optional IR remote
  • DMX and IEC power in and out for daisy chaining up to 10 units
  • 4-button LED display for intuitive configuration
  • Flat, compact ABS housing
  • Low power consumption
  • Twin brackets included

Funkcje

Zimna biel
Zgodnie ze skalą temperatury barwowej w stopniach Kelwina (K) „zimna biel” jest bardzo jasnym, wyraźnym światłem w zakresie temperatury barwowej od 5000 do 10 000 K, ma lekko sztuczny charakter i może być łatwo łączona z wieloma kolorami podstawowymi.

Specyfikacje

Rodzaj produktu
Reflektory LED PAR
Typ
Do zastosowań wewnątrz
Spektrum kolorów
ciepła biel/zimna biel
Liczba diod LED
7
Typ diod LED
4 W
Częstotliwość odświeżania
3000
Kąt wiązki światła
25
Wejście DMX
3-stykowe XLR, męskie
Wyjście DMX
3-stykowe XLR, żeńskie
RDM
Nie
Protokoły
USITT DMX-512
Tryb DMX
1-kanałowy, 7-kanałowy, 3-kanałowy, 2-kanałowy
Funkcje DMX
Dimmer, CW, temperatura koloru (17 ustawień wstępnych), Dimmer Response, WW, krzywe ściemniania (8 ustawień wstępnych), Strobe
Bezprzewodowe złącze DMX
Nie
Strobe flash rate
1–20 Hz
Tryby Standalone
WW, CW, temperatura koloru (17 ustawień wstępnych), Strobe
Elementy obsługi
Value Up, Value Down, Mode, Enter
Wskaźniki
wyświetlacz LED
Zasilanie
100 V AC–240 V AC/50–60 Hz
Pobór mocy
22 W
How many devices can be connected (110 V)
7
How many devices can be connected (240 V)
10
Złącze zasilania
gniazdo urządzenia IEC, męskie
Power supply connection
gniazdo urządzenia IEC, damskie
Materiał obudowy
Tworzywo sztuczne ABS
Kolor obudowy
Biały
Stopień ochrony IP
IP20
Chłodzenie
konwekcyjne
Maksymalna temperatura otoczenia
0 °C - 40 °C
Natężenie oświetlenia
6000lx @ 1m
Strumień świetlny
1220 lm
Temperatura barwy
3400 - 7000
Szerokość
175 mm
Wysokość
180 mm
Długość
115 mm

Opis

FLAT PAR 1 TW IR WH

Equipped with seven 4 watt tunable white LEDs, the Cameo Flat 1 TW allows you to vary the white temperature from 3,400 to 7,000 K. This permits perfect adjustment from warm and subdued to cool and ultra bright tones to cover all scenarios that require white light. With high-efficiency convection cooling, the shallow-depth, 25° beam spread PAR light’s operation is absolutely noiseless making it an ideal choice for illumination tasks in shops, restaurants, bars and discotheques. Sporting a high 3,000 Hz refresh rate for flicker free performance, it is also perfect for motion picture and TV applications.

The Flat 1 TW provides 4 modes of DMX control, sound activation or automatic operation plus master, slave and standalone capability. It features a 4-button display for easy configuration, a high-speed strobe and dimming with a selection of 4 curves and halogen lamp-like or standard LED response. A convenient infrared remote control is available as accessory.

The compact ABS housing comes with adjustable twin brackets and sports 3-pin DMX plus IEC power inputs and outputs for daisy-chaining a maximum of 10 units. The Flat 1 TW is also available in black (item no. CLPFLAT1TW) or white versions (item no. CLPFLAT1TWWH).
