CL 200

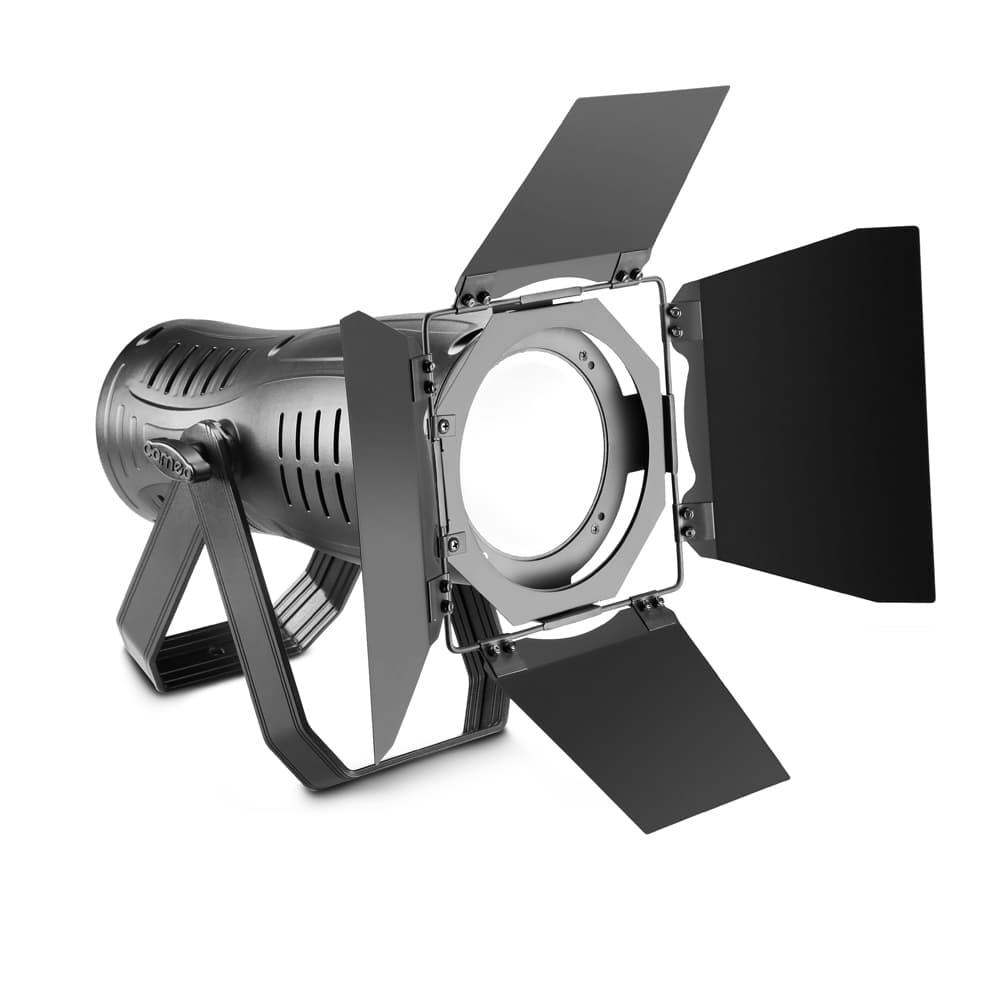

Spot with White 200 W COB-LED and Adjustable Colour Temperature

Nr artykułu: CLCL200

Gwarancja: 24 miesiące

EAN: 4049521263514

Zakup w partiach: 1

Jednostka: Sztuka

Jednostka opakowaniowa: 2

Seria:CL 200

Najważniejsze informacje o artykule:

The Cameo CL 200 is a high-performance spotlight equipped with a single 200 watt white COB LED that is tuneable from 3,200 K to 7,800 K. It sports a 25° beam spread and powerful 23,000 lux illuminance at 1 metre distance. The 17,500 Hz refresh rate ensures flicker-free performance making the fixture a perfect choice for motion picture and TV applications.

The CL 200 provides 6 modes of DMX control, sound activation and master dimming.

It includes a high-speed strobe function with adjustable flash rate from 1 - 30 Hz and iscapable of master, slave and standalone operation. The spotlight comes in a tough metal housing with a temperature controlled fan and 4-button display for easy configuration. 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors enable truble-free daisy chaining and power linking. The multi-voltage Cameo CL 200 operates on 100 - 240 V AC and includes a beam-shaping barn door.

Funkcje

Technologia LED
Diody LED idealnie nadają się do stosowania w systemach oświetleniowych: są jasne, emitują niewiele ciepła, mają długą żywotność i niskie zużycie energii. Ponadto systemy LED często ważą mniej niż tradycyjne systemy oświetleniowe.

Specyfikacje

Rodzaj produktu
Reflektory LED PAR
Typ
Do zastosowań wewnątrz
Spektrum kolorów
Biały
Liczba diod LED
1
Typ diod LED
200 W
Częstotliwość odświeżania
17500 Hz
Kąt wiązki światła
25 °
Wejście DMX
3-stykowe XLR, męskie
Wyjście DMX
3-stykowe XLR, żeńskie
Protokoły
USITT DMX-512
Tryb DMX
1-kanałowy, 2-kanałowy 1, 2-kanałowy 2, 4-kanałowy, 5-kanałowy, 9-kanałowy
Funkcje DMX
Master Dimmer, Strobe
Bezprzewodowe złącze DMX
Nie
Strobe flash rate
1-30 Hz
Tryby Standalone
Tryb Master / Slave, Sound Control
Elementy obsługi
Enter, Mode, Value Down, Value Up
Wskaźniki
wyświetlacz LCD
Zasilanie
100 V AC–240 V AC/50–60 Hz
Pobór mocy
200 W
How many devices can be connected (110 V)
5
How many devices can be connected (240 V)
5
Złącze zasilania
Blue Power Twist, male
Power supply connection
Grey Power Twist, female
Materiał obudowy
Metal
Kolor obudowy
Czarny
Stopień ochrony IP
IP20
Chłodzenie
wentylator sterowany temperaturą
Natężenie oświetlenia
23 000 lx w odległości 1 m
Strumień świetlny
7500 lm
Szerokość
170 mm
Wysokość
170 mm
Długość
380 mm
Waga
4,2 kg
Akcesoria (w zestawie)
barndoor

Akcesoria

Części zamienne

Do pobrania

Centrum pobierania
W naszym centralnym centrum pobierania znajdziesz wszystkie pliki do pobrania dotyczące marek, produktów i innych tematów związanych z obsługą.

Do centrum pobierania
