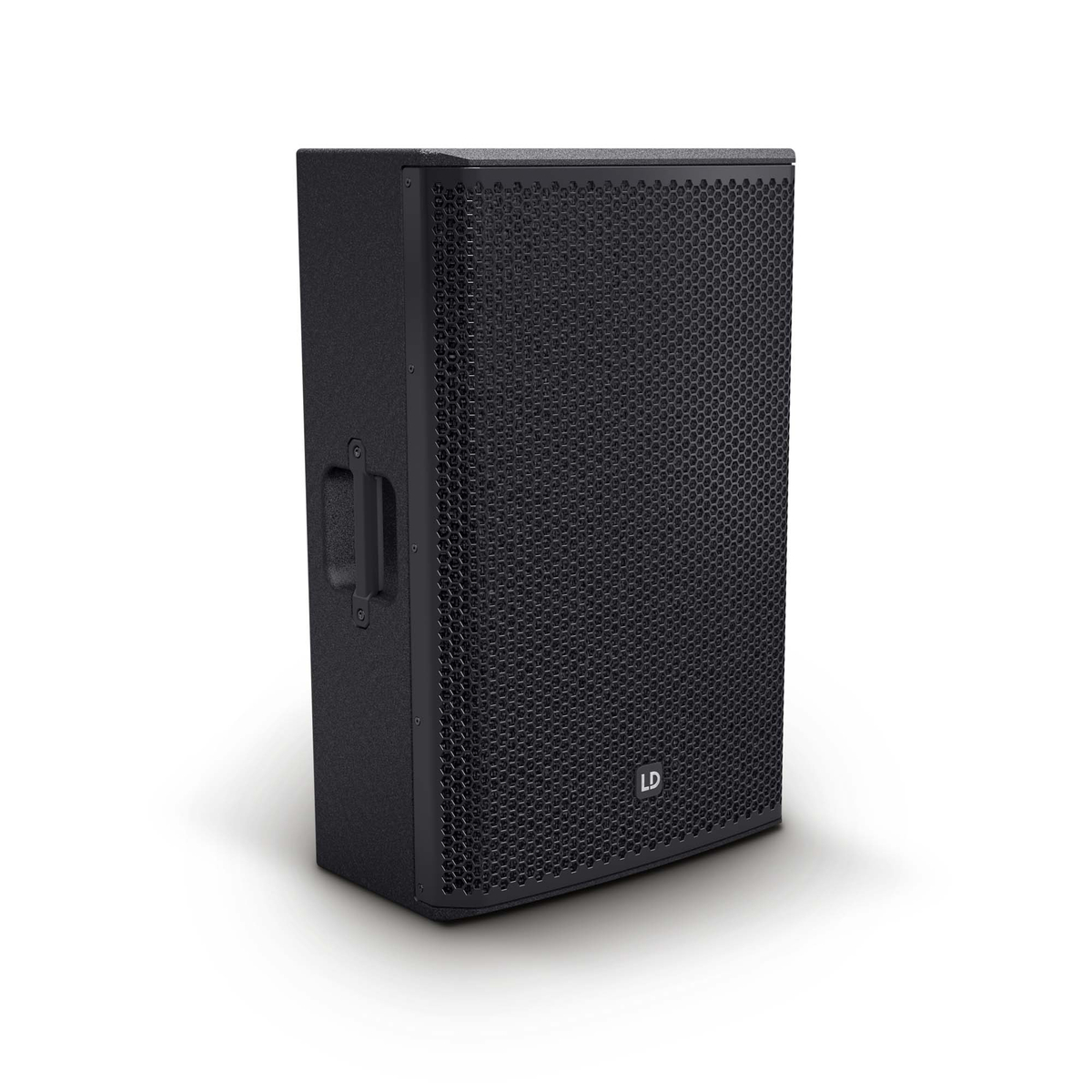

STINGER 15 G3

STINGER 15 G3

pasywny głośnik 15” PA

Nr artykułu: LDEB152G3

Gwarancja: 24 miesiące

EAN: 4049521206672

Zakup w partiach: 1

Jednostka: Sztuka

Jednostka opakowaniowa: 1

Seria:STINGER G3

Wersje:

Najważniejsze informacje o artykule:

  • Passive 2-way bass-reflex PA speaker
  • 500 watts RMS
  • 127 dB maximum sound pressure level
  • 15" Custom Woofer and BMS driver
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Birch plywood cabinet with extremely durable polyurea coating
  • Shock-resistant front grille to protect the loudspeaker
  • 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Specyfikacje

Typ
Passive
Obciążalność (Peak)
1000 W
Obciążalność (RMS)
500 W
SPL (1 W/1 m)
100 dB
Maks. Średni SPL (sine burst, BW, fullspace/1 m, THD≤10 %)
127 dB
Pasmo przenoszenia
50 Hz - 20000 Hz
Impedancja
8 Ω
System głośników
System 2-drożny
Kąt wiązki
Hor.: 90° / Vert.:50°
Kąt monitora
54 °
Liczba wejść
1
Typy złączy wejściowych
Standard speaker connector 4-pole male & speakON®
Liczba wyjść
1
Typy złączy wyjściowych
Standard speaker connector 4-pole male & speakON®
Kolor
Czarny
Rozmiar
15 "
Producent
Custom Made
Magnes
Ferryt
Cewka drgająca
3 "
Rozmiar sterownika
1 "
Producent
BMS
Magnes
Ferryt
Cewka drgająca
1 "
Projekt
Bass reflex
Liczba uchwytów
1
Typ montażu
M10 do SuperClamp
Kołnierz
36 mm (0°/5°)
Materiał obudowy
Sklejka brzozowa
Grubość materiału
15 mm
Materiał przedniej kratki
Aluminium
Szerokość
480 mm
Wysokość
737 mm
Głębokość
455 mm
Waga
25.7 kg
Dołączone akcesoria
Kabel sieciowy

Opis

STINGER 15 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The STINGER® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
