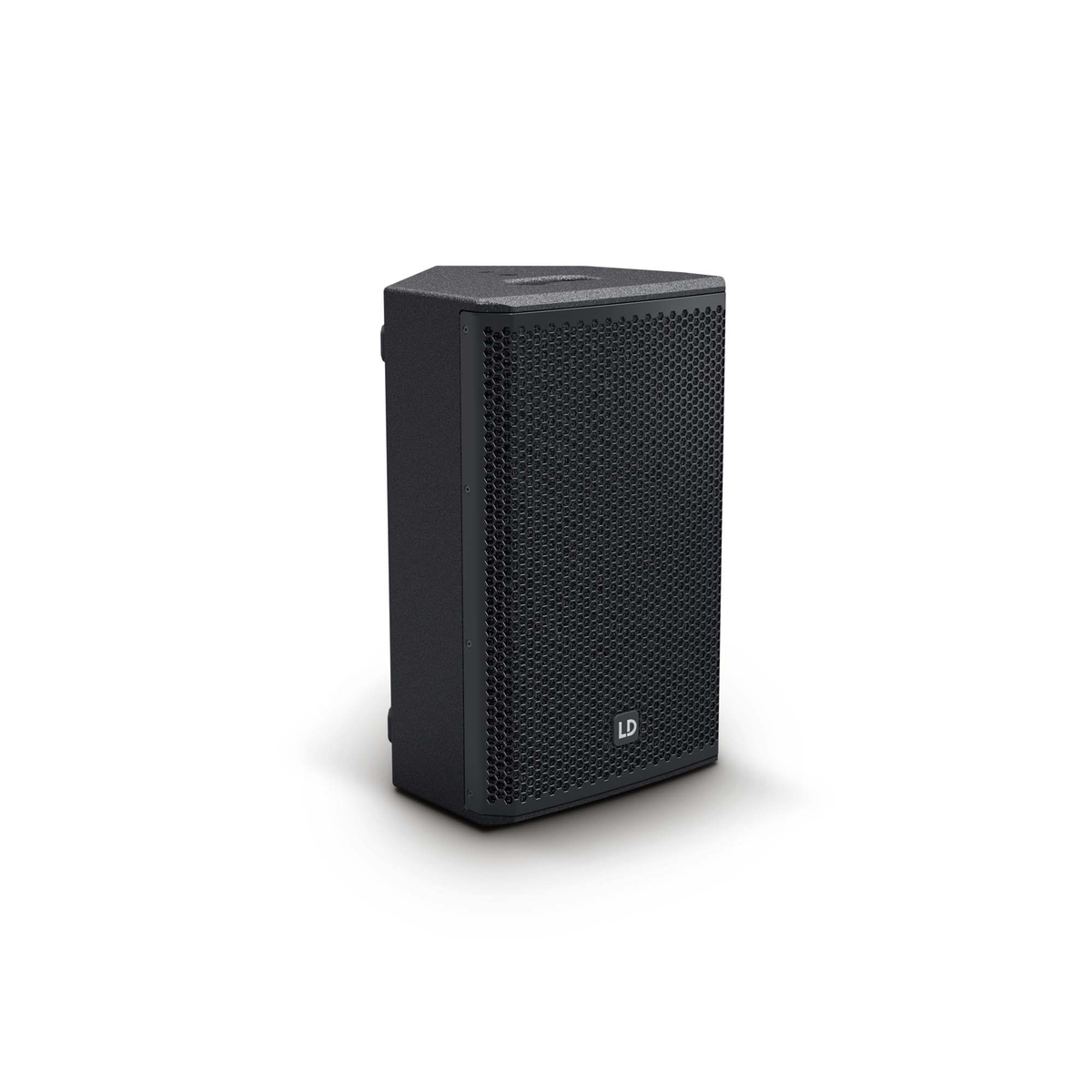

STINGER 10 A G3

STINGER 10 A G3

Active 10" 2-way bass-reflex PA Loudspeaker

Nr artykułu: LDEB102AG3

Gwarancja: 24 miesiące

EAN: 4049521206726

Zakup w partiach: 1

Jednostka: Sztuka

Jednostka opakowaniowa: 1

Seria:STINGER G3

Wersje:

Najważniejsze informacje o artykule:

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the STINGER® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Specyfikacje

Type
Active
Szczytowa moc wyjściowa
600 W
Moc wyjściowa RMS
300 W
Klasa wzmacniacza
Class D
Maks. Szczyt SPL
127 dB
Pasmo przenoszenia
65 - 20 000 Hz
System głośników
System 2-drożny
Kąt wiązki
Hor.: 90° / Vert.:50°
Kąt monitora
54 °
Liczba wejść
2
Typy złączy wejściowych
RCA żeńskie
Liczba wyjść
1
Output connector types
XLR 3-pole male
Funkcje ochronne
Limiter wielopasmowy, Przegrzanie, Przepięcie, Przeciążenie
Kolor
Czarny
Liczba wejść liniowych
2
Typ złącza Line-In
XLR combo socket
Nom. Czułość (< 1% THD, 1 kHz, max. Gain)
-9 dBu
Liczba wyjść liniowych
1
Line outputs connector type
XLR 3-pole male
Rozmiar
10 "
Średnica zewnętrzna
254 mm
Magnes
Ferryt
Cewka drgająca
2 "
Rozmiar sterownika
1 "
Magnes
Ferryt
Cewka drgająca
1 "
Napięcie robocze
100 V AC - 240 V AC / 50 - 60 Hz
Typ zasilania
Zasilacz impulsowy (SMPS)
Mains connector
Standard speaker connector 4-pole male & speakON®
Projekt
Bass reflex
Liczba uchwytów
1
Typ montażu
M10 do SuperClamp
Kołnierz
36 mm (0°/5°)
Materiał obudowy
Sklejka brzozowa
Grubość materiału
12 mm
Materiał przedniej kratki
Aluminium
Temperatura otoczenia
0 - 40 °C
Maksymalna wilgotność powietrza (bez kondensacji)
80 %
Szerokość
325 mm
Wysokość
527 mm
Głębokość
318 mm
Waga
12,7 kg
Dołączone akcesoria
Kabel sieciowy
