Cod. articolo: NAC3MTRUE1L
Garanzia: 12 mesi
EAN: 7613187023330
Scala indicizzata: 1
Unità: Pz
Unità di imballaggio: 50
Versioni:
Articolo in evidenza:
- The original TRUE1® connector
- Heavy duty sealed power connector for a harsh and demanding environment
- Lockable single phase connector
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- IP65 and IP67 (mated or with closed cap)
- Easy and reliable twist lock system
- Uses high impact UV-resistant materials
- Extremely robust and reliable
- UL and CSA certified according to UL 60320-1 and CSA 22.2 No. 60320-1
- True mains connector with breaking capacity (CBC)
- Unique Neutrik® locking bushing and strain relief for cable diameters from 10 mm to 16 mm
Specifiche
Tipo di spina
Mains plug device outdoor male & TRUE1®
Materiale del cabinet
Poliammide
Materiale del gommino
Poliammide
Diametro del cavo adatto
10 mm - 16 mm
Sezione del cavo adatta
2.5 mm²
Classe di protezione
IP67
Infiammabilità (UL 94)
V-0
Lunghezza
82.5 mm
Diametro
26.8 mm
Descrizione

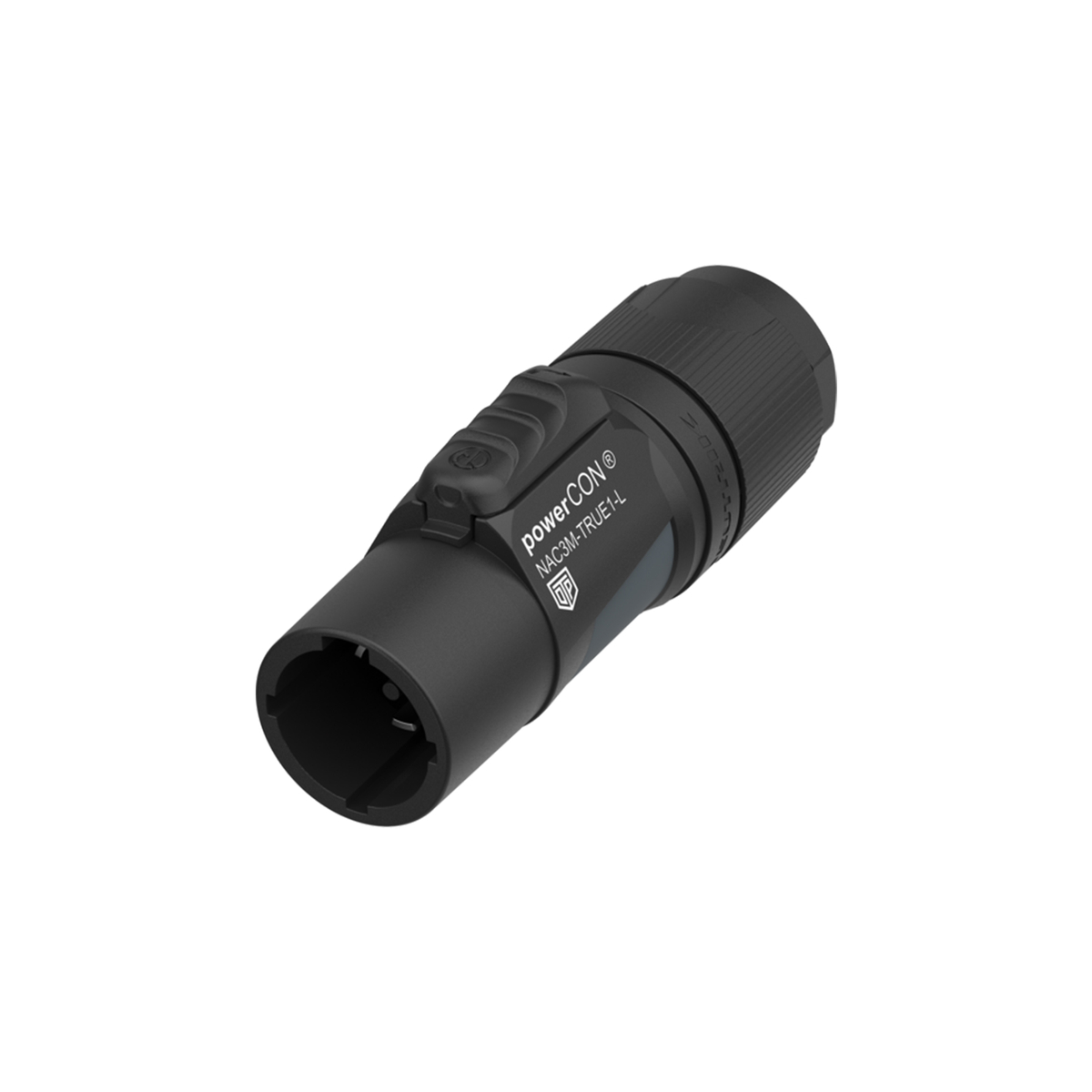

NAC3M-TRUE1-L
The powerCON TRUE1® is a locking true mains connector for harsh and demanding applications. It replaces the appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
