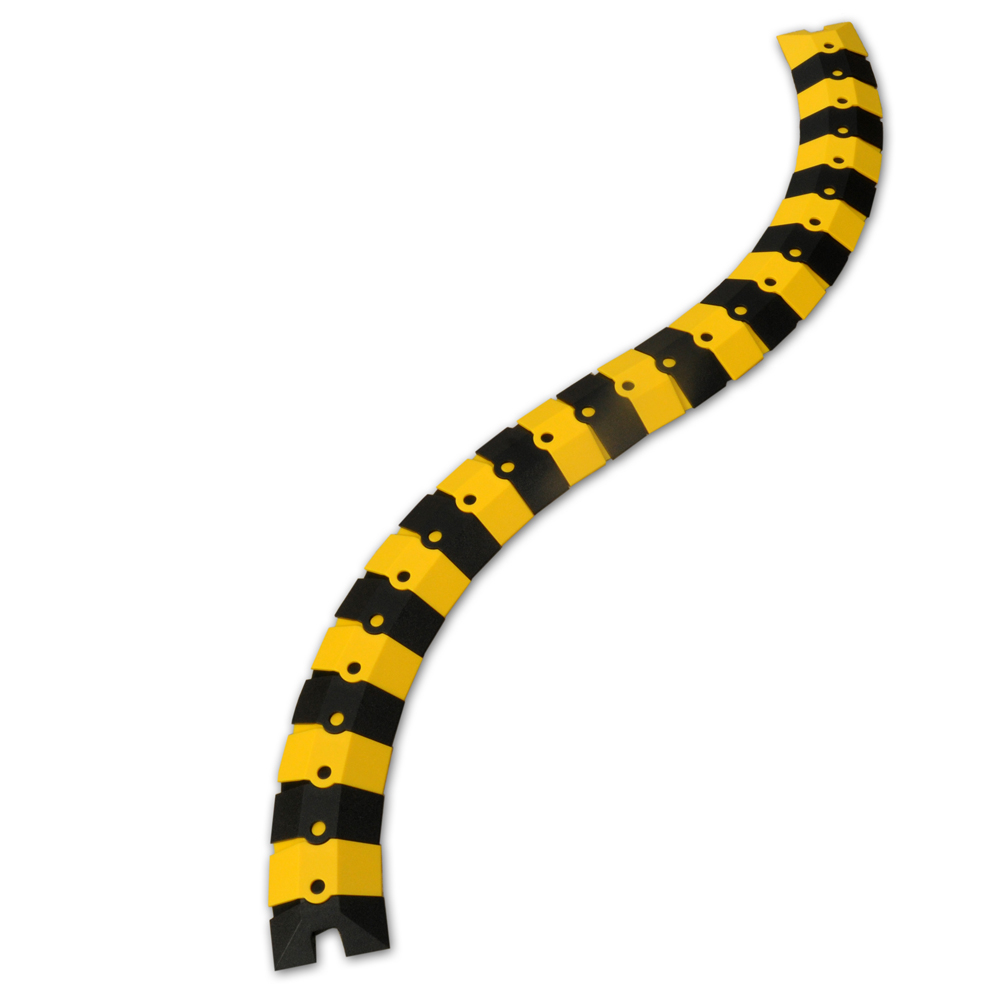

ULTRA-SIDEWINDER 732cm BLK/YEL
flexible cable duct yellow/black 7.3 m - with end caps
Cod. articolo: 851820
Garanzia: 24 mesi
EAN: 4049521161223
Scala indicizzata: 1
Unità: Pz
Unità di imballaggio: 1
Serie:Ultra-Sidewinder SMALL
Articolo in evidenza:
Protect Cords and Cables and avoid dangerous Tripping Hazards
The Ultra-Sidewinder Cable Protection System™ is a simple and smart solution for protecting cables run across a floor. The design articulates left and right —allowing the system to turn corners and adapt to the layout of the room, while maintaining full protection for the cables and trip protection for pedestrians. Cables can be left in the system for ultimate portability, or left in place indefinitely. There is no longer a compromise between safety and flexibility.
- Articulating pieces offer flexible design - curves, corners and s-curves are easily made while maintaining a completely flat profile.
- Modular design makes it easy to reconfigure, repair, and replace targeted segments, even while the cable remains connected.
- Simple "snap in" assembly - no tools or cutting required.
- Fully customizable length.
- Available in yellow/black (851800), black (851802) and brown (851804).
- Flame classification UL94 HB (harmonized with IEC 60695-11-10)
Specifiche
Tipo di prodotto
Pedane passacavi
Tipo
A 1 canali
Colore
Giallo/nero
Lunghezza
7320 mm
Larghezza
76 mm
Altezza
19 mm
Numero canaline
1
Larghezza canalina 1
19 mm
Altezza canalina 1
9,5 mm
Materiale
Plastica ABS
Carico max
140.6 kg per cm², can also be driven over with a lorry (14t)
Resistenza ai prodotti chimici
alcohol, mineral oil
Classe di infiammabilità
B2
Range di temperatura
-40 - 49 °C
Peso
4,5 kg
Particolarità
elastic tongues on the underside fix the cable and avoid that the cable protector slips when crossed, ideal for cables that must remain moveable (e.g., studio lamps in photo studios)
