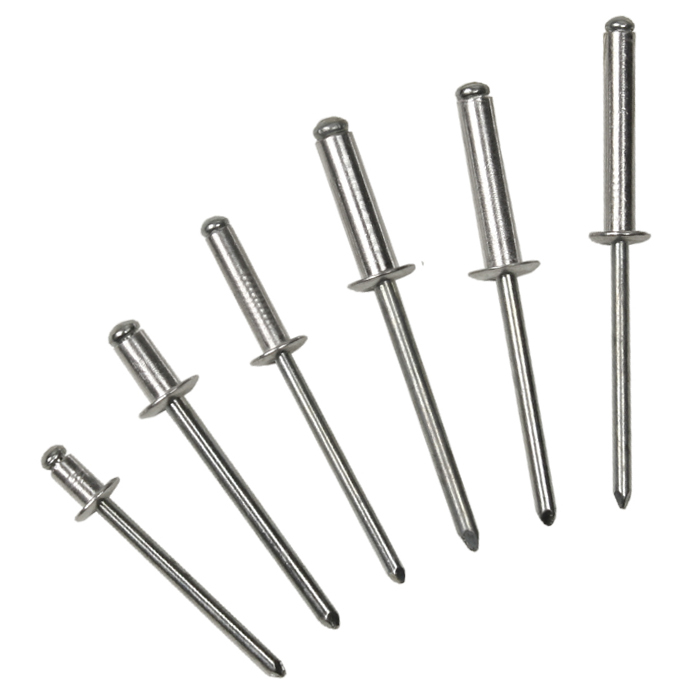

Rivetti Ciechi Standard 4,8 x 24,0 mm

Cod. articolo: 55924824

EAN: 8423552000465

Scala indicizzata: 200

Unità: Pz

Unità di imballaggio: 1200

Versioni:

Articolo in evidenza:

The blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and to withstand the most demanding ambient conditions.

Our standard rivets are breakstem blind rivets. A versatile rivet with a large clamping range, suitable for connecting a wide range of materials

This connecting element ensures strong and secure connection.

The Bralo standard rivet is the epitome of adaptability and reliability.

Other rivet versions for special applications and requirements available in the shop.

Specifiche

Tipo di rivetto
Rivetto standard
Materiale del rivetto
Alluminio
Rivestimento del rivetto
Lega di alluminio-magnesio (AlMg 3,5)
Profilo della testa
Testa bombata
Materiale del mandrino
Acciaio
Rivestimento a mandrino
Galvanizzato
Colore
Argento
Cesoia
1.850 N
Tensione
2.600 N
Lunghezza del rivetto
24 mm
Diametro del rivetto
4,8 mm
Campo di serraggio
14 - 17 mm
Diametro della testa
9,5 mm
Altezza della testa
1,5 mm
Diametro del mandrino
2,65 mm
Peso
3 kg
