55914817 BLK

55914817 BLK

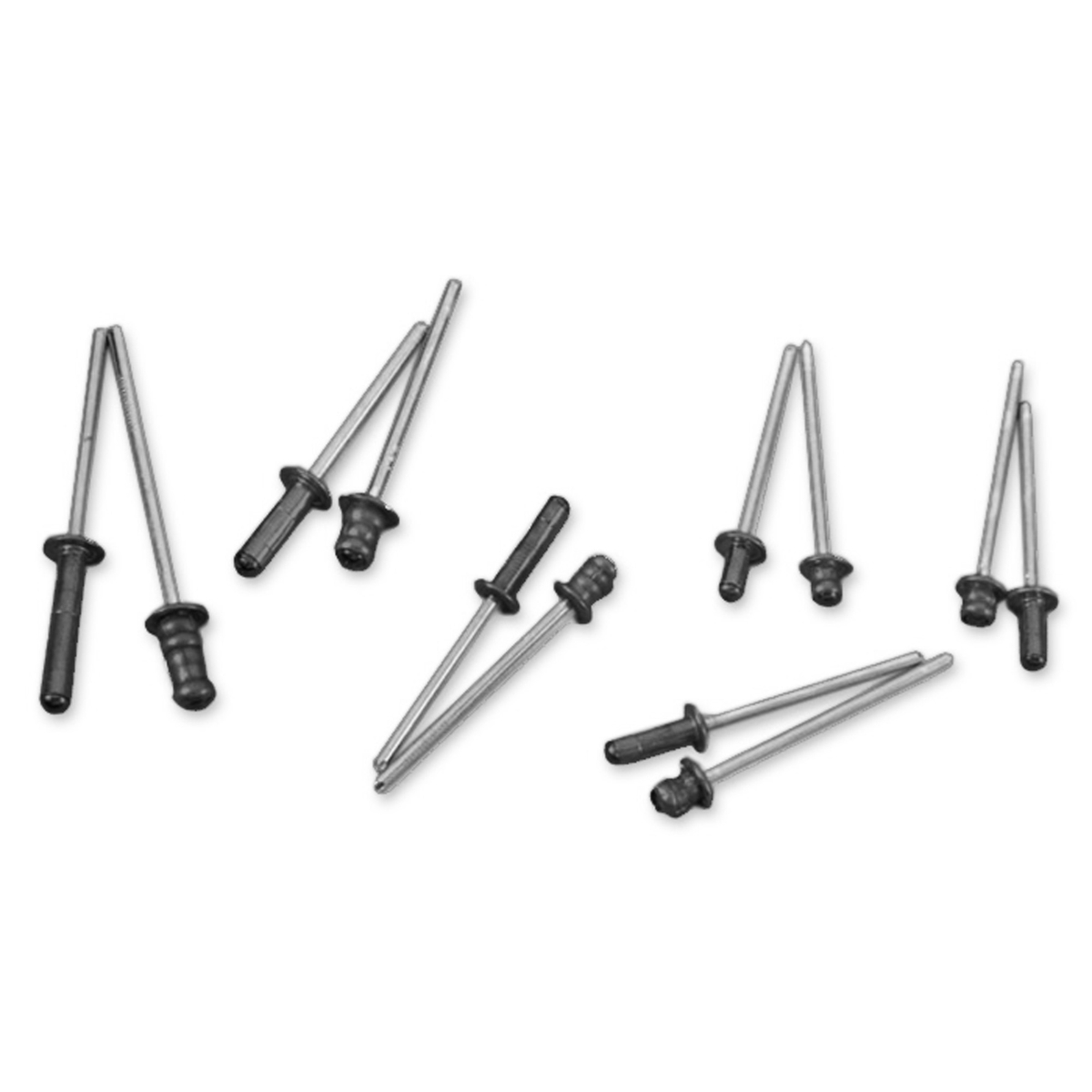

Rivetto cieco in alluminio "MULTIGRIP" 4,8 x 16,5 mm nero

Cod. articolo: 55914817BLK

EAN: 8423552009116

Scala indicizzata: 250

Unità: Pz

Unità di imballaggio: 1500

Versioni:

Articolo in evidenza:

The Bralo Multigrip blind rivet is synonymous with for adaptability and reliability.

This blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and also to withstand the most demanding ambient conditions.

This is a fixing element made of an aluminium alloy, capable of covering a large clamping area. This means that you can use only one type of rivet to replace several standard rivets and reduce storage costs at the same time.

Due to the special wide fastening properties on the blind side, the load and torque forces are evenly distributed.

The Bralo Multigrip blind rivet provides a uniform riveting process, a robust and high-quality fixing which is resistant to dynamic influences.

Can be used to connect different materials such as metal to metal, aluminium, steel, stainless steel, metal to plastic or plastic to plastic Other rivet versions for special applications and requirements available in the shop.

Specifiche

Tipo di rivetto
Rivetto cieco Multigrip
Materiale del rivetto
Alluminio
Rivestimento del rivetto
Lega di alluminio-magnesio (AlMg 3,5)
Profilo della testa
Testa bombata
Materiale del mandrino
Acciaio
Rivestimento a mandrino
Galvanizzato
Colore
Nero
Cesoia
1.470 N
Tensione
2.400 N
Lunghezza del rivetto
16,5 mm
Diametro del rivetto
4,8 mm
Campo di serraggio
6,5 - 13 mm
Altezza della testa
1,8 mm
Diametro del mandrino
2,75 mm
Peso
3 g
