Cod. articolo: NL4MPXXUC
Garanzia: 12 mesi
EAN: 4049521920769
Scala indicizzata: 1
Unità: Pz
Unità di imballaggio: 100
Articolo in evidenza:

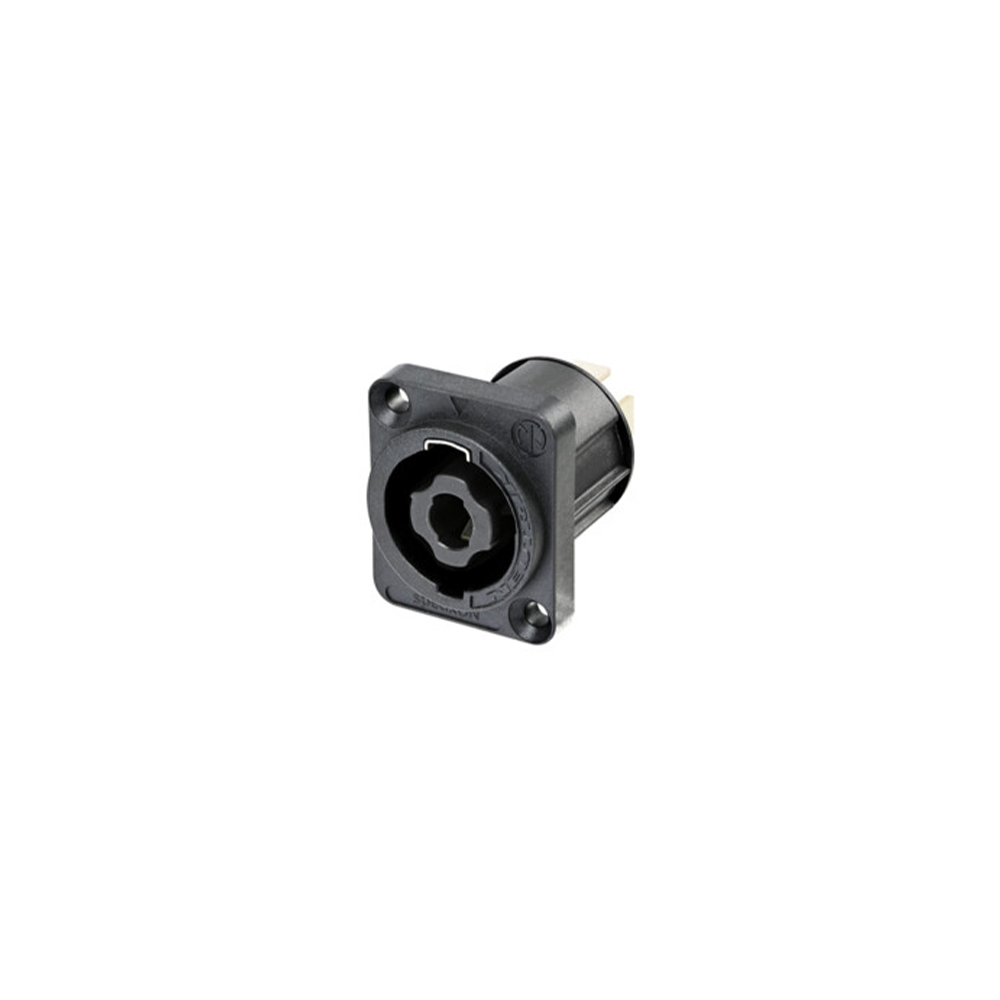

4-pole chassis connector for 30 A rms continuous current load. Black D-shaped flange, 1/4" flat tabs.
Due to the component certification according to IEC 61984, this connector fulfills the device standard IEC 62368-1.
The speakON chassis connectors have established themselves as the standard for loudspeaker / amplifier chassis connectors. They have a unique metal locking system that only establishes contact after complete locking. The speakON chassis connectors are robust and versatile.
Specifiche
Plug type
Standard speaker connector 4-pole male & speakON®
Connection type
Soldering contacts
Materiale del telaio
Poliammide
Lunghezza
36 mm
Larghezza
26 mm
Altezza
31 mm
