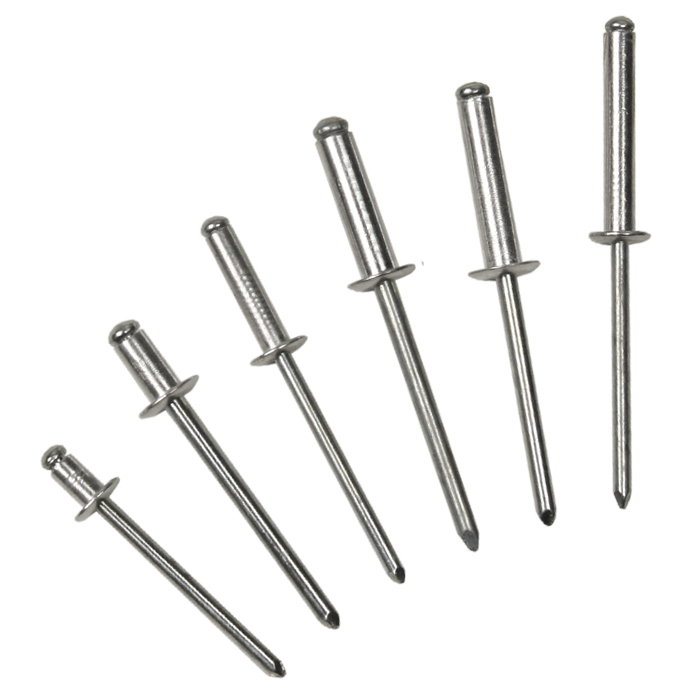

Rivetti Ciechi Standard 5,0 x 25,0 mm

Cod. articolo: 55925025

EAN: 8423552000618

Scala indicizzata: 200

Unità: Pz

Unità di imballaggio: 1200

Versioni:

Articolo in evidenza:

The blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and to withstand the most demanding ambient conditions.

Our standard rivets are breakstem blind rivets. A versatile rivet with a large clamping range, suitable for connecting a wide range of materials

This connecting element ensures strong and secure connection.

The Bralo standard rivet is the epitome of adaptability and reliability.

Other rivet versions for special applications and requirements available in the shop.

Specifiche

Tipo di prodotto
Dispositivi di fissaggio
Tipo
Chiodi
Ø rivetto
5 mm
Lunghezza rivetto
25 mm
Ø testa
9,5 mm
Altezza testa
1,6 mm
Ø mandrino
2,5 mm
Campo di serraggio
16,0 A - 21,0 mm
Capacità di carico fermo
2150 N
Capacità di carico trazione
3100 N
Materiale rivetto
Alluminio
Lega rivetto
AlMg 3,5
Materiale mandrino
acciaio
Superficie mandrino
zincato
Peso
0,003 kg
