55924012

55924012

Rivetti Ciechi Standard 4,0 x 12,0 mm

Cod. articolo: 55924012

EAN: 8423552000298

Scala indicizzata: 500

Unità: Pz

Unità di imballaggio: 3000

Versioni:

Articolo in evidenza:

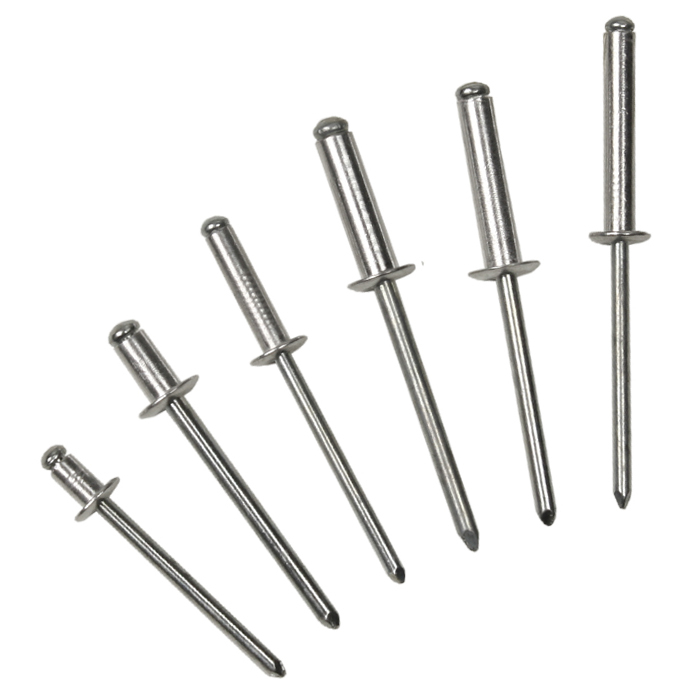

The blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO© blind rivets provide a robust and secure solution for a wide range of fixing system requirements. They have been designed to fulfill the highest quality standards and to withstand the most demanding ambient conditions.

Our standard rivets are breakstem blind rivets. A versatile rivet with a large clamping range, suitable for connecting a wide range of materials

This connecting element ensures strong and secure connection.

The Bralo standard rivet is the epitome of adaptability and reliability.

Other rivet versions for special applications and requirements available in the shop.

Specifiche

Tipo di prodotto
Dispositivi di fissaggio
Tipo
Chiodi
Ø rivetto
4 mm
Lunghezza rivetto
12 mm
Ø testa
8 mm
Altezza testa
1,4 mm
Ø mandrino
2,2 mm
Campo di serraggio
6,5 - 8,5 mm
Capacità di carico fermo
1250 N
Capacità di carico trazione
1800 N
Materiale rivetto
Alluminio
Lega rivetto
AlMg 3,5
Materiale mandrino
acciaio
Superficie mandrino
zincato
Peso
0,00187666666666666667 kg
