Cameo
FLAT PRO® 12 G2

12 x 10 W RGBWA LED Outdoor Spotlight

FLAT PRO® 12 G2

Price on request

Item No.:
CLPFLATPRO12G2
EAN:
4049521479908
Guarantee:
24 Months
Unit:
piece
Series:
  • 12 x 10-watt 5-in-1 RGBWA LEDs with 4,300 lm luminous flux for warm full and pastel colours
  • IP-65 certified for permanent outdoor use
  • Noiseless & flicker-free operation for theatres, broadcasting & film
  • Professional Neutrik True1-compatible inputs/outputs & IP65 DMX input/output sockets
  • Robust, flat and compact metal housing
  • Patented EZChase® DMX Delay: running lights effect without DMX control
  • OLED display with...
Read on
FLAT PRO® 12 G2
FLAT PRO® 12 G2
12 x 10 W RGBWA LED Outdoor Spotlight

Price on request

Specifications

Specifications

DMX512
Environment-friendly
Protection class IP65
LED technology
Master & slave
Standalone mode
Strobe
5-in-1 LED
RGBWA
RDM
#feature_title_cameoicondustproof#
#feature_title_cameoiconflickerfree#
#feature_title_cameoicontunablewhite#
General
Product type
LED PAR Lighting
Type
PAR
Colour spectrum
RGBWA
Number of LEDs
12
LED type
10 W
LED PWM Frequency
650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
Dispersion
30 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
11-channel, 14-channel, 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2
DMX Functions
colour fade, Colour presets, Colour temperature correction, Dimmer, Dimmer Fine, DMX Delay, RGBWA, Speed Selection, strobe, System settings
Control
DMX512, RDM
Standalone modes
Auto programs, CCT, Colour presets, Loop, Static, User Colours
Controls
Down, Enter, Mode, Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
110 W
Power connector
Neutrik True One
Max. output current
11 A
Housing material
Metal
Cabinet colour
Black
Protection class IP
IP65
Cooling
Convection
Luminous flux
4300 lm
Calibration modes
calibrated, RAW, User
Fuse
F3A / 250 V
Operating Temperature
-15 - 40 °C
Relative Humidity
< 80 %, not condensing
Width
292 mm
Height
300 mm
Length
156 mm
Weight
6 kg
Accessories (included)
Power cord

Description

Set up, connect, finished! The FLAT PRO® 12 G2 LED PAR spotlight offers you a professional outdoor allrounder that saves you a lot of work under adverse conditions: whether as a calibrated and compact IP65 uplight fixed to a building facade, as a noiseless light source in theatres or as an effects light for live shows.

Its patented EZChase® DMX delay feature allows you to create running lights effects without an external controller. This saves on DMX channels as well as time and patience. You can also rely on it to always provide consistent ambient lighting. Regardless of how many FLAT PRO G2s you connect together, the integrated calibration chip ensures that full and pastel RGBWA colour spectrum colours can be used without any deviations.

The FLAT PRO® 12 G2 comprises 12 x 10-watt 5-in-1 RGBWA LEDs for an impressive luminous flux of 4,300 lm. Thanks to its adjustable PWM frequency (650 Hz to 25 kHz), there's no need to worry about flickering LEDs when dimming for theatre, TV studios, film sets or light festivals.

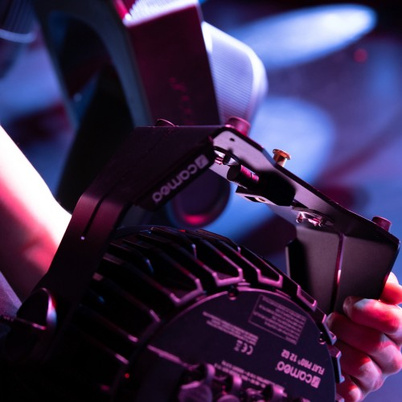

An outdoor IP65 flat PAR spotlight is only as good as its handling. That's why we've optimised many points of the series' design. The handle is inconspicuously integrated into the compact metal housing, while the OLED display with touch-sensitive keys delivers fast and simple operation. Every seconds counts when working in wind and rain. The redesigned convection cooling and the professional connection options with Neutrik True-compatible inputs and outputs and 3-pin IP65 DMX sockets all offer the highest possible reliability.

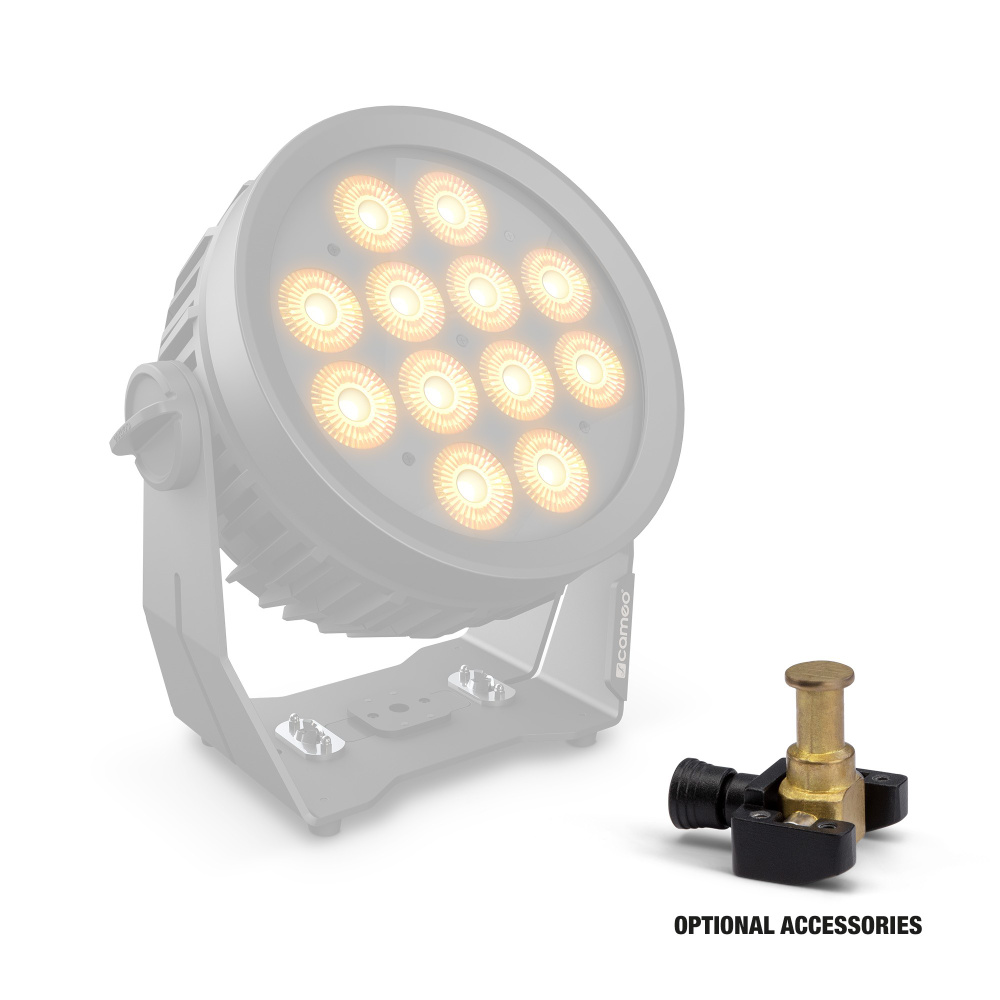

For even greater installation flexibility, the FLAT PRO® 12 G2 can also be optionally retrofitted with a fold-out 16-mm TV spigot that uses patented SPIN16® technology.

The versatile FLAT PRO® 12 G2 IP65 LED PAR spotlight is ideal for all lumen beings looking for an uncompromising way to express their passion for lighting in the great outdoors.
