Cameo

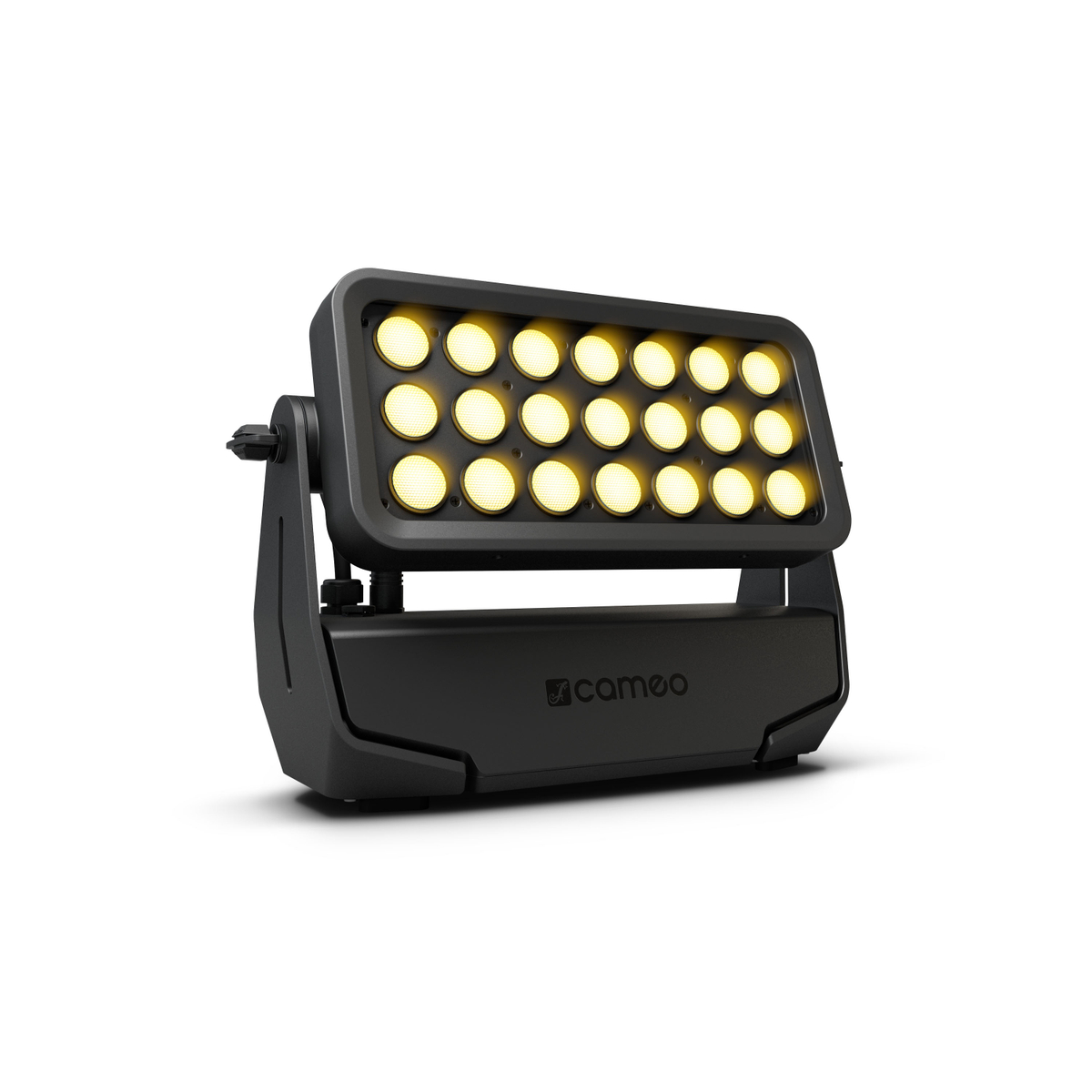

ZENIT® B200

Battery Powered Outdoor Wash Light

ZENIT® B200

Price on request

Item No.:
CLZB200
EAN:
4049521306136
Guarantee:
24 Months
Unit:
piece
Series:
  • 21 x 15 W RGBW LEDs with 6,600 lm total output for uniform colour mixes
  • Long-life super capacity lithium-ion battery for reliable operation
  • Battery Management System prevents overcharging and exhaustive discharge
  • 21° beam and 40° field angles without diffuser
  • Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling
  • Built-in 2.4 GHz W-DMX™...
Read on
ZENIT® B200
ZENIT® B200
Battery Powered Outdoor Wash Light

Price on request

Specifications

Specifications

DMX512
Environment-friendly
Protection class IP65
Infrared remote control
LED technology
Master & slave
RGB additive colour system plus white LEDs
Standalone mode
General
Product type
LED Outdoor Wash Light
Type
ZENIT
Colour spectrum
RGBW
Number of LEDs
21
LED type
15 W
Average LED lifetime
50000 hrs.
Refresh rate
Adjustable: 800Hz, 1200Hz, 2000Hz, 3600Hz, 12000Hz, 25000 Hz
Dispersion
21° Beam, 40° Field (without diffusor) °
Lens
PE and tempered glass
DMX input
5-pin IP65
DMX output
5-pin IP65
DMX mode
10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
DMX Functions
Auto programs, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, strobe
Standalone modes
Auto programs, colour macro, Master / Slave mode, Settings, Static, system info, Tunable White, User Colours
Controls
Enter, Mode, Value Down, Value Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
180 W
power factor
0.99 PF (120V) / 0.96 PF (230V)
Power connector
IP65
Power supply connection
IP65
Housing material
Aluminium
Cabinet colour
Black
Protection class IP
IP65
Battery capacity
298 Wh
Battery operation time at maximum load
up to 24 hours
Charging time
4h
Cooling
Convection
Luminous flux
6600 lm
Efficiency
25 lm/W
Operating Temperature
0 - 40 °C
Accessories (included)
1 x omega mounting, Power cord
Other features
ETL certified
Dimensions including Mounting Bracket
Width
377 mm
Length
240 mm
Height
256 mm
Weight
8 kg

Description

With built-in wireless DMX, battery operation and IP65 rating, the Cameo ZENIT® B200 is ready for demanding indoor and outdoor lighting applications. The highly professional wash light is equipped with twenty-one 15 W RGBW LEDs with a 50,000 hour lifetime and powerful 6,600 lm output for brilliant, uniform colours. A polyethylene and tempered glass lens provides a 21° beam spread.

For maximum versatility, the ZENIT® B200 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers and a 4-way barn door are available as dedicated accessories.

In addition to RDM, seven modes of DMX and IR remote or manual control via the fixture's display the ZENIT® B200 incorporates a 2.4 GHz W-DMX™ transceiver. Developed by Wireless Solution Sweden AB, W-DMX™ has become the inofficial standard for professional wireless lighting control. The luminaire's super capacity lithium-ion battery is providing reliable RGBW mode performance up to 24 hours from a single charge, and the smart battery management system prevents overcharging and exhaustive discharge for extended battery life.

Sporting six selectable PWM frequencies up to 25,000 Hz and convection cooling for flicker-free and noiseless performance, the ZENIT® B200 is perfectly suitable for motion picture and TV applications. It utilises high-resolution 16-bit colour mixing and dimming and includes a choice of dimming curves with adjustable response plus temperature correction. The aluminium housing features a bright 4-button OLED display for easy configuration. The ZENIT® B200 can also be used for emergency lighting when connected to a DC outlet and comes with an IR remote control, omega mounting bracket and power cord.
