Item no.: NC5MDX-TOP
Guarantee: 12 months
EAN: 7613187011931
Sliding scale: 1
Unit: Piece
Packaging unit: 50
Item highlights:
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
- Uses high impact UV-resistant materialsMaintains sealing when in use and when disconnected
Specifications
Product type
Plugs and Connectors
Type
XLR
Poles
5
Gender
male
Color
Black
Contacts
brass
Connection type
solder contacts
Capacitance between contacts
4 pF
Resistance
5 m Ohm(s)
insulating resistance
> 10 G
Rated Voltage
< 50 V
Rated current per contact
16 A
Housing
polyamide
Chassis shape
D
Width
30.4 mm
Height
37.4 mm
Depth
22,6 mm
Diameter
23.8 mm
Fire protection class
UL94 V-0
Protection class IP
IP65
Temperature range
- 30 °C / + 80 °C °C
Weight
0,015 kg
Description

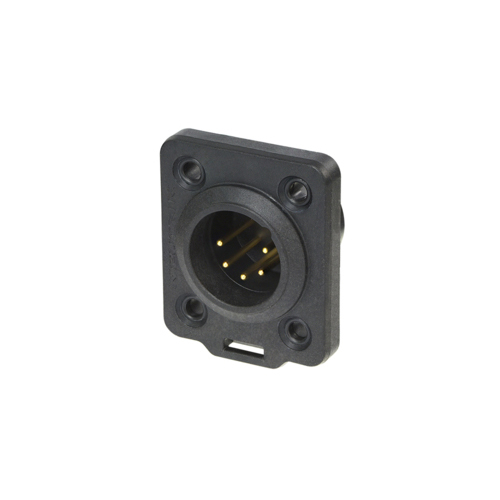

NC5MDX-TOP
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard.
