Item no.: NC3FAV
Guarantee: 12 months
EAN: 4049521616396
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Item highlights:
- Smallest XLR chassis connector, highest packing density
- Female tulip contacts
- Housing Flammability UL94 V-0
- Plastic housing, steel latch
- Polished contact area, hard gold plated
Specifications
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
female
Contacts
Bronze
Connection type
XLR (3-pin)
Housing
polyamide
Color
Black
Width
25.3 mm
Height
25.3 mm
Depth
24 mm
Weight
0,009 kg
Description

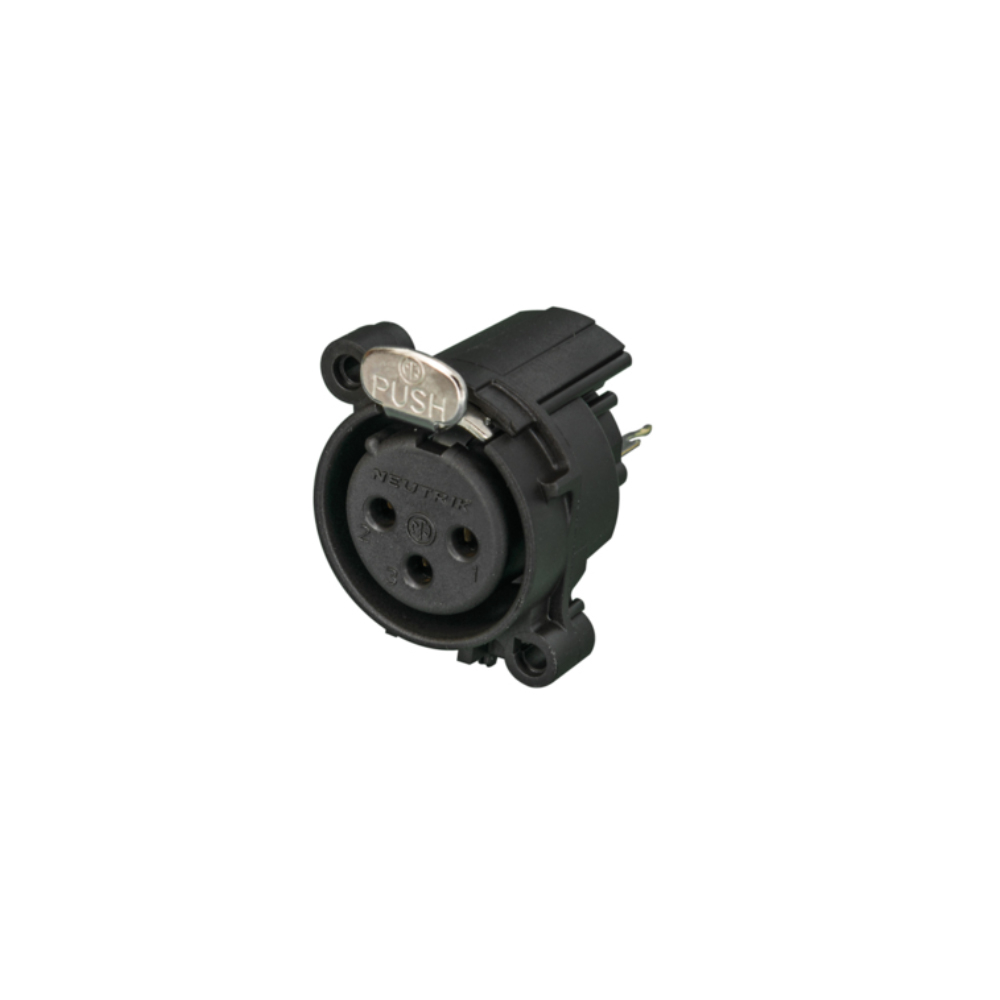

NC3FAV
State-of-the-art panel-mount sockets in a round plastic housing.These sockets with the smallest installation dimensions offer a very high packing density (23 mm between the connector centres), newly designed, hard gold-plated tulip contacts and polished contact points. UL recognised component.
