Item no.: NC3FDLXB
Guarantee: 12 months
EAN: 4049521362286
Sliding scale: 1
Unit: Piece
Packaging unit: 100
Versions:
Item highlights:
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Specifications
Product type
Plugs and Connectors
Type
XLR Connectors
Poles
3
Gender
female
Contacts
Bronze
Connection type
solder contacts
Housing
Zinc die-cast
Width
26 mm
Height
31 mm
Depth
32.66 mm
Weight
0,03119 kg
Description

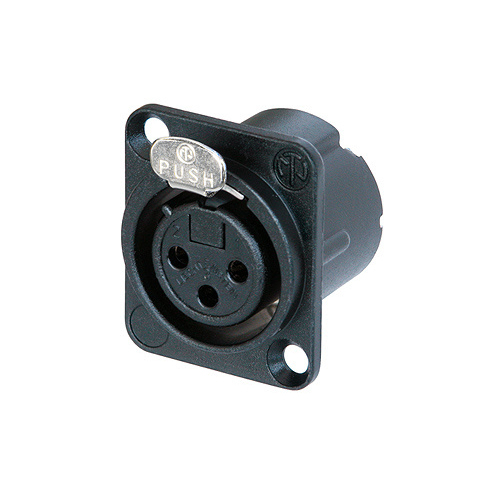

NC3 FD-LX-B
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
