Item no.: LDU508CST
Guarantee: 24 months
EAN: 4049521204753
Sliding scale: 1
Unit: Piece
Packaging unit: 12
Series:U500
Versions:
Item highlights:

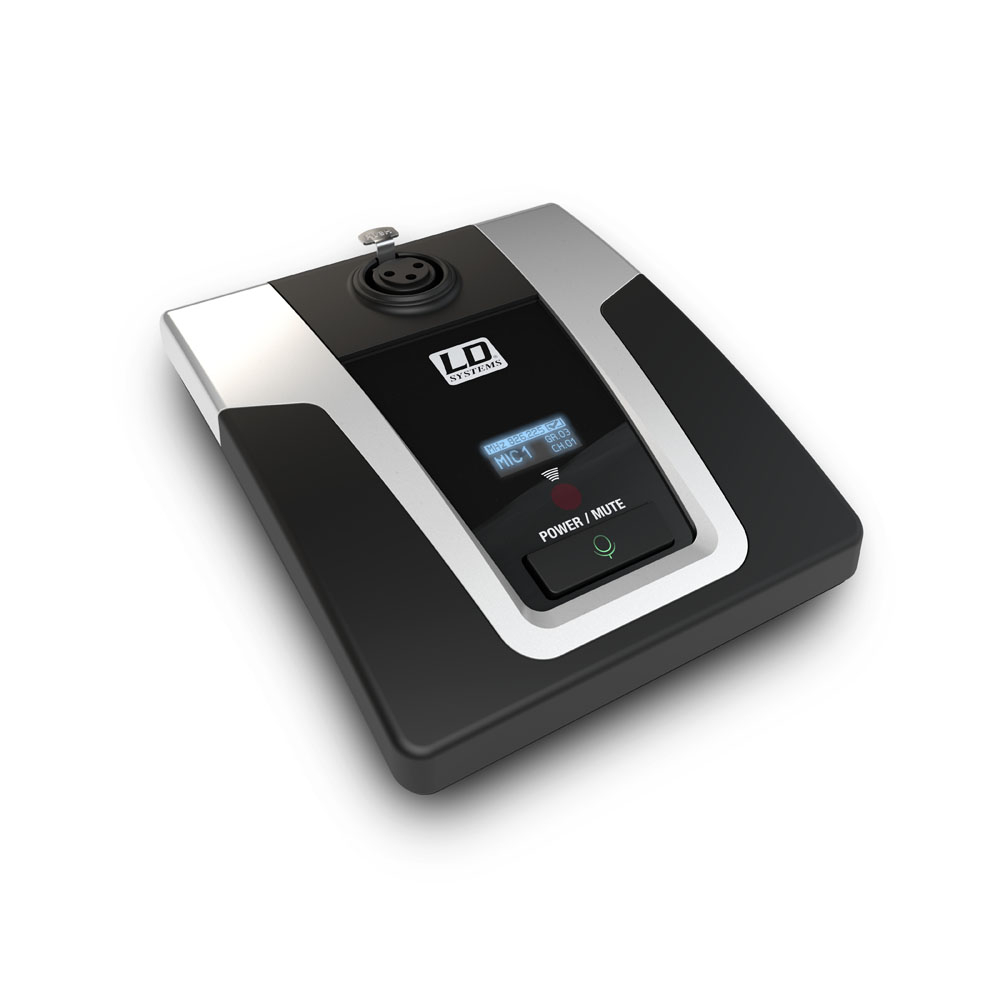

- U 500® conference system microphone base transmitter
- Adjustable gain and 100 Hz low cut
- High contrast OLED display
- 3-pin XLR microphone input
Specifications
Product type
Microphone Accessories
Transmission frequency range
823 - 832 MHz, 863 - 865 MHz
Channels
60 (6 x 10)
Groups
6
Inputs
XLR
Frequency response
60 - 16000
Signal-to-noise ratio
> 100 dB
Rated HF output power
10 mW
Controls
Gain, Low Cut, Power / Mute
Indicators
LED, OLED Display
Power supply
2 x AA battery
Operating time
up to 8 hrs., battery-dependent
Width
115 mm
Height
54 mm
Depth
135 mm
Weight
0,73 kg
Description
U508 CST
Available in three versions operating in the 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz & 863 - 865 MHz frequency bands, the U500® conference microphone base sports a combination power and mute switch, high contrast OLED display, adjustable gain and a 130 Hz low cut filter to eliminate low frequency rumble. It provides a 3-pin XLR input for the U 500® Gooseneck Conference Microphone (sold separately, item no. LDU500GM530CC).
