A new model exists for this item:
ROOT® BAR 6
CLROOTBAR6
Item no.: CLTRIBAR400IR
Guarantee: 24 months
EAN: 4049521215803
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:LED Bar
Item highlights:
- 24 ultra bright 3W Tri-LEDs
- 3 individually controllable octets of LEDs
- Includes IR remote control with batteries
- Convection cooling for noiseless operation
- 5 mode DMX control plus master, slave and standalone modes
- Built-in microphone for sound control
- Backlit display with 4 function keys for easy manual operation
- IEC mains input and output for serial connection
- Rugged metal enclosure with roping eye and universal mounting angles
Features
RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.
Specifications
Description

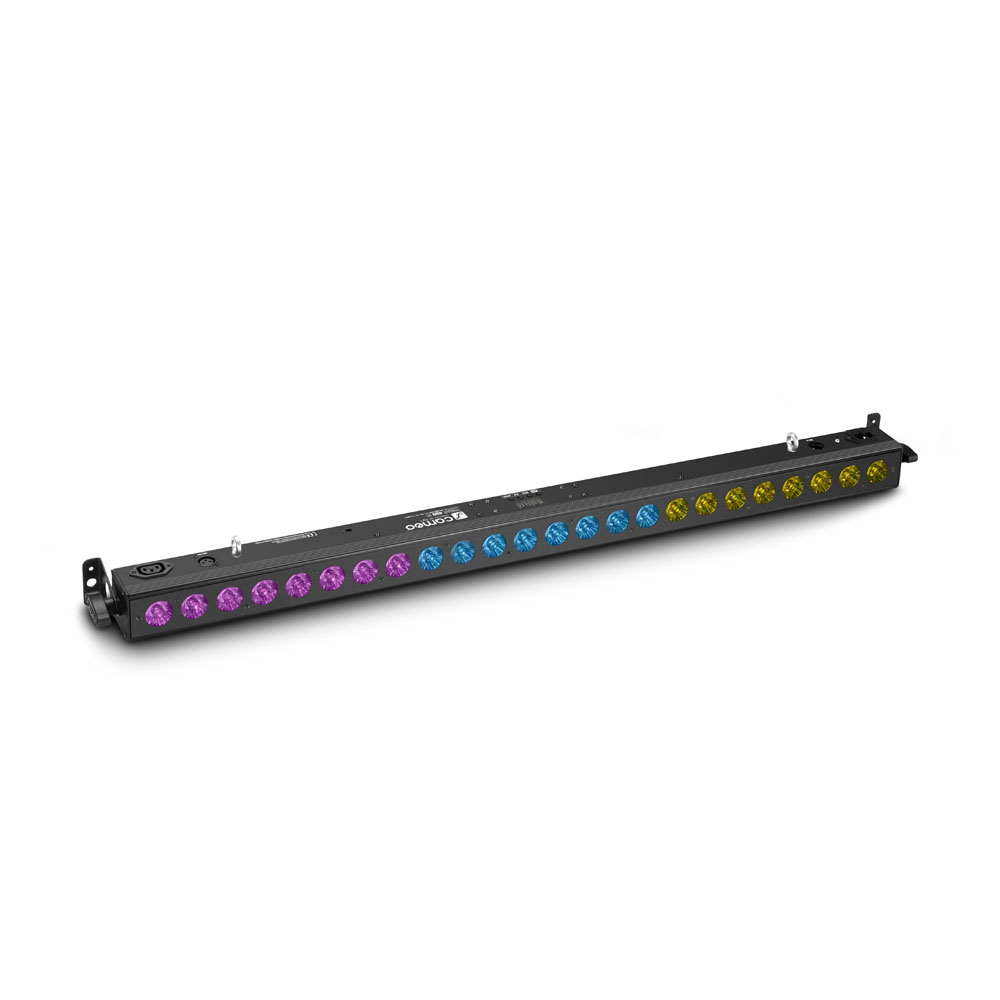

TRIBAR 400 IR
Featuring 24 ultra bright 3W Tri-LEDs, convection cooling for noiseless operation and 5 DMX modes the Cameo TriBar 400 IR is just right for versatile lighting design. The LEDs are individuall controllable in octets for stunning chase effects.
The RGB washer sports a 20° beam angle, master, slave and standalone modes with 12 autorun programs and a built-in microphone for sound control. A backlit 4-button display and the IR remote control allow convenient manual operation.
The rugged metal enclosure is equipped with 3-pin DMX and IEC mains inputs and outputs for easy daisy chaining and adjustable mounting angles, power consumption is remarkably low at 75 watts.
Downloads
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| CLTRIBAR400IR User Manual | User Manual | 1.78 MB | |||
| CLTRIBAR400IR Quick Start Guide CAMEO Gearbagtable | Quick Start Guide | 53.74 KB | |||
| CLTRIBAR400IR Ecolabel | Ecolabel | 114.73 KB | |||
| Cameo REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| Cameo RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| CLTRIBAR400IR DMX Control Table | DMX Control Table | 38.63 KB | |||
| CLTRIBAR400IR Fixture Library Daslight | Fixture Library Daslight | .zip | 24.15 KB | ||
| CLTRIBAR400IR Fixture Library GDTF | Fixture Library GDTF | .zip | 148.29 KB | ||
| CLTRIBAR400IR 2D Drawing | 2D Drawing | 263.37 KB | |||
| Cameo Catalogue / Brochure CAMEO Brand Flyer | Catalogue / Brochure | 387.56 KB | |||
| Cameo Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB | |||
| Cameo Catalogue / Brochure CAMEO 2024 | Catalogue / Brochure | 11.97 MB |
Nothing there?
You can find more downloads in our download centre.
