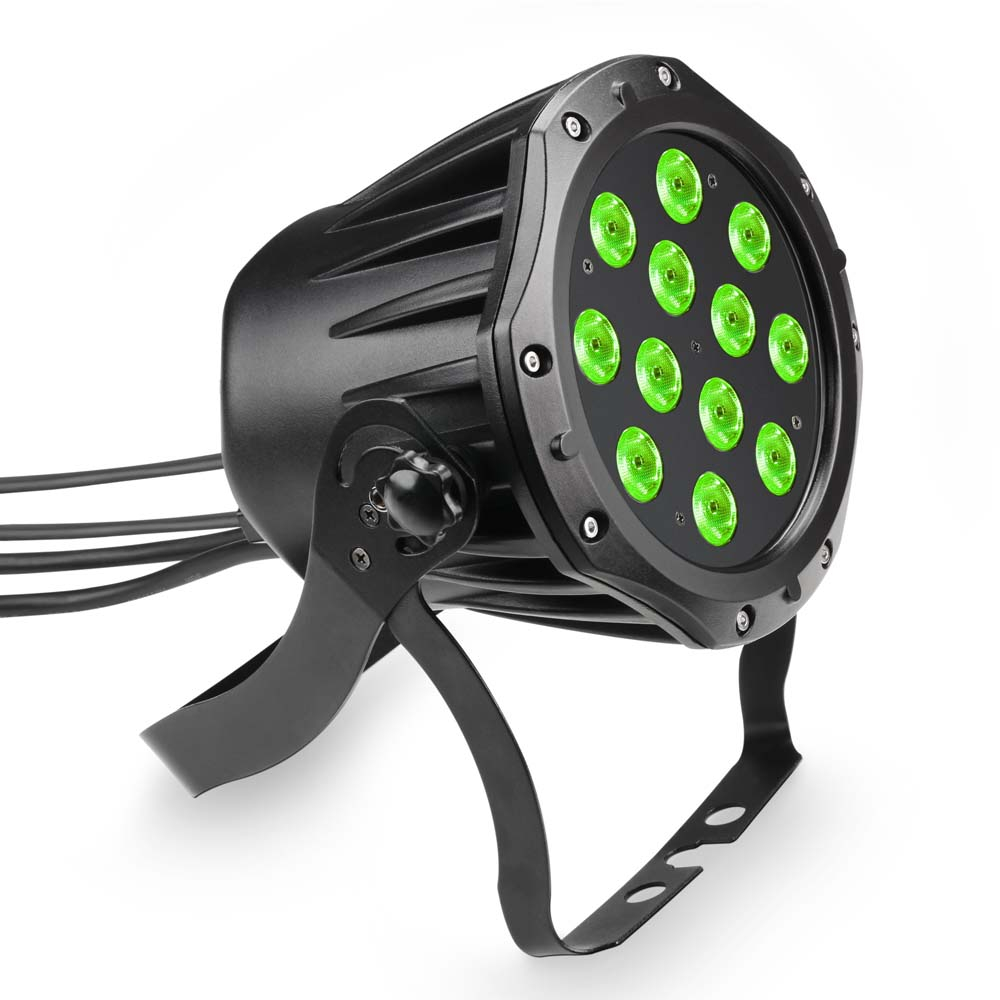

STUDIO PAR TRI 12 IP

12 x 3 W TRI Colour LED Outdoor PAR Can RGB in Black Housing

Item no.: CLPSTTRI12IP

Guarantee: 24 months

EAN: 4049521153518

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:FLAT

Versions:

Item highlights:

  • 12 x 3 W High Power TRI RGB LEDs
  • IP65 for outdoor use
  • Operated via DMX, in master/slave mode or standalone mode
  • Simple to operate using the four buttons and LED display
  • Double brackets included as standard
  • Rugged compact metal housing

Features

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Specifications

Product type
LED PAR Lighting
Type
Outdoor
Colour spectrum
RGB
Number of LEDs
12
LED type
3 W TRI Colour
Dispersion
25 °
DMX input
3-pin special connector, screwable
DMX output
3-pin special connector, screwable
DMX mode
2-channel, 3-channel 1, 3-channel 2, 6-channel
DMX Functions
colour fade, colour jump, colour macro, master dimmer, RGB
Standalone modes
colour change, colour fade, slave mode, static colour
Controls
Enter, Mode, Value Down, Value Up
Indicators
LED Display
Operating voltage
110 V AC - 250 V AC
Power consumption
50 W
Power supply connector
3-pin special connector, screwable
Housing material
Metal
Cabinet colour
Black
Protection class IP
65
Cooling
Convection
Illuminance
5900lx @ 1m
Width
203 mm
Height
203 mm
Length
193 mm
Weight
4,25 kg

Description

STUDIO PAR TRI 12 IP

The Cameo CLPSTTRI12IP is a heavy-duty PAR light with twelve 3-watt tri-color LEDs for smooth RGB colour mixing and a focused 25° beam angle. It is especially intended for professional outdoor applications featuring purpose-designed screw connectors and an IP65 rating.

The CLPSTTRI12IP can be controlled via DMX and provides a variety of colour macro, jump, fade and strobe functions. It is also capable of slave and standalone operation with Mode, Enter, Value Up and Down keys and a clear LED display permitting easy menu access.

The Cameo CLPSTTRI12IP is equipped with dual brackets that are easily adjustable for multiple mounting options.
