Studio Mini PAR TRI 3 W
Archive

Studio Mini PAR TRI 3 W

7 x 3 W TRI Colour LED RGB PAR Light in Black Housing

Item no.: CLPSTMINITRI3W

Guarantee: 24 months

EAN: 4049521130632

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:Studio PAR

Item highlights:

  • 7 x 3 W High Power TRI RGB LEDs
  • Low power consumption
  • Operated via DMX, in master/slave mode or standalone mode
  • Integrated microphone for sound control mode
  • Simple to operate using the four buttons and LED display
  • Double brackets included as standard
  • Compact, sturdy metal housing

Features

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Specifications

Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
RGB
Number of LEDs
7
LED type
3 W TRI Colour
Dispersion
25 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
6-channel
DMX Functions
colour fade, colour jump, master dimmer, RGB, Strobe
Standalone modes
colour change, colour fade, slave mode, sound control, static colour
Controls
Enter, Mode, Value Down, Value Up
Indicators
LED Display
Operating voltage
100 V AC - 250 V AC
Power consumption
30 W
Power supply connector
Power cord with safety plug (Type E / CEE 7/7)
Housing material
Metal
Cabinet colour
Black
Cooling
Convection
Width
168 mm
Height
183 mm
Length
186 mm
Weight
2 kg

Description

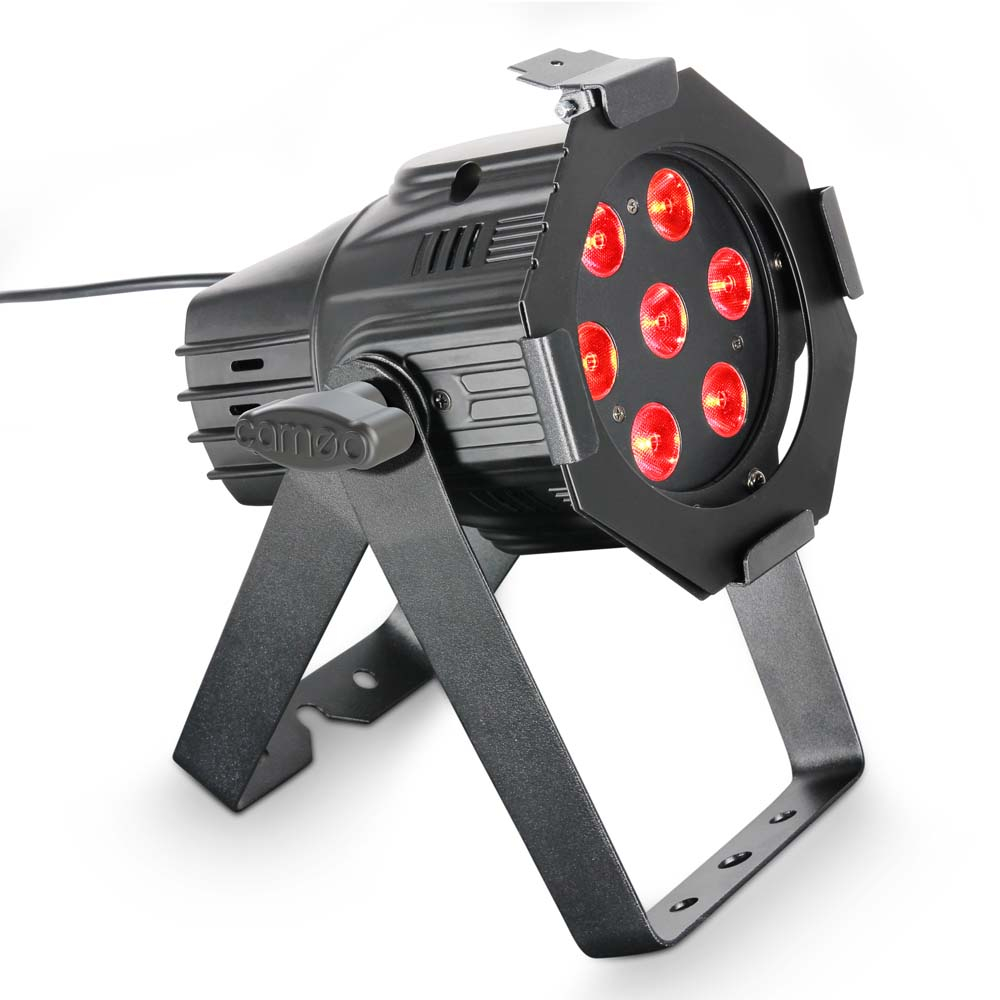

Studio Mini PAR TRI 3 W

Professional Mini-PAR in sturdy and compact black housing. The light is provided by seven ultra-bright 3-Watt TRI colour LEDS, and the beam angle is 25 degrees. Thanks to the colour mix in the LED itself, colours are added without coloured shadows or borders. The power consumption of the CLPST MINI TRI 3 W is a mere 30 Watts.

The sturdy, compact housing features a double bracket for mounting to cross-beams and bars and for use as a floor PAR.

It is actuated via DMX (6 channel) or in standalone mode. The CLPST MINI TRI 3 W has an integrated microphone for sound control.
