PIXBAR® DTW PRO

12 x 10 W Tri-LED Bar with Variable White Light and Dim-to-Warm Control

Item no.: CLPIXBARDTWPRO

Guarantee: 24 months

EAN: 4049521302725

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:PIXBAR® Series

Item highlights:

  • 12 x 10 watt Tri-LEDs 3-in-1 Cool White, Warm White and Amber
  • Full white temperature control from Tungsten to CW (1,600 - 6,800 K)
  • CRI 97 @ 2,800 K for natural colour rendering
  • Dim to Warm (DTW) technology to emulate halogen-style dimming
  • Single pixel control for stunning chase and pixel mapping effects
  • Selectable 16-bit dimming curves and response
  • RDM enabled
  • 9 DMX modes plus sound activation and automated operation
  • Highly efficient convection cooling for noiseless operation
  • Flicker free for use in TV and film applications
  • Glare shield and frost filter included
  • Omega bracket set available as accessory

Specifications

Product type
LED Bars
Type
Washer
Colour spectrum
Cold white, Warm white, yellow
Number of LEDs
12
LED type
10 W (ca. 50000 operating hours)
Refresh rate
3000 Hz
Dispersion
18° Beam, 30° Beam Field (without Diffusor) °
Lens
PE
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
1-channel, 13-channel, 2-channel, 3-channel, 36-channel, 49-Channel, 6-channel, 9-channel
DMX Functions
Auto Mode, Automode-Speed, Color Temperature, Dim LEDs seperate, Dim to Warm, Dimmer, Sound to Light, Strobe
Standalone modes
Master / Slave mode, Static
Controls
Enter, Mode, Value Down, Value Up
Indicators
LC display
Operating voltage
Glare Shield, Neutrik Power Cable
Power consumption
130 W
Power supply connector
Neutrik powerCON IN / OUT
Housing material
Aluminium
Cabinet colour
Black
Protection class IP
20
Cooling
Convection Cooling
Luminous flux
3240 lm
Efficiency
25 lm/W
Operating Temperature
-15 - 45 °C
Width
93 mm
Height
130 mm
Length
900 mm
Weight
7,8 kg
Accessories (included)
Glare Shield, FROST Filter, Neutrik Power Cable

Description

PIXBAR® DTW PRO

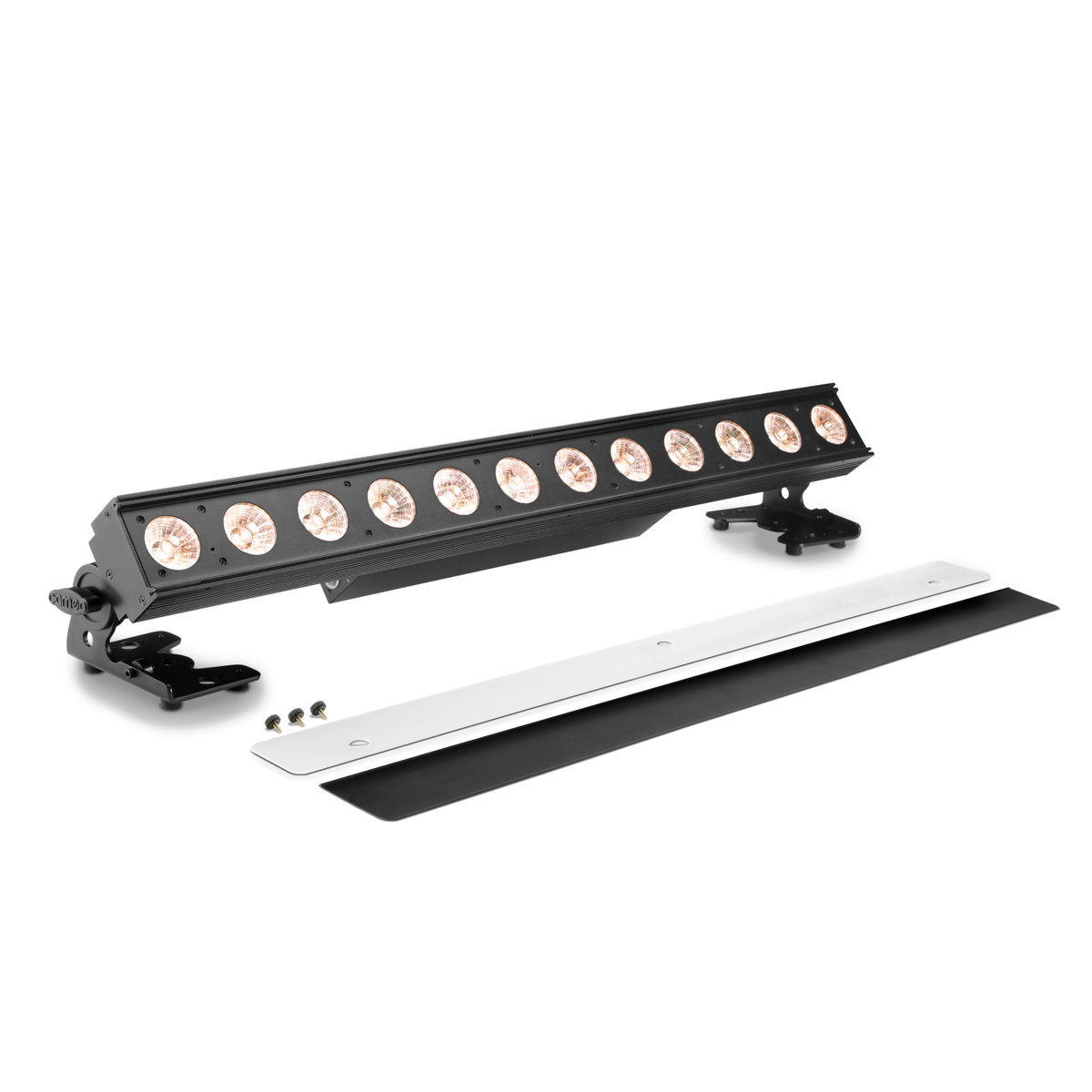

Featuring twelve 10 watt 3-in-1 cool white, warm white and amber Tri-LEDs, the Cameo PIXBAR® DTW PRO permits full white temperature control from warm Tungsten white to ultra bright cool white. The professional LED bar features an 18° beam angle and Dim-to-Warm technology to emulate the smooth dimming of halogen lamps. Highly efficient convection cooling and a 3,000 Hz refresh rate ensure absolutely noiseless and flicker-free operation making it a perfect choice for TV and film applications.

The PIXBAR® DTW PRO is RDM enabled and provides 9 modes of DMX control, sound activation plus automated operation. The fixture includes single pixel control for impressive chase effects and pixel mapping, a high-speed strobe and selectable 16-bit dimming curves with adjustable response. A 4-button display enables easy configuration. The rugged aluminium housing features 3 and 5-pin DMX and Neutrik powerCON inputs and outputs that enable convenient daisy chaining. The PIXBAR® DTW PRO comes with a glare shield and frost filter if softer washes are called for.
