Item no.: CLPIXBAR500PRO
Guarantee: 24 months
EAN: 4049521185977
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Series:PIXBAR® Series
Item highlights:
- 6 ultra-bright 12 W RGBWA+UV LEDs
- Single Pixel Control for effective Chase effects
- Silent operation thanks to convection cooling
- Flicker-free
- Professional 3- and 5-pin DMX sockets and Neutrik powerCon mains connector
- Fully RDM-enabled
- 7 DMX modes plus operation as a standalone, master or slave
- Frost filter for uniform, glare-free light
- 4 adjustable dimmer curves
- Colour temperature correction
- 3 preset shades of white: warm white, cool white, white
- Sturdy aluminium housing
Features
Single pixel control
This device has an individual pixel control function. Since the colour and brightness of each LED pixel can be individually controlled (“Single Pixel Control”), the device can be used to generate animated graphic patterns and pixel mapping effects.
Specifications
Description

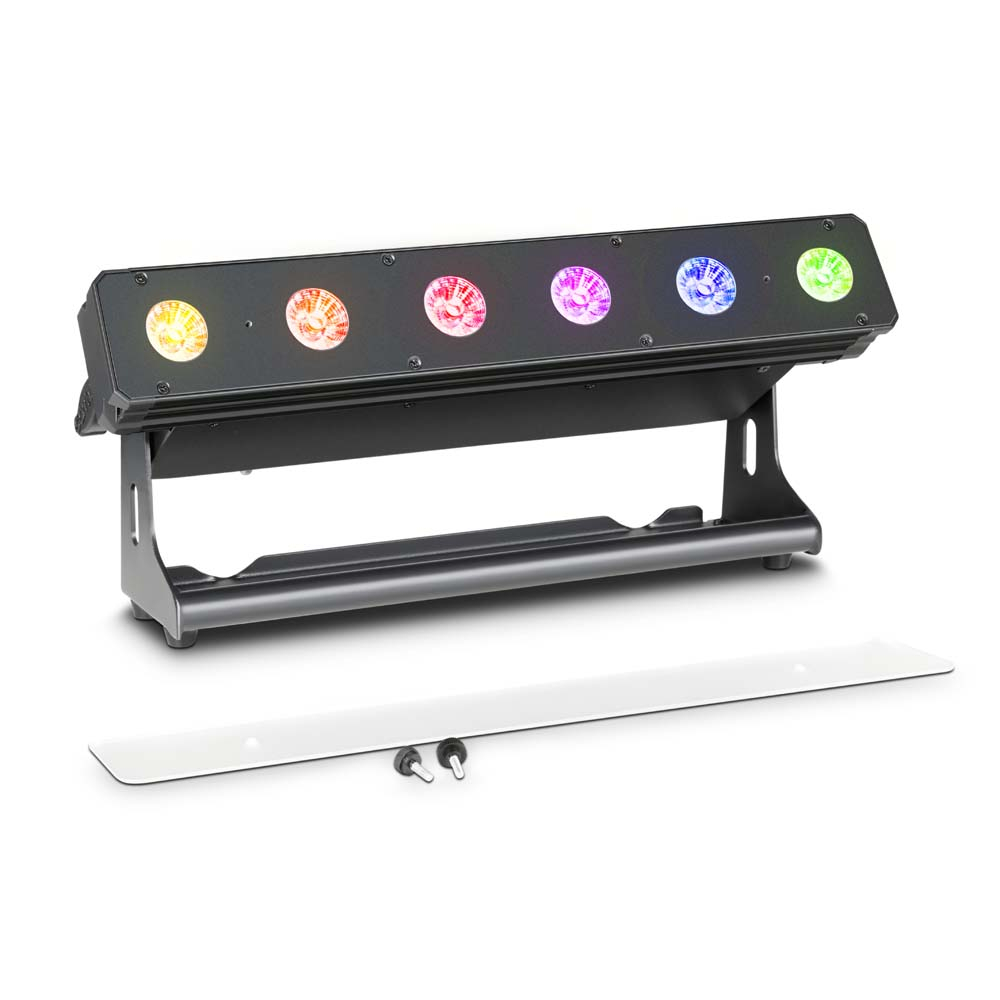

PIXBAR® 500 PRO
The Cameo PIXBAR® 500 PRO is a wide-angle, convection-cooled LED bar for professional use, equipped with 6 super-bright 12 Watt RGBWA+UV LEDs. It operates absolutely noiselessly and is flicker-free due to its high refresh rate of 3,000 Hz.
In addition to the almost unlimited range of colours that can be varied in temperature as well as the macros that are aligned with LEE filters, the PIXBAR® offers 3 shades of white and 4 selectable dimmer curves. With the Single Pixel Control, all LEDs can also be individually adjusted to achieve impressive Chase effects.
The fully RDM-enabled PIXBAR® 500 PRO can communicate bidirectionally with RDM-controllers, to provide the address, status, and all parameters of the device. Naturally, the light bar can also be controlled via the standard DMX protocol in 7 control modes or used as a standalone, master and slave; it features 14 automatic modes and a built-in microphone for sound control. A backlit display and 4 buttons are used for manual operation.
The aluminium housing of the Cameo PIXBAR® 500 PRO is equipped with both 3- and 5-pin input and output sockets for the DMX-signal, as well as with Neutrik Powercon mains connectors. The light bar can be used with all mains voltages from 110 to 240 volts and comes with a mounting bracket and a frost filter to provide a uniform, glare-free light.
