PAR 56 CAN RGB 10 BS

108 x 10 mm LED RGB PAR Light in Black Housing

Item no.: CLP56RGB10BS

Guarantee: 24 months

EAN: 4049521126239

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:PAR Cans

Questions about the item?

Item highlights:

108 powerful 10mm RGB LEDs
Low power consumption
Operated via DMX, in master/slave mode or standalone mode
Integrated microphone for sound control
Simple to operate using the three buttons and LED display
Double brackets included as standard
Rugged compact aluminum housing

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Specifications

Product type

LED PAR Lighting

Type

Indoor

Colour spectrum

RGB

Number of LEDs

108

LED type

10 mm

Dispersion

25

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

4-channel, 6-channel

DMX Functions

colour jump, master dimmer, colour fade, RGB, sound control, Strobe

Standalone modes

sound control, slave mode, static colour, colour fade, colour change

Controls

Value Up, Value Down, Mode

Indicators

LED Display, Program selection

Operating voltage

230 V AC

Power consumption

20 W

Power supply connector

Power cord with safety plug (Type E / CEE 7/7)

Housing material

Aluminium

Cabinet colour

Black

Cooling

Convection

Width

230 mm

Height

250 mm

Length

260 mm

Description

PAR 56 CAN RGB 10 BS

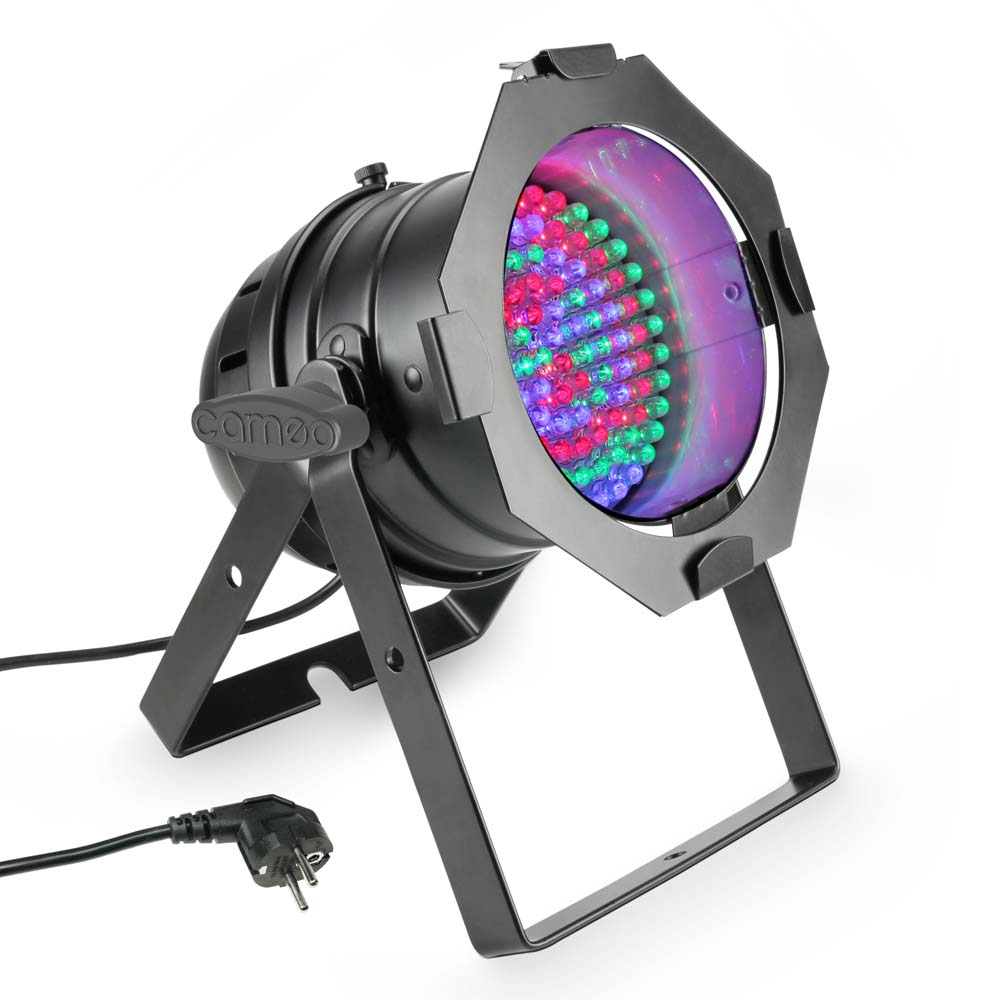

Professional PAR can with 108 ultra-bright LEDs (36 x red, 36 x green, 36 x blue) and RGB colour system in a sturdy aluminium housing and a beam angle of 25 degrees. Featuring a double bracket, the CLP 56 RGB 10 BS is suitable for use both as a floor PAR and for mounting to cross-beams and bars.

It is actuated either via DMX protocol (3-pole XLR) with four and six control channels, in master/slave mode or in standalone mode (sound control, colour change, solid colours). It is controlled by three buttons and an LED display.

The power consumption of the CLP 56 RGB 10 BS is a mere 20 Watts.
