FLASH BAR 150

3-in-1 Strobe, Chase and Blinder Effect Fixture

Item no.: CLFB150

Guarantee: 24 months

EAN: 4049521198113

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:LIGHT FX

Questions about the item?

Item highlights:

3 FX in 1: strobe, chaser and blinder
15-zone chase effect
15 powerful, ultra bright 6W LEDs
6 modes of DMX control plus master, slave and standalone operation
Sound activation and built-in automated programs
4-button LED display for easy operation

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Specifications

Product type

LED Strobes

Type

Strobe

Colour spectrum

white

Number of LEDs

15

LED type

6 W

Dispersion

80

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

1-channel, 3-channel, 20-channel, 2-channel, 5-channel, 15-channel

DMX Functions

Dimmer, Flash duration, Flash rate, Auto programs

High Speed Strobe

> 30 Hz

Standalone modes

sound control, slave mode, Flash rate, Dimmer Mode

Controls

Value Up, Value Down, Mode, Enter

Indicators

LED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

90 W

Power supply connector

IEC power connector male

Housing material

Metal

Cabinet colour

Black

Cooling

low-noise fan

Illuminance

2250lx @ 1m

Width

906 mm

Height

73 mm

Depth

115 mm

Description

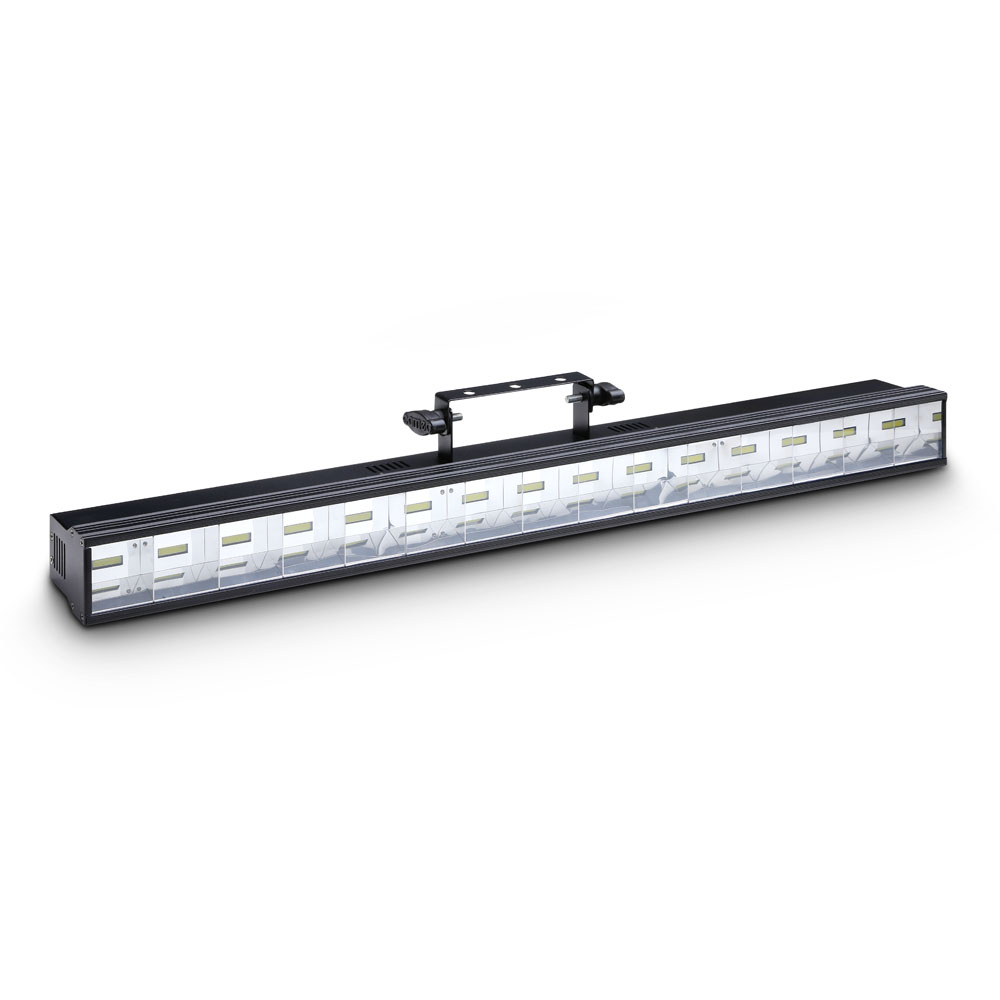

FLASH BAR 150

The Cameo Flash Bar 150 combines strobe, chase and blinder effects in a single fixture that is equipped with15 powerful white 6 watt LEDs. With a maximum strobe speed up to 30 Hz, adjustable flash rate and duration, smooth dimming and 80° dispersion the Flash Bar 150 creates captivating, dynamic lighting.

It offers 1-channel, 2-channel, 3-channel, 5-channel, 15-channel and 20-channel modes of DMX control as well as master, slave and standalone functionality. In addition, the Flash Bar 150 features sound activation and mesmerizing automated programs.

The rugged black metal enclosure sports an adjustable mounting bracket and a low-noise fan to keep the fixture cool. The Flash Bar 150 provides 3-pin DMX input and output connectors, an IEC mains inlet and runs on 110 - 240 volts AC. Operation is easy and intuitive via a 4-button LED display.
