BAR 10 RGBA WH

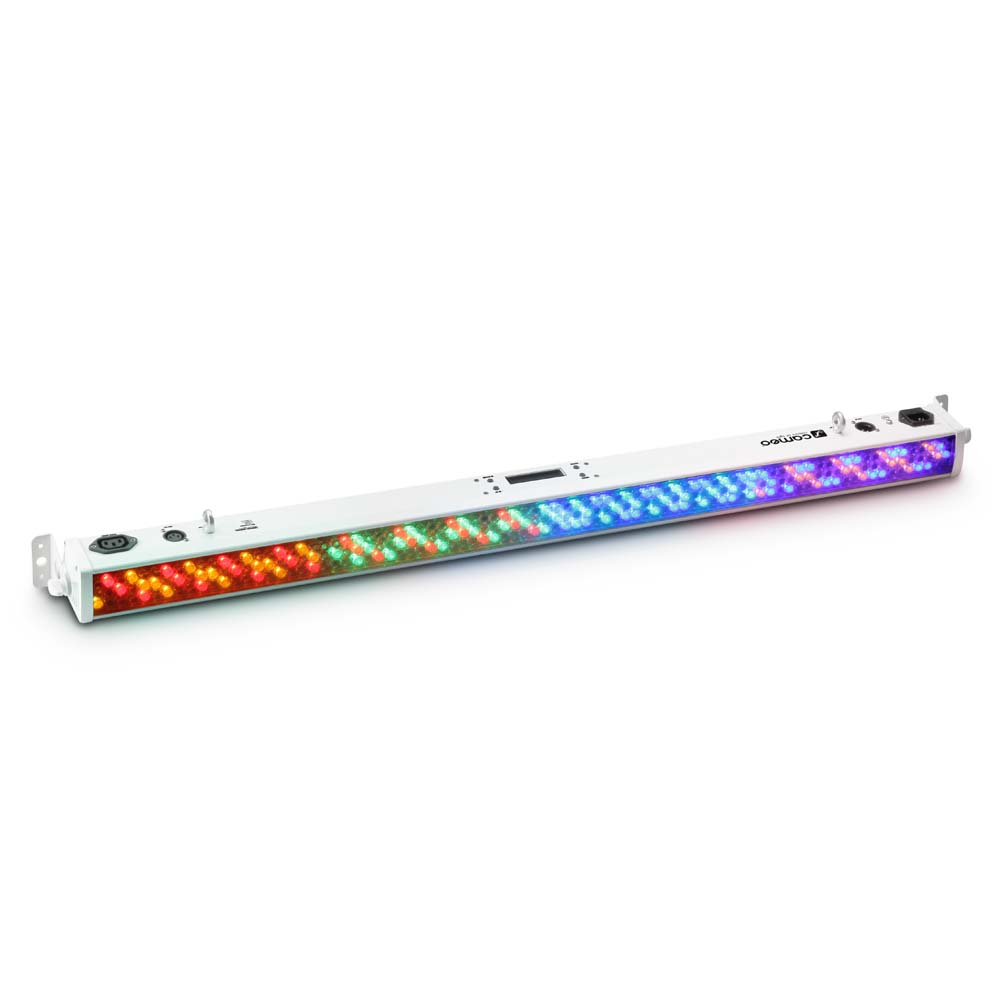

252 x 10 mm LED RGBA Colour Bar white

Item no.: CLBARL10RGBAWH

Guarantee: 24 months

EAN: 4049521168536

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:LED Bar

Questions about the item?

Item highlights:

252 powerful, long-life 10 mm RGBA LEDs
RGBA for warm, rich colour mixing
Operated via DMX, in master/slave mode or standalone mode
Can be operated in one block or separately in 4 equal blocks
Integrated microphone for sound control
Simple to operate using the four buttons and LED display
Universal mounting brackets included
Rugged slim metal housing

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

RGB additive colour system plus amber LEDs
Amber is a colour that is outside the RGB spectrum. Additional amber LEDs allow warmer and richer colours to be created.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type

LED Bars

Type

Indoor

Colour spectrum

RGBA

Number of LEDs

252

LED type

10 mm

Dispersion

30

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

19-channel, 4-channel, 3-channel, 6-channel, 2-channel

DMX Functions

colour jump, master dimmer, colour fade, sound control, Strobe, RGBA, colour macro

Standalone modes

10 Programs, sound control, slave mode, static colour, colour fade, Auto run, colour jump

Controls

Value Up, Value Down, Mode, Enter

Indicators

LC display

Operating voltage

100 V AC - 250 V AC

Power consumption

40 W

Power supply connector

IEC power connector

Housing material

Metal

Cabinet colour

white

Width

1018 mm

Height

63 mm

Depth

87 mm

Description

BAR 10 RGBA WH

The Cameo CLBARL10RGBA is a multi-purpose slimline light bar: for use in clubs and discos, for stages and interior design, even for the home. It is equipped with 252 durable, high-performance 10 mm LEDs in red, green, blue and amber, which provide a brilliant, uniform illumination in the basic colours and any combinations with a defined beam angle of 30°.

The Cameo bar can be controlled via 4, 6 or 19 DMX channels or operated in standalone mode. It is operated using the mode, input, up and down buttons with an LCD display, and comes with a built-in microphone for sound control.

The bar can be locked in position using the two mounting brackets, and two eyelets are used for suspension and securing. Input and output jacks for power and DMX on both ends make it possible to control multiple Cameo light bars in series. Moreover, the CAMEO LIGHT BAR impresses with a low power consumption of 40W and minimal heat generation.
