FIDP 1050 S
Archive

FIDP 1050 S

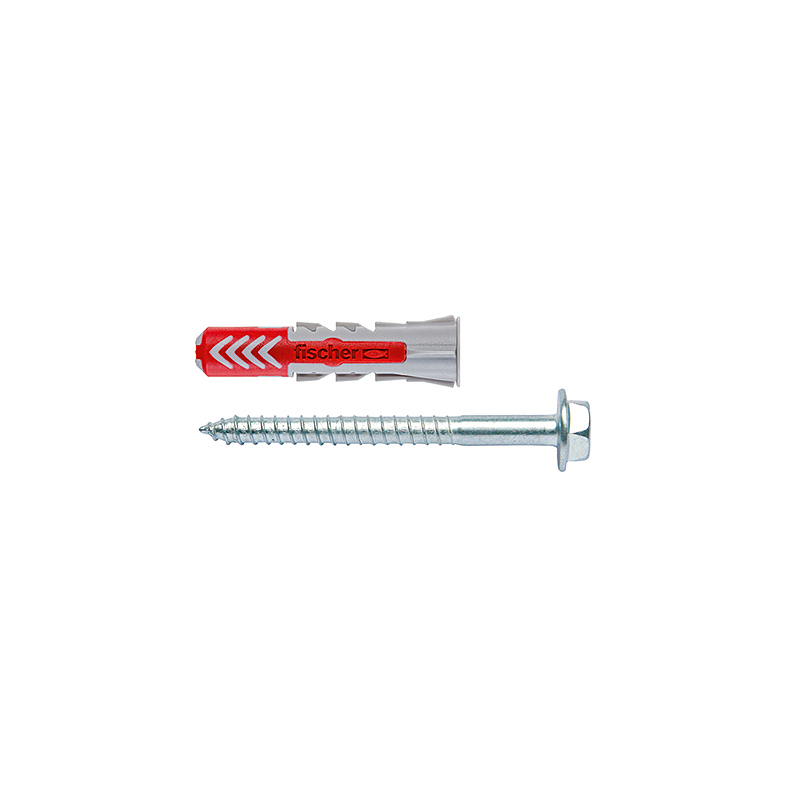

DUOPOWER 10 x 50 S with screw

Item no.: FIDP1050S

EAN: 4049521216343

Sliding scale: 175

Unit: Piece

Packaging unit: 250

Item highlights:

  • Combination of two material components for better performance
  • Secure functions for solid (expansion) and hollow building materials (folding)
  • Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
  • Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly
  • With the appropriate screw 7.0 x 70 for maximum hold

Specifications

Product type
Fittings
Drill Hole Diameter
10 mm
Min. Drill Hole Depth
50 mm
Min. Panel Thickness
12.5 mm
Anchor Length
40 mm
Min. Bolt Penetration
45
Wood and Chipboard Screws
7 x 70 mm
Max. Fixture Thickness
12.5 mm

Description

FIDP 1050 S

The fischer DUOPOWER offers excellent load-bearing values as a result of the 2 components: The grey component made from high-quality nylon automatically activates the optimum product function (expansion, folding) for the best hold, depending on the substrate. The expansion wings of the red component facilitate secure expansion and provide additional security for the grey component. Simple tightening of the screw and correct "pulling" at the end. No over-tightening of the screw. The edge, formed on the anchor head, prevents the anchor from sliding into the drill hole. The versatile DUOPOWER is of course also the first choice for mounting lights, bars and mounting of wall mounts, speakers and permanent installations. It is an indispensable accessory for all situations where you need to rely on a strong and permanent bond when mounting.

VPE: 25 units
