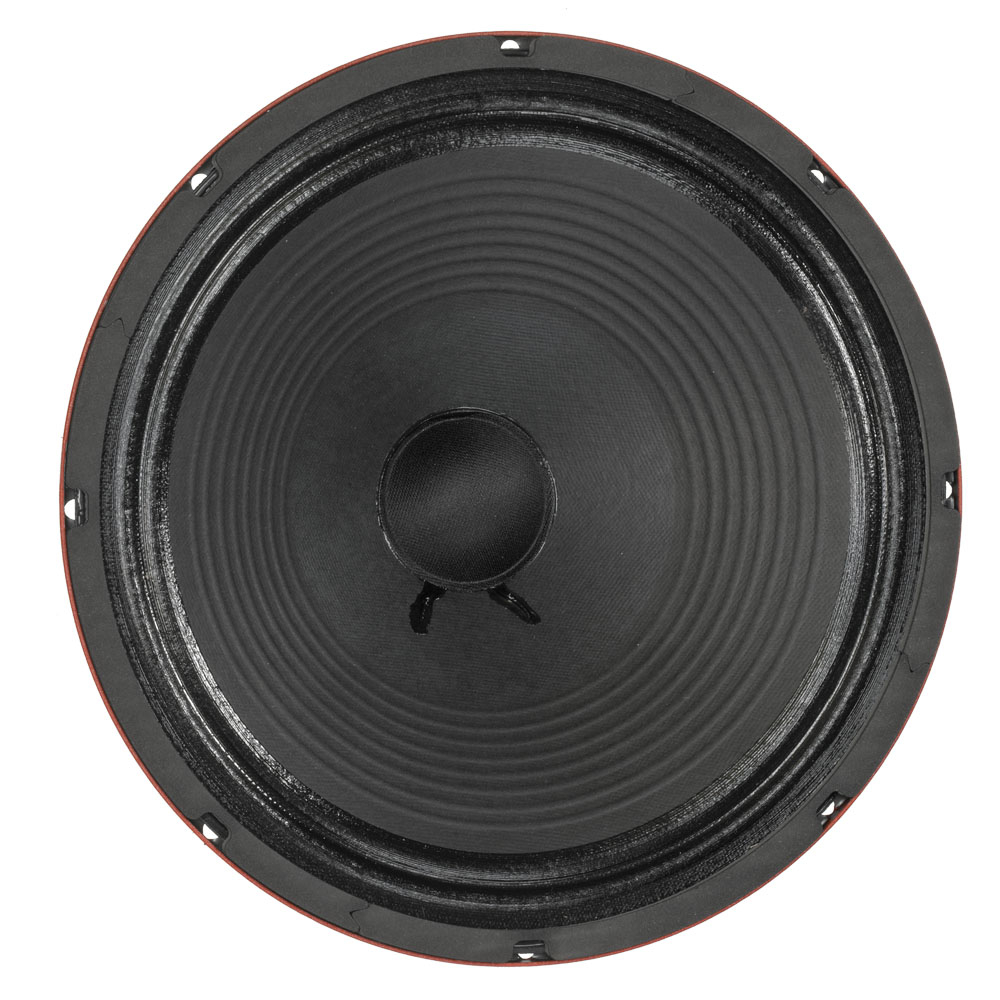

Wizard B
12" Speaker 75 W 16 Ohms
Item no.: ERWIZARDB
Guarantee: 24 months
EAN: 4049521027345
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
wiz'ard n. a 12" speaker with enchanting tonal characteristics borrowed from Private Jack and The Governor
Coloration : Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Cross between Private Jack and The Governor
Genre : Classic Rock tones of the 60's and 70's
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 Inch
Nominal Diameter
304.8 mm
Voice Coil
1.75 Inch
Voice Coil
44.5 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
132
Nominal Impedance
16
Nominal Load Capacity
150 W
Sensitivity (1 W / 1 m)
103.5 dB
Frequency response
70 Hz - 6000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
100 Hz
Re (DC resistance)
13.2 Ω
Qms (mechanical quality)
13.77
Le (inductance of the voice coil)
0.64 MH
Qes (electrical quality)
0.66
Qts (overall quality)
0.63
Vas (equivalent volume)
35.1
Mms (moving mass)
28 g
BL (power factor)
18.6 T/M
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.09 MM/N
Sd (membrane area)
519.5 CM²
