W 8 N 8200 A

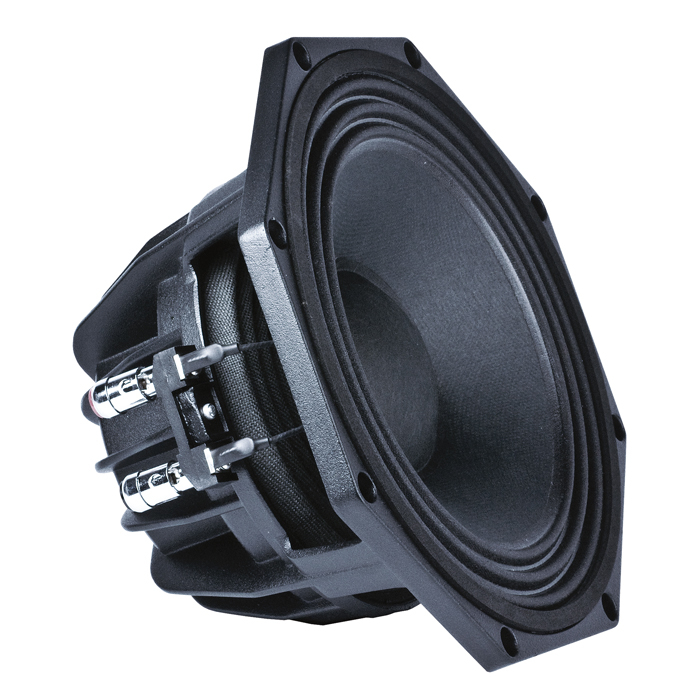

8" Speaker 200 W 8 Ohms
Item no.: FPW8N8200A
Guarantee: 24 months
EAN: 4049521112348
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
8" Speaker 200 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 Inch
Nominal Diameter
200 mm
Voice Coil
2 Inch
Voice Coil
52 mm
Overall diameter
207.9 mm
Pitch Circle Diameter
210 mm
Cut- out Measurement
184 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
116.7
Nominal Impedance
8
Nominal Load Capacity
200 W
maximum rated load
400 W
Sensitivity (1 W / 1 m)
92 dB
Frequency response
80 Hz - 5000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
7 mm
Fs (Resonance Frequency)
74 Hz
Re (DC resistance)
5.1 Ω
Qms (mechanical quality)
5.3
Le (inductance of the voice coil)
0.6 MH
Qes (electrical quality)
0.69
Qts (overall quality)
0.61
Vas (equivalent volume)
8.9
Mms (moving mass)
23 g
BL (power factor)
8.9 T/M
Xmax (maximum displacement)
8.48 mm
Cms (elasticity of the suspension)
0.2 MM/N
Sd (membrane area)
177 CM²
Rms (mechanical loss resistance)
2 KG/S
