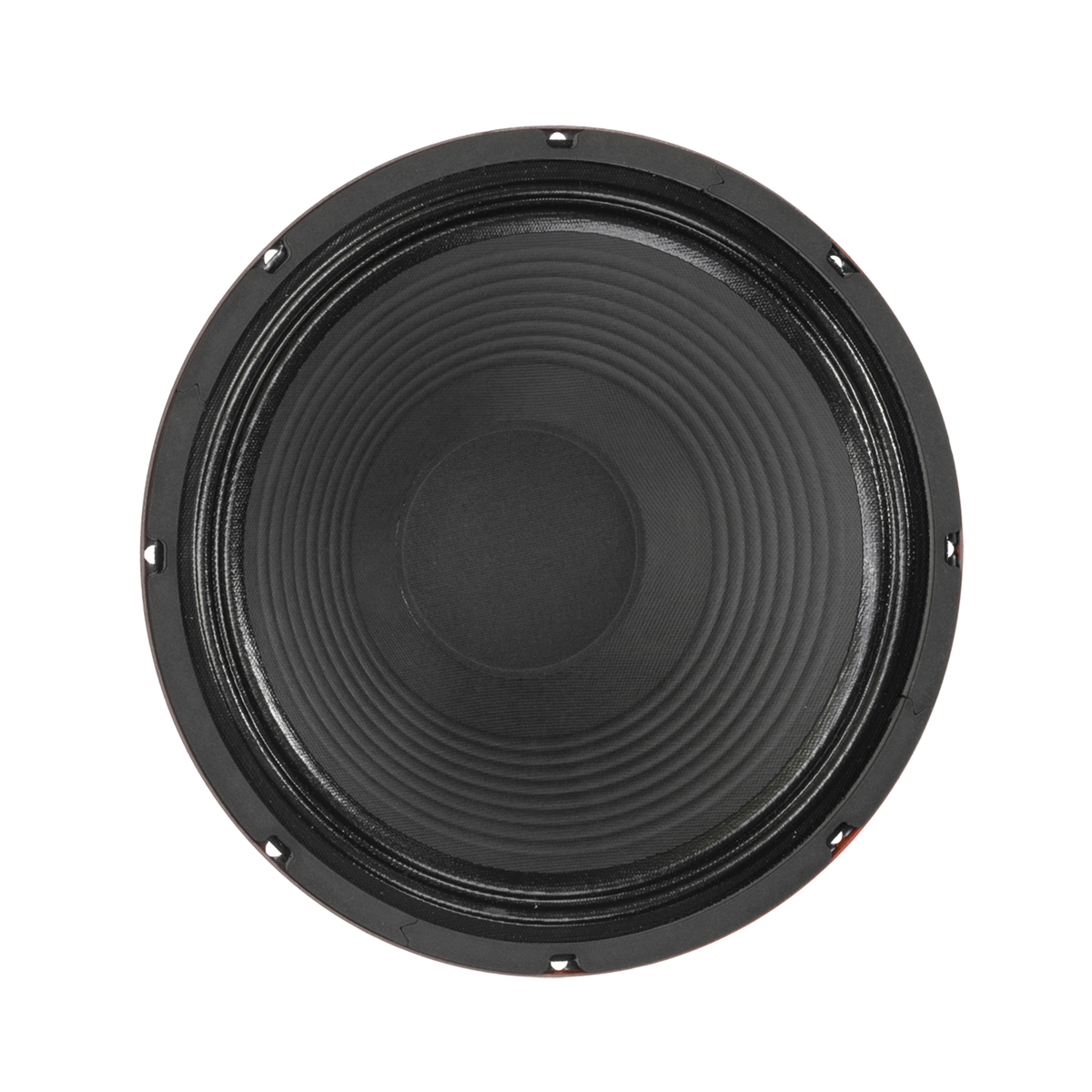

The Tonker A
12" Speaker 150 W 8 Ohms
Item no.: ERTONKERA
Guarantee: 24 months
EAN: 4049521027284
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
tonker n. a hard-hitting 12" speaker with British flavor and harmonic balance
Coloration : A very fat, clean and warm tone through the mid-range, smooth top end
Genre : English Rock, Southern Rock, Country (Great with a Telecaster)
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
132 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
150 W
Sensitivity (1 W / 1 m)
102 dB
Frequency response
70 - 5500lx @ 1m Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
89 Hz
Re (DC resistance)
7.36 Ohm(s)
Qms (mechanical quality)
10.02
Le (inductance of the voice coil)
0.47 mH
Qes (electrical quality)
0.49
Qts (overall quality)
0.47
Vas (equivalent volume)
34.1
Mms (moving mass)
36 g
BL (power factor)
17.4 T/m
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.09 mm/N
Sd (membrane area)
519.5 cm²
Weight
5,513 kg
