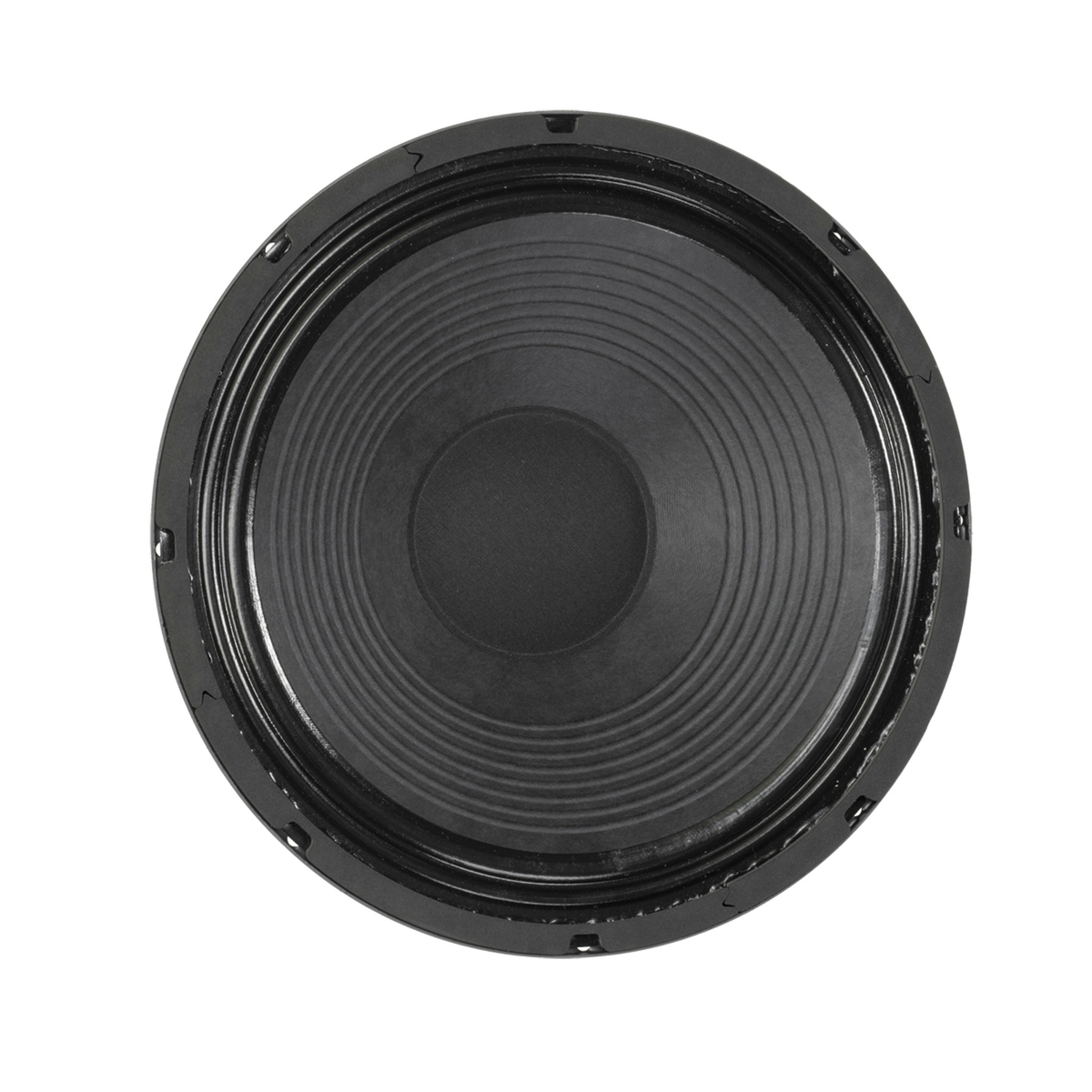

Texas Heat B
12" Speaker 150 W 16 Ohms
Item no.: EPTEXHEATB
Guarantee: 24 months
EAN: 4049521026898
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Coloration : Nice warm, fat tone with a little top end bite and clarity. Very touch-sensitive with a hint of British flavor
Genre : American Rock, Blues, and Southern Rock
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
2 "
Voice Coil
50.8 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
130 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
150 W
Sensitivity (1 W / 1 m)
100 dB
Frequency response
70 - 5000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
91 Hz
Re (DC resistance)
14.7 Ohm(s)
Qms (mechanical quality)
12.48
Le (inductance of the voice coil)
0.9 mH
Qes (electrical quality)
0.87
Qts (overall quality)
0.81
Vas (equivalent volume)
44.5
Mms (moving mass)
27 g
BL (power factor)
16 T/m
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.12 mm/N
Sd (membrane area)
519.5 cm²
Weight
4,14 kg
