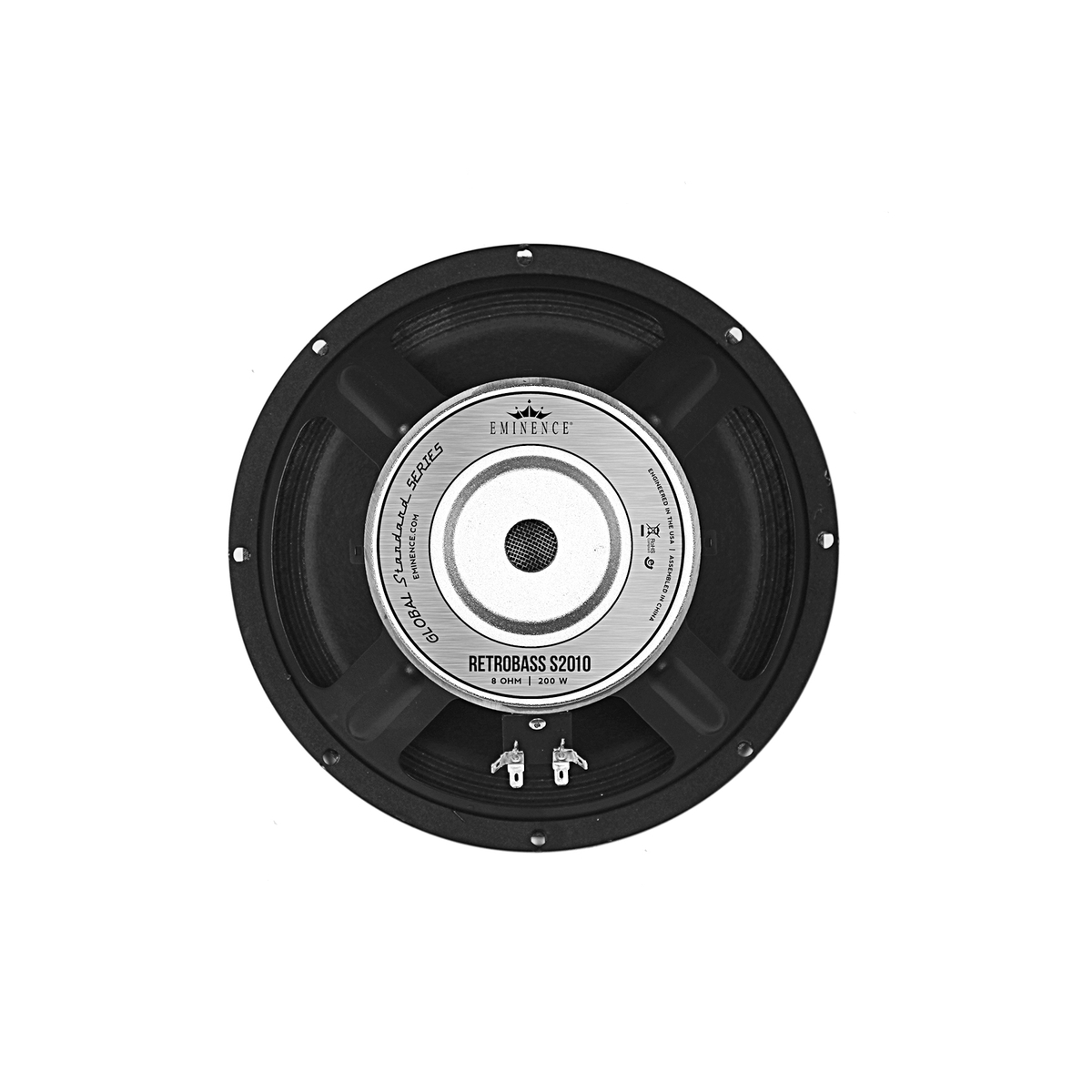

RETROBASS-S2010
10" Bass Guitar Driver, Ferrite Magnet, 8 Ohms, 2” Copper Voice Coil, Stamped Frame, 200 W
Item no.: ERBS2010A
Guarantee: 24 months
EAN: 4049521606298
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:EMINENCE Global Standard Series
Item highlights:
10" Bass guitar driver for sealed or vented cabinets. Classic American bass guitar tone.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
254 mm
Voice Coil
2 Inch
Voice Coil
51 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
246.1 mm
Cut- out Measurement
231.9 mm
Mounting holes
8
Diameter of fixing holes
5.8 mm
Depth
101.6
Nominal Impedance
8
Nominal Load Capacity
200 W
Sensitivity (1 W / 1 m)
93.2 dB
Frequency response
46 Hz - 3500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Fs (Resonance Frequency)
50 Hz
Re (DC resistance)
5.9 Ω
Qms (mechanical quality)
5.53
Le (inductance of the voice coil)
0.92 MH
Qes (electrical quality)
0.55
Qts (overall quality)
0.5
Vas (equivalent volume)
60.75
Mms (moving mass)
30 g
BL (power factor)
10 T/M
Xmax (maximum displacement)
4 mm
Cms (elasticity of the suspension)
0.35 MM/N
Sd (membrane area)
355.4 CM²
