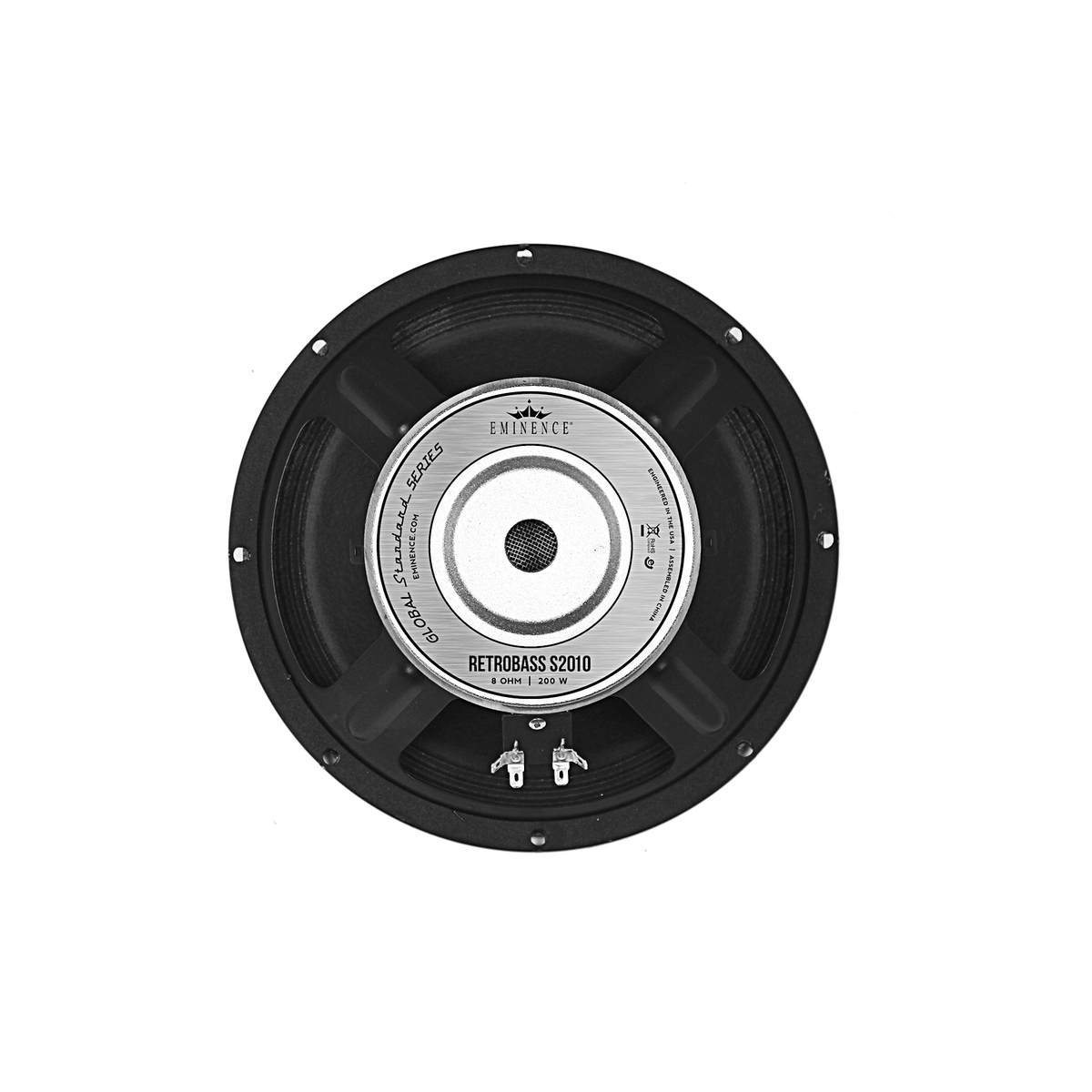

RETROBASS S2010-4
4 Ohm, Ferrite Magnet, 2” Copper Voice Coil, Stamped Frame, 200 W
Item no.: ERBS2010C
Guarantee: 24 months
EAN: 4049521606304
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:EMINENCE Global Standard Series
Item highlights:
10" Bass guitar driver for sealed or vented cabinets. Classic American bass guitar tone.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 "
Nominal Diameter
254 mm
Voice Coil
2 "
Voice Coil
51 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
246.1 mm
Cut- out Measurement
231.9 mm
Mounting holes
8
Diameter of fixing holes
5.8 mm
Depth
101.6 mm
Nominal Impedance
4 Ohm(s)
Nominal Load Capacity
250 W
Sensitivity (1 W / 1 m)
93 dB
Frequency response
49 - 3400 Hz
Voice Coil Material
copper
Fs (Resonance Frequency)
48 Hz
Re (DC resistance)
3.1 Ohm(s)
Qms (mechanical quality)
6.34
Le (inductance of the voice coil)
0.56 mH
Qes (electrical quality)
0.45
Qts (overall quality)
0.42
Vas (equivalent volume)
69.49
Mms (moving mass)
28 g
BL (power factor)
7.8 T/m
Xmax (maximum displacement)
3.9 mm
Cms (elasticity of the suspension)
0.39 mm/N
Sd (membrane area)
355.4 cm²
Weight
3,5 kg
