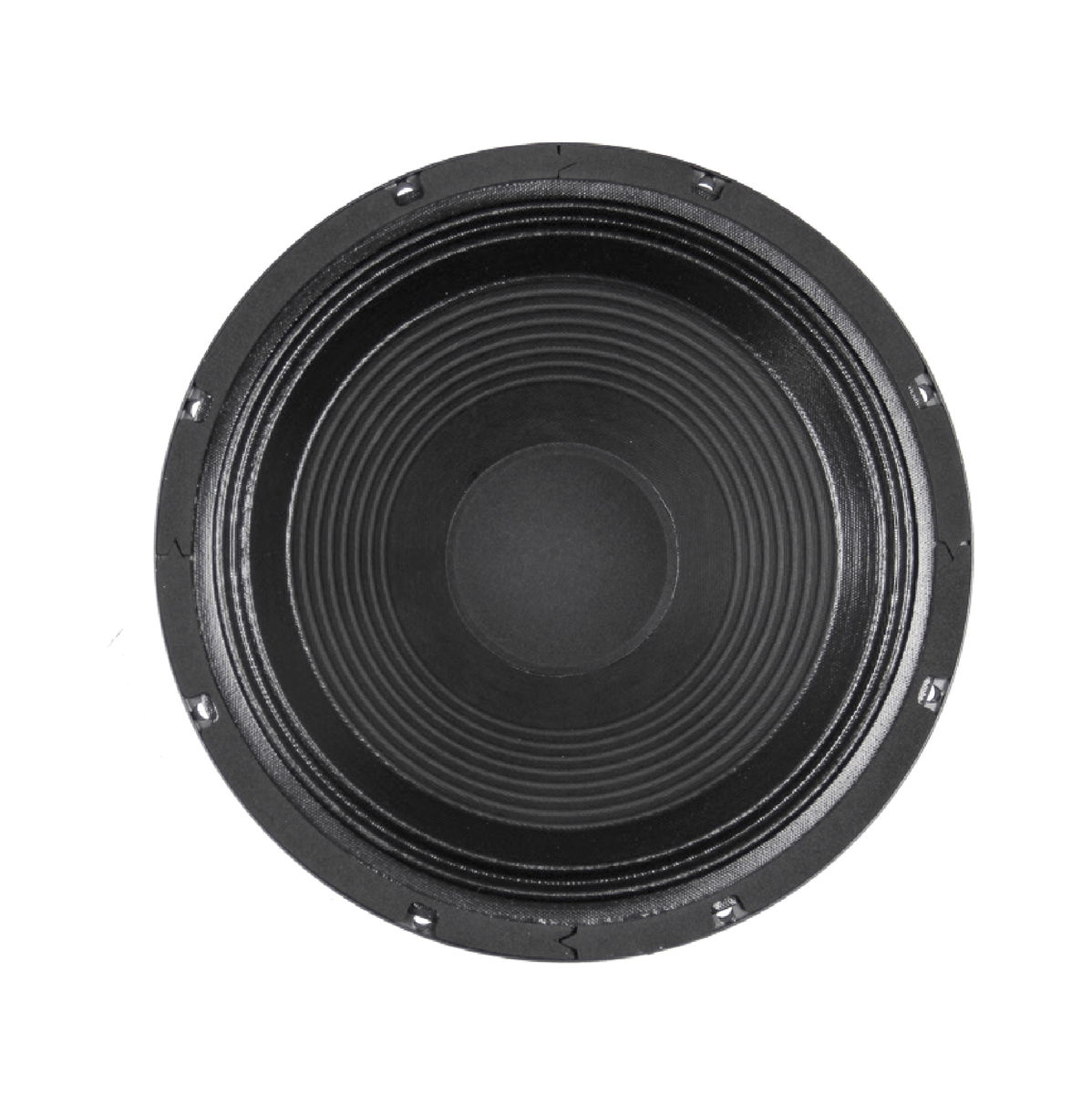

RETRO SE50-16
Guitar Speaker,16 Ohm, Classic Voicing, 50 Watts, 24oz Ferrite Magnet
Item no.: ERSE50B
Guarantee: 24 months
EAN: 4049521606441
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:EMINENCE Global Standard Series
Item highlights:
Guitar Speaker,16 Ohm, Classic Voicing, 50 Watts, 24oz Ferrite Magnet
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 Inch
Nominal Diameter
305 mm
Voice Coil
1.75 Inch
Voice Coil
44 mm
Overall diameter
311.2 mm
Pitch Circle Diameter
297.7 mm
Cut- out Measurement
279.4 mm
Mounting holes
8
Diameter of fixing holes
6.4 mm
Depth
127
Nominal Impedance
16
Nominal Load Capacity
50 W
Sensitivity (1 W / 1 m)
97,5 dB
Frequency response
80 Hz - 4500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Fs (Resonance Frequency)
93.6 Hz
Re (DC resistance)
13.58 Ω
Qms (mechanical quality)
19.53
Le (inductance of the voice coil)
0.43 MH
Qes (electrical quality)
0.89
Qts (overall quality)
0.85
Vas (equivalent volume)
42.5
Mms (moving mass)
27.4 g
BL (power factor)
10.79 T/M
Cms (elasticity of the suspension)
0.106 MM/N
Sd (membrane area)
532.4 CM²
