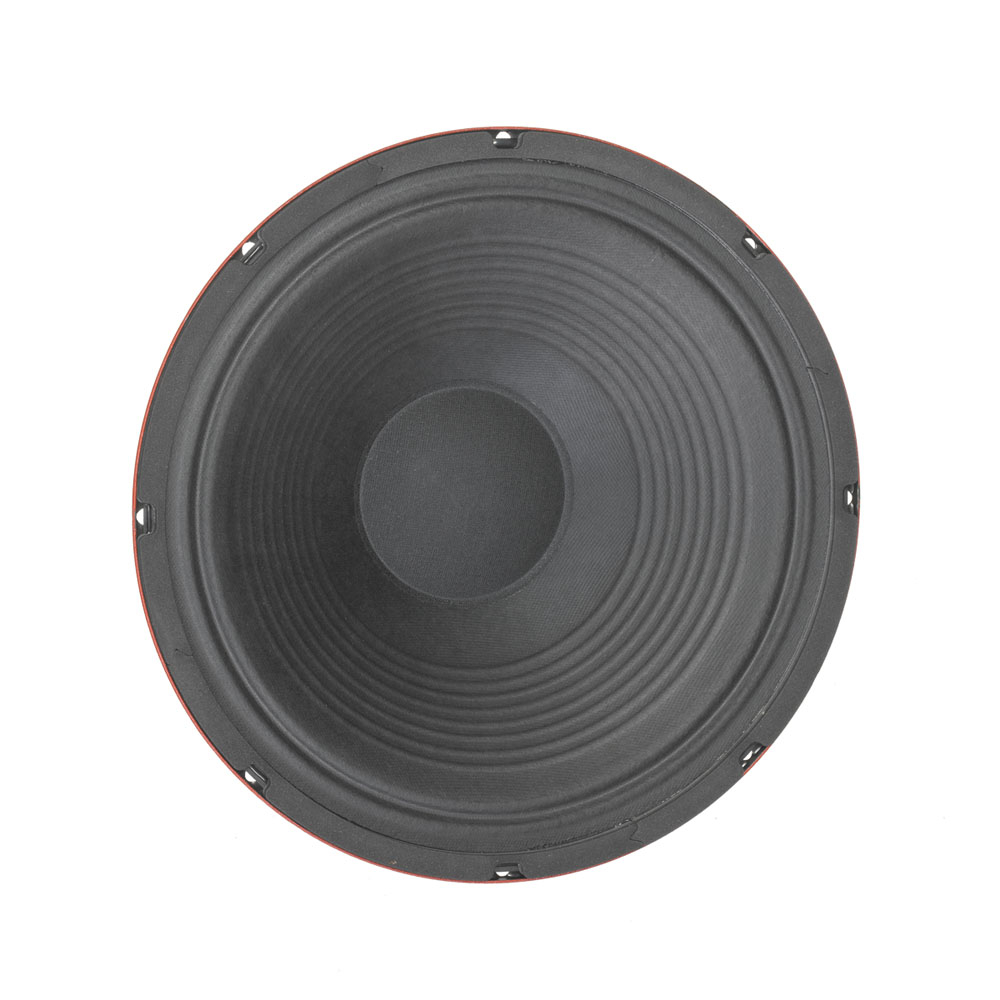

Reignmaker B
12" FDM Speaker 75 W 16 Ohms
Item no.: ERREIGNB
Guarantee: 24 months
EAN: 4049521120879
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
The ReignMaker™ with patent-pending FDM™ technology puts tonal control at your fingertips. Just turn the modulator knob to adjust speaker output and amplifier interaction, helping you find that sweet spot of saturated tube tone but at a significantly lower volume. Tweak the knob for a wide range of tones: More attenuation affords a warmer tone while less attenuation restores volume and brightness.
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 Inch
Nominal Diameter
304.8 mm
Voice Coil
1.75 Inch
Voice Coil
44.5 mm
Overall diameter
305.5 mm
Pitch Circle Diameter
294.3 mm
Cut- out Measurement
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
166.6
Nominal Impedance
16
Nominal Load Capacity
75 W
Sensitivity (1 W / 1 m)
100 dB
Frequency response
80 Hz - 6200 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
103.67 Hz
Re (DC resistance)
12.1 Ω
Qms (mechanical quality)
19.22
Le (inductance of the voice coil)
0.93 MH
Qes (electrical quality)
1.92
Qts (overall quality)
1.74
Vas (equivalent volume)
33.72
Mms (moving mass)
27.12 g
BL (power factor)
10.58 T/M
Xmax (maximum displacement)
0.47 mm
Cms (elasticity of the suspension)
0.08 MM/N
Sd (membrane area)
519.5 CM²
