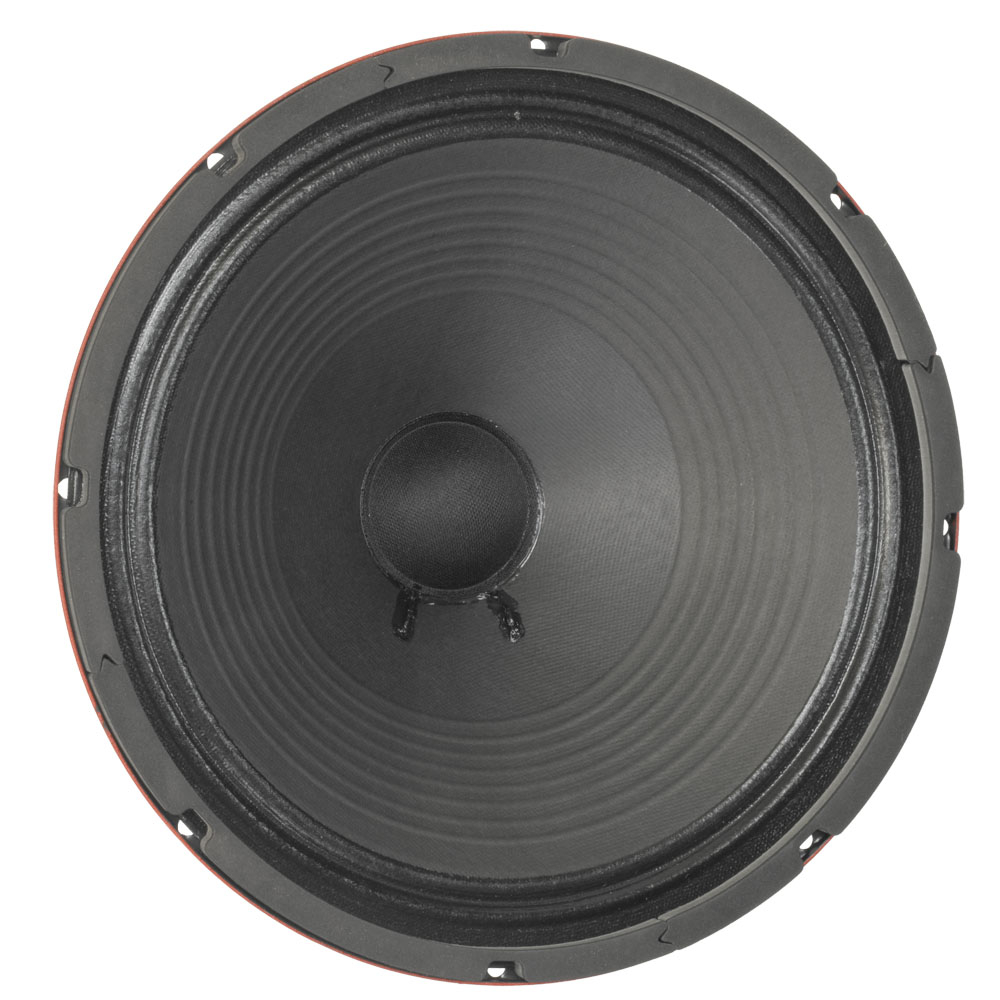

Red Fang 12 B
12" Speaker 50 W 16 Ohms
Item no.: ERREDFANGB
Guarantee: 24 months
EAN: 4049521027192
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
red fang n. a 12" guitar speaker with unique British voicing, a large alnico magnet, smooth distortion and rich harmonics
Coloration: Vintage British sound with warm undertones and high-end sparkle
Genre : Vintage classic British tone for Blues, Country, Indie and Jazz
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
1.75 "
Voice Coil
44.5 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
158 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
50 W
Sensitivity (1 W / 1 m)
103 dB
Frequency response
70 - 6000 Hz
Voice Coil Material
copper
Magnet
Alnico
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
89 Hz
Re (DC resistance)
11.4 Ohm(s)
Qms (mechanical quality)
8.93
Le (inductance of the voice coil)
0.71 mH
Qes (electrical quality)
1.09
Qts (overall quality)
0.97
Vas (equivalent volume)
50.2
Mms (moving mass)
24 g
BL (power factor)
12 T/m
Xmax (maximum displacement)
0.5 mm
Cms (elasticity of the suspension)
0.13 mm/N
Sd (membrane area)
519.5 cm²
Weight
4,81 kg
