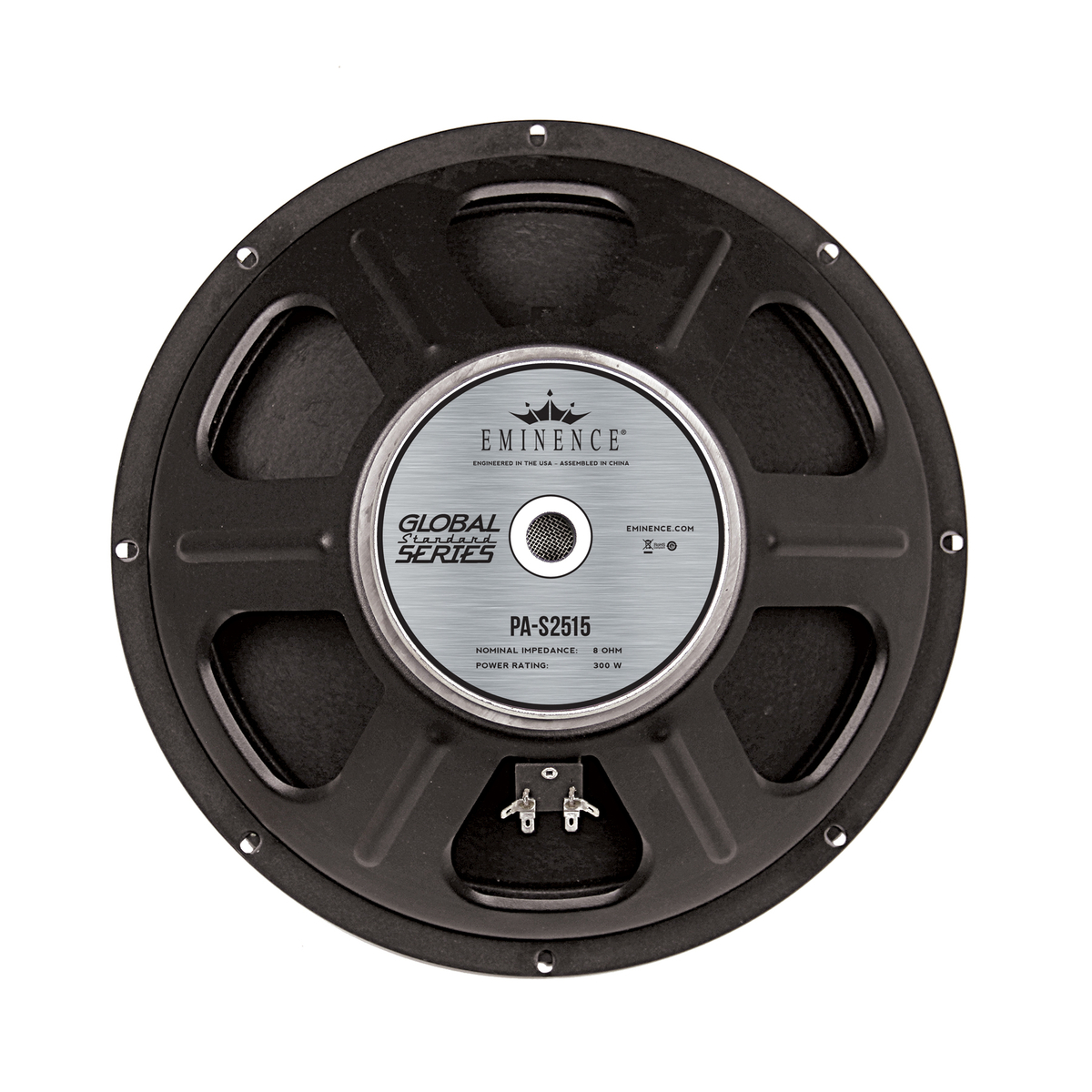

PA-S2515
Ferrite Magnet, Stamped Frame, 2.5” Copper Voice Coil, 99.5dB Sensitivity, 300 Watts
Item no.: EPAS2515A
Guarantee: 24 months
EAN: 4049521606380
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:EMINENCE Global Standard Series
Item highlights:
High power for pro audio and MI applications. Great for small sealed floor wedges ormedium sized vented boxes for mains or bass guitar.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
2.5 "
Voice Coil
64 mm
Overall diameter
384.8 mm
Pitch Circle Diameter
369.8 mm
Cut- out Measurement
351.5 mm
Mounting holes
8
Diameter of fixing holes
6.4 mm
Depth
152.4 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
300 W
Sensitivity (1 W / 1 m)
99.5 dB
Frequency response
52 - 3600 Hz
Voice Coil Material
copper
Magnet
Ferrite
Fs (Resonance Frequency)
44 Hz
Re (DC resistance)
5.1 Ohm(s)
Qms (mechanical quality)
9.97
Le (inductance of the voice coil)
0.86 mH
Qes (electrical quality)
0.45
Qts (overall quality)
0.44
Vas (equivalent volume)
192.81
Mms (moving mass)
70 g
BL (power factor)
14.7 T/m
Xmax (maximum displacement)
3.2 mm
Cms (elasticity of the suspension)
0.19 mm/N
Sd (membrane area)
864.6 cm²
Weight
5,66 kg
