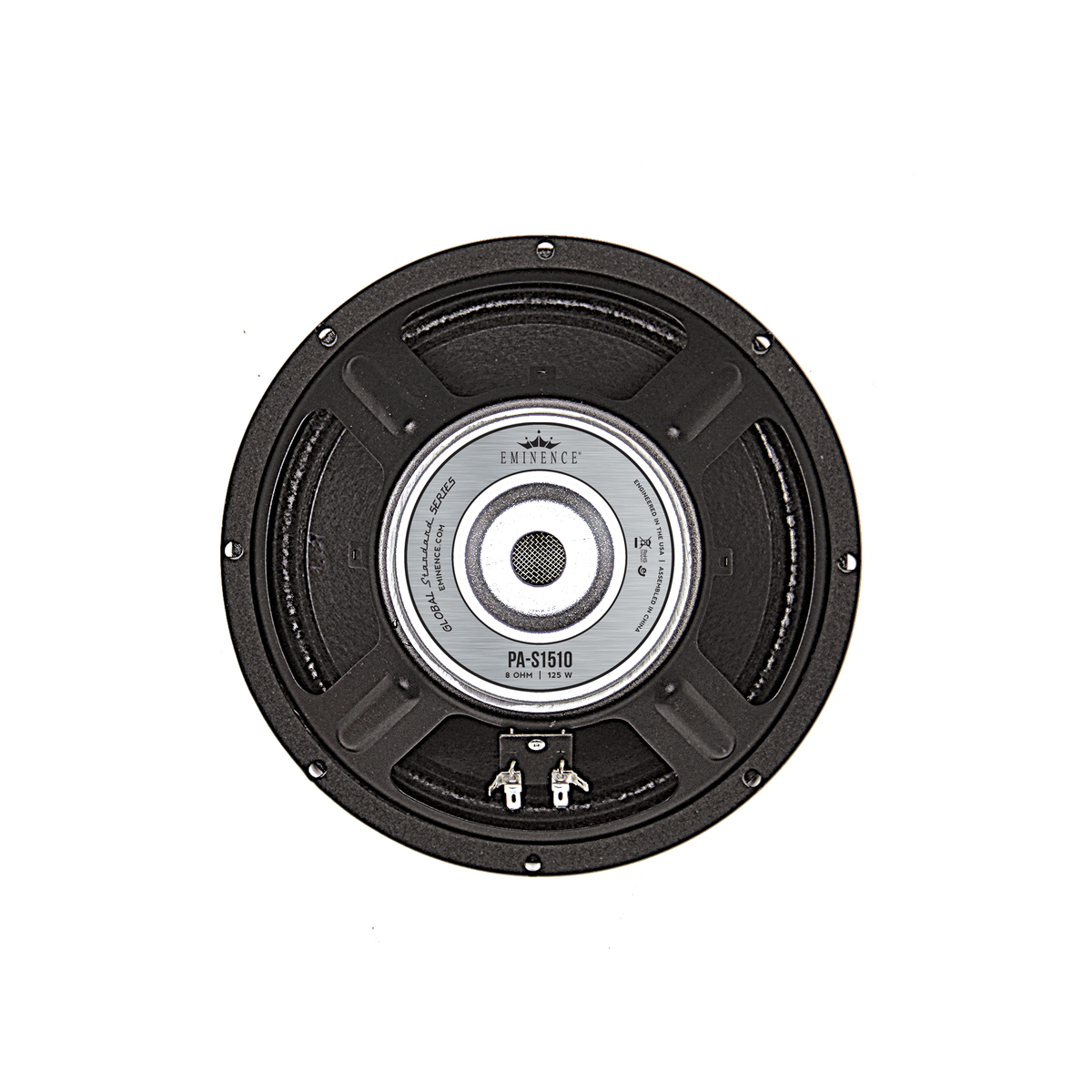

PA-S1510
Ferrite Magnet, Stamped Frame, 1.5” Copper Voice Coil, 125 Watts, 95.3db Sensitivity
Item no.: EPAS1510A
Guarantee: 24 months
EAN: 4049521606342
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:EMINENCE Global Standard Series
Item highlights:
Medium power pro audio and MI driver. Works well as a mid in small sealed boxes, as a mid/bass driver in vented box, or for Bass Guitar in medium sized vented cabinets.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 Inch
Nominal Diameter
254 mm
Voice Coil
1.5 Inch
Voice Coil
38 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
246.1 mm
Cut- out Measurement
231.9 mm
Mounting holes
8
Diameter of fixing holes
5.8 mm
Depth
96.5
Nominal Impedance
8
Nominal Load Capacity
125 W
Sensitivity (1 W / 1 m)
95.3 dB
Frequency response
84 Hz - 5000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Fs (Resonance Frequency)
50 Hz
Re (DC resistance)
6.6 Ω
Qms (mechanical quality)
3.81
Le (inductance of the voice coil)
0.66 MH
Qes (electrical quality)
0.58
Qts (overall quality)
0.5
Vas (equivalent volume)
80.23
Mms (moving mass)
23 g
BL (power factor)
9 T/M
Xmax (maximum displacement)
3.2 mm
Cms (elasticity of the suspension)
0.46 MM/N
Sd (membrane area)
355.4 CM²
