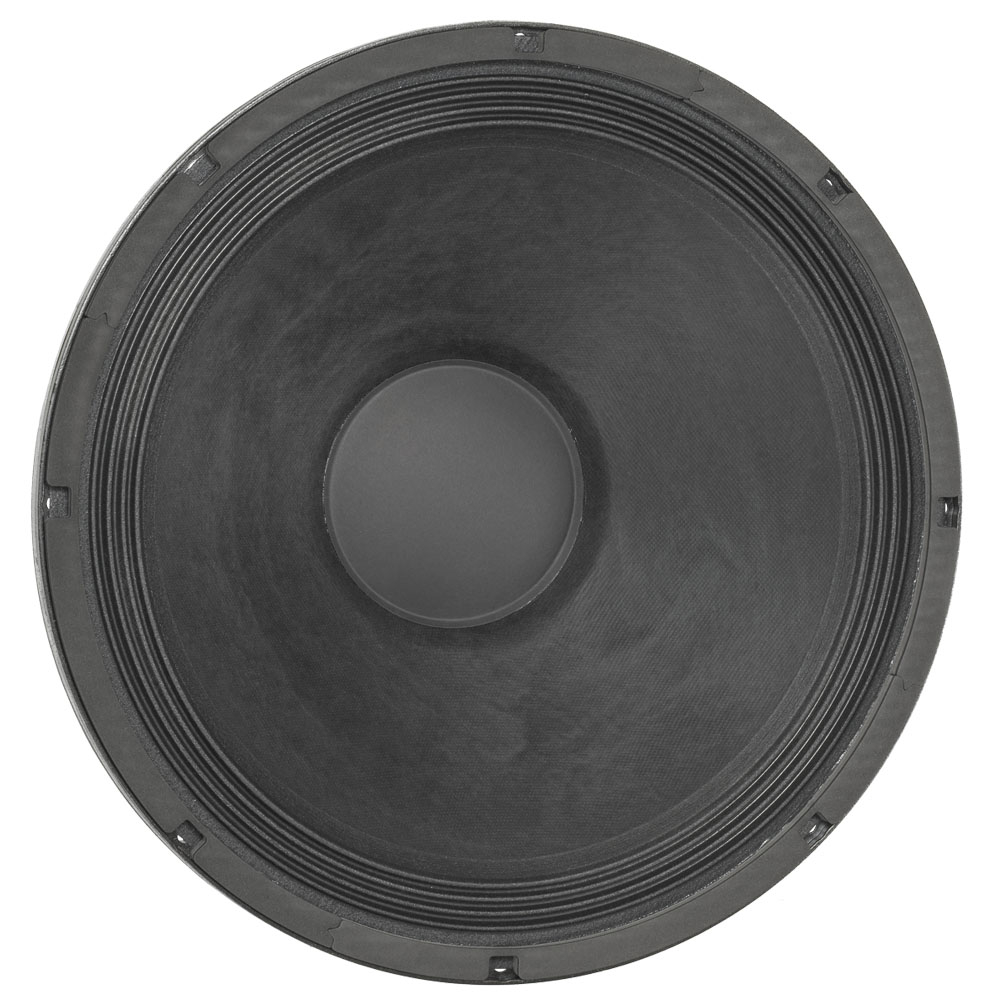

Omega Pro 18 A
18" Speaker 800 W 8 Ohm - die-cast Basket
Item no.: EOP18A
Guarantee: 24 months
EAN: 4049521026478
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
OMEGA PRO-18A Professional Series
Recommended for professional audio as a woofer in vented enclosures. Also ideal for horn loading and scoops.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
18 "
Nominal Diameter
457.2 mm
Voice Coil
4 "
Voice Coil
101.6 mm
Overall diameter
457.2 mm
Pitch Circle Diameter
438.2 mm
Cut- out Measurement
420.5 mm
Diameter of fixing holes
7.1 mm
Depth
207 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
800 W
maximum rated load
1600 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
40 - 800 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Fs (Resonance Frequency)
25 Hz
Re (DC resistance)
5.2 Ohm(s)
Qms (mechanical quality)
8.18
Le (inductance of the voice coil)
1.67 mH
Qes (electrical quality)
0.32
Qts (overall quality)
0.31
Vas (equivalent volume)
548.7
Mms (moving mass)
138 g
BL (power factor)
18.8 T/m
Xmax (maximum displacement)
4.8 mm
Cms (elasticity of the suspension)
0.29 mm/N
Sd (membrane area)
1159 cm²
Weight
12,14 kg
