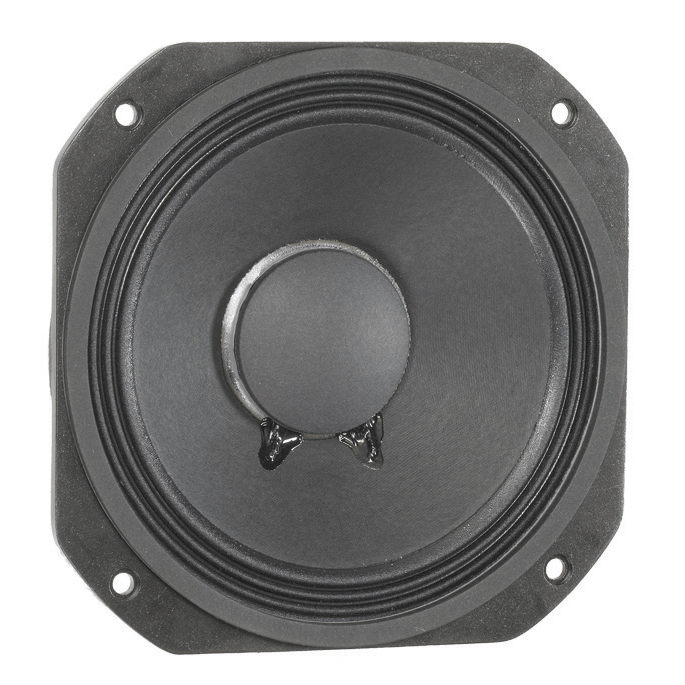

Line Array 8 CNMBA
8" Speaker 225 W 8 Ohms
Item no.: ELA8CNMBA
Guarantee: 24 months
EAN: 4049521025907
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
8" Speaker 225 W 8 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 Inch
Nominal Diameter
203 mm
Voice Coil
2.5 Inch
Voice Coil
63.5 mm
Overall diameter
203.71 mm
Pitch Circle Diameter
218 mm
Cut- out Measurement
186.94 mm
Diameter of fixing holes
7.11 mm
Depth
99.06
Nominal Impedance
8
Nominal Load Capacity
225 W
maximum rated load
450 W
Sensitivity (1 W / 1 m)
95.5 dB
Frequency response
82 Hz - 3200 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
6.99 mm
Fs (Resonance Frequency)
81 Hz
Re (DC resistance)
5.6 Ω
Qms (mechanical quality)
4.66
Le (inductance of the voice coil)
0.62 MH
Qes (electrical quality)
0.4
Qts (overall quality)
0.37
Vas (equivalent volume)
10.95
Mms (moving mass)
24 g
BL (power factor)
13 T/M
Xmax (maximum displacement)
4.5 mm
Cms (elasticity of the suspension)
0.16 MM/N
Sd (membrane area)
222.4 CM²
