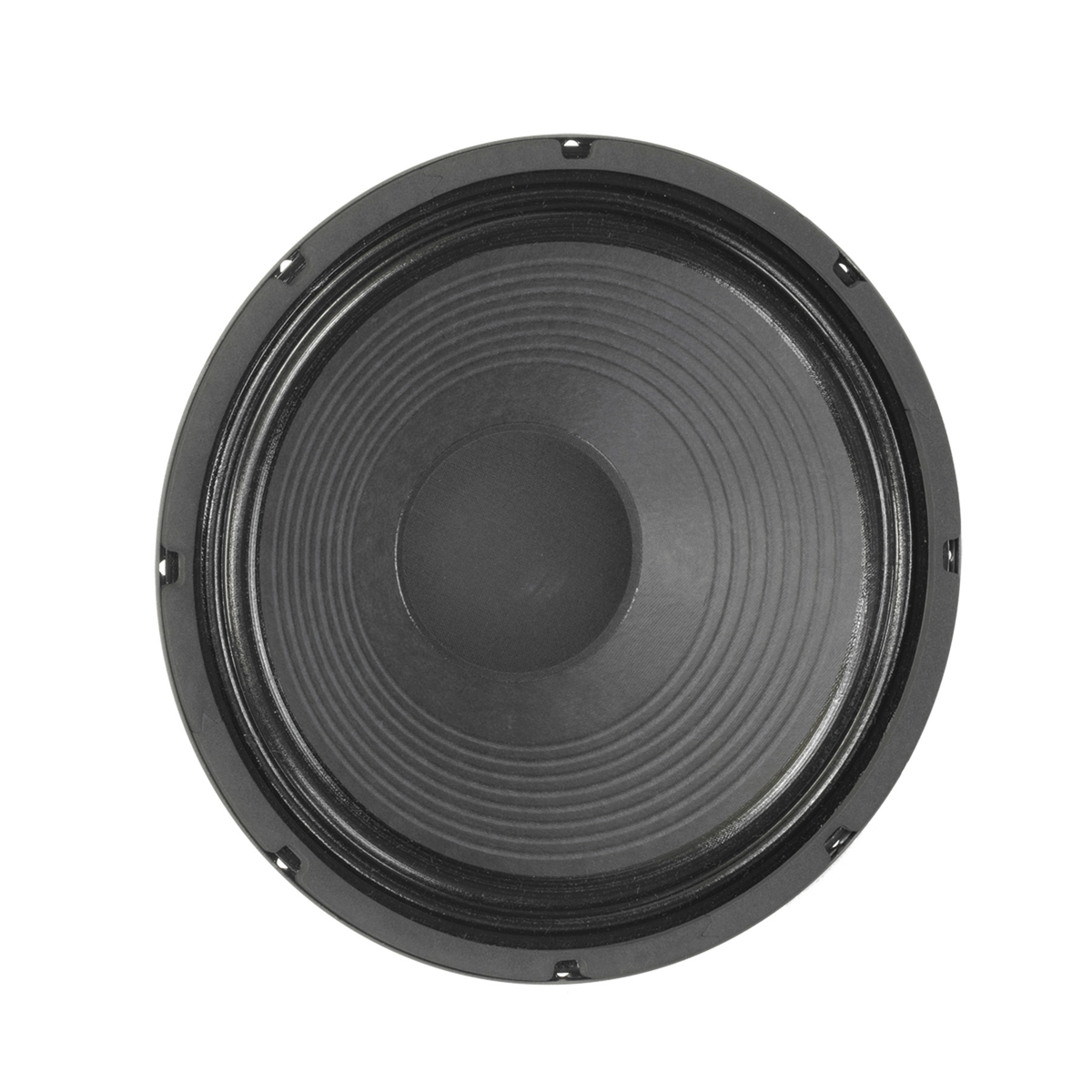

Lil Texas A
12" Speaker 125 W 8 Ohms
Item no.: EPLILTEXA
Guarantee: 24 months
EAN: 4049521026645
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
LIL Texas
lil-texas n. a lightweight 12" speaker with a little Texas edge Coloration : Very balanced with crisp mids and top end bite. Tight bottom end, very American tonality.
Genre : Classic Rock, Blues Country
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 Inch
Nominal Diameter
304.8 mm
Voice Coil
2 Inch
Voice Coil
50.8 mm
Overall diameter
305.5 mm
Pitch Circle Diameter
294.3 mm
Cut- out Measurement
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
129
Nominal Impedance
8
Nominal Load Capacity
125 W
Sensitivity (1 W / 1 m)
101 dB
Frequency response
70 Hz - 5500lx @ 1m Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
7.2 mm
Fs (Resonance Frequency)
90 Hz
Re (DC resistance)
7.2 Ω
Qms (mechanical quality)
11.29
Le (inductance of the voice coil)
0.42 MH
Qes (electrical quality)
0.69
Qts (overall quality)
0.65
Vas (equivalent volume)
43
Mms (moving mass)
28 g
BL (power factor)
12.8 T/M
Xmax (maximum displacement)
1.3 mm
Cms (elasticity of the suspension)
0.11 MM/N
Sd (membrane area)
519.5 CM²
