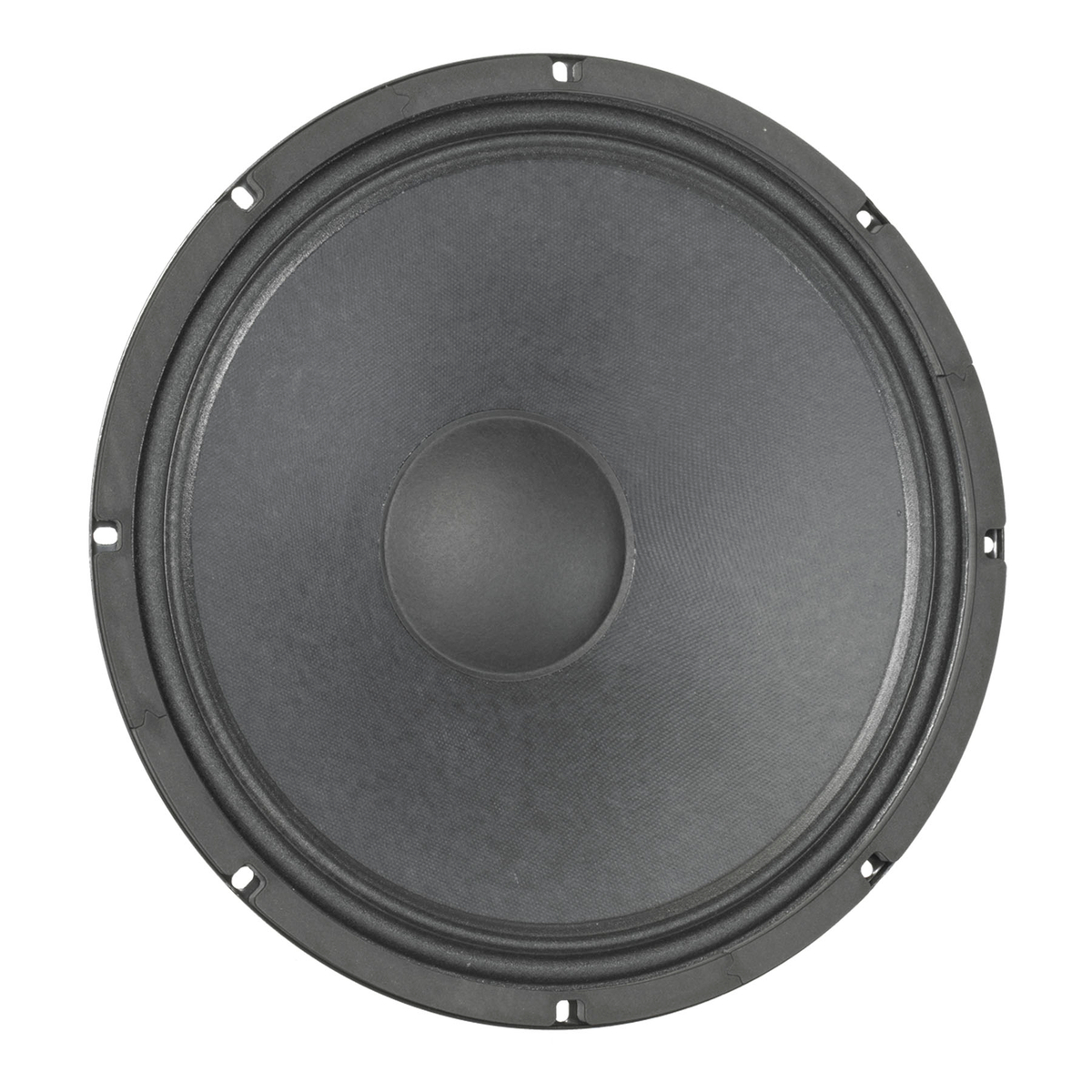

Legend CA 154
15" Speaker 300 W 4 Ohms
Item no.: EGLCA15C
Guarantee: 24 months
EAN: 4049521090820
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Pro Sound 15" Woofer for use in Bass Guitar cabinets or in PA cabinets. Four Ohm Driver with High SPL.
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
15 Inch
Nominal Diameter
381 mm
Voice Coil
2.5 Inch
Voice Coil
63.5 mm
Overall diameter
384.81 mm
Pitch Circle Diameter
369.8 mm
Cut- out Measurement
352.3 mm
Diameter of fixing holes
6.35 mm
Depth
158.75
Nominal Impedance
4
Nominal Load Capacity
300 W
Sensitivity (1 W / 1 m)
96.9 dB
Frequency response
45 Hz - 3000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Fs (Resonance Frequency)
51 Hz
Re (DC resistance)
2.92 Ω
Qms (mechanical quality)
4.94
Le (inductance of the voice coil)
0.8 MH
Qes (electrical quality)
0.54
Qts (overall quality)
0.49
Vas (equivalent volume)
108.2
Mms (moving mass)
86.5 g
BL (power factor)
12.21 T/M
Xmax (maximum displacement)
0 mm
Cms (elasticity of the suspension)
0.11 MM/N
Sd (membrane area)
823.7 CM²
