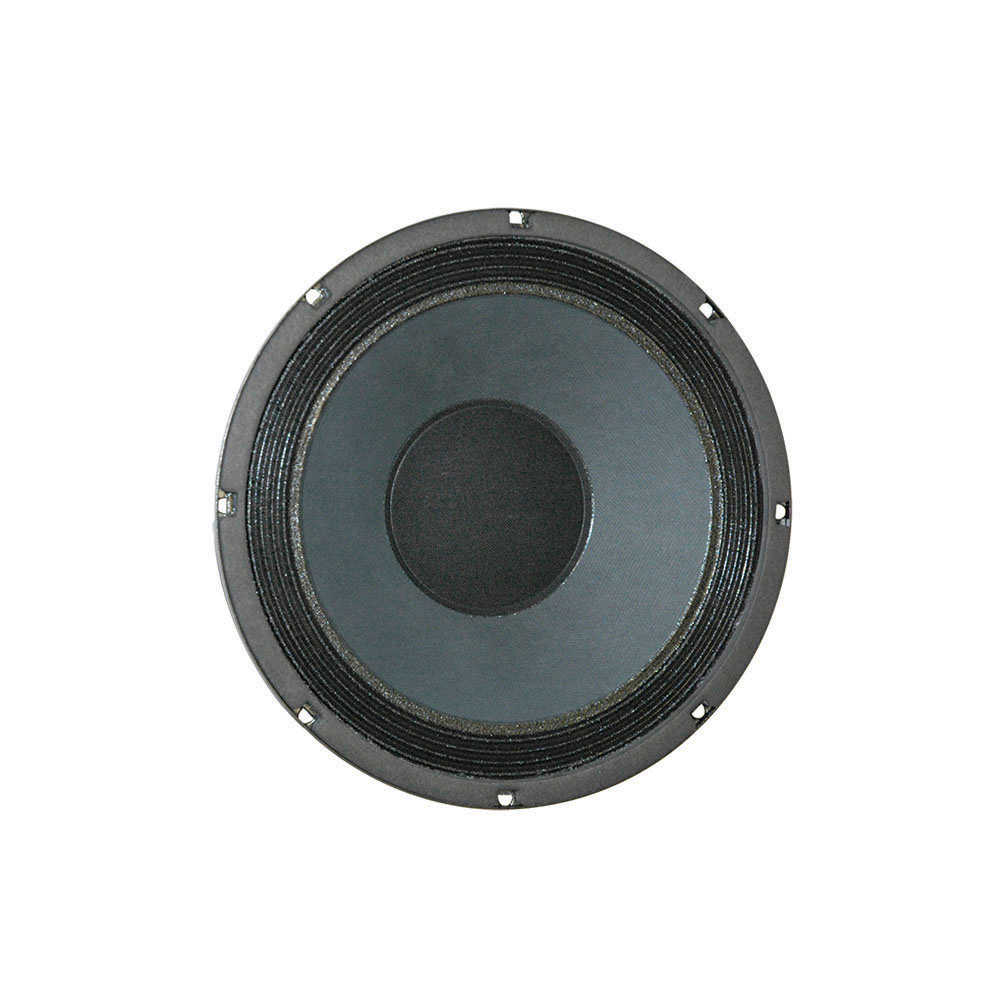

Legend BP 102 A
10" Speaker 200 W 8 Ohms
Item no.: EGLBP102A
Guarantee: 24 months
EAN: 4049521025518
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multidriver designs.
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
10 Inch
Nominal Diameter
254 mm
Voice Coil
2 Inch
Voice Coil
50.8 mm
Overall diameter
256.1 mm
Pitch Circle Diameter
245.4 mm
Cut- out Measurement
229.7 mm
Diameter of fixing holes
6.4 mm
Depth
108
Nominal Impedance
8
Nominal Load Capacity
200 W
maximum rated load
400 W
Sensitivity (1 W / 1 m)
92 dB
Frequency response
40 Hz - 2000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
35 Hz
Re (DC resistance)
5.59 Ω
Qms (mechanical quality)
5.36
Le (inductance of the voice coil)
0.83 MH
Qes (electrical quality)
0.47
Qts (overall quality)
0.43
Vas (equivalent volume)
91.2
Mms (moving mass)
38 g
BL (power factor)
10 T/M
Xmax (maximum displacement)
6.2 mm
Cms (elasticity of the suspension)
0.54 MM/N
Sd (membrane area)
334.5 CM²
