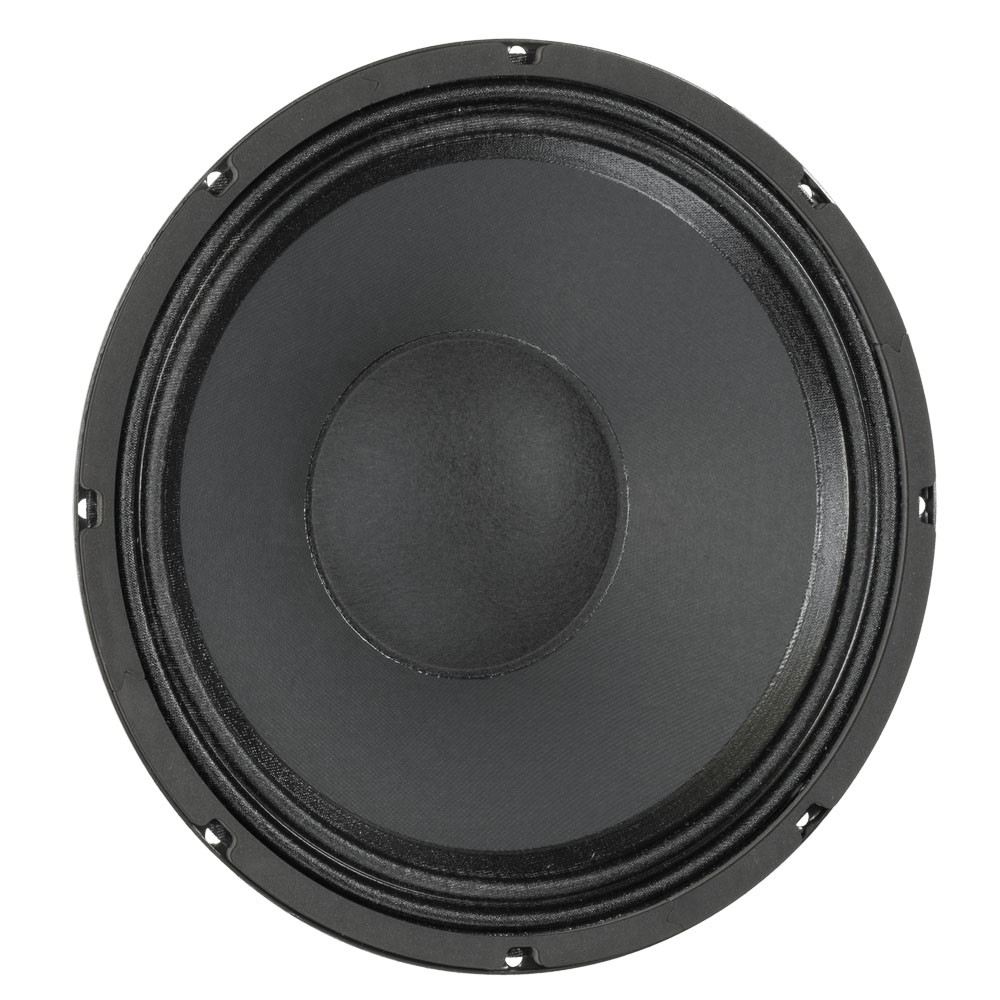

Legend 125 B
12" Speaker 75 W 16 Ohms
Item no.: EGL125B
Guarantee: 24 months
EAN: 4049521172618
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Higher power, vintage, seamed cone tonality for guitar. Ideal Vintage alnico Jensen replacement.
Coloration : American growl, but with sparkle, definition and edgy top-end. Very vintage!
Genre : Rock and Roll, Country, Blues
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
1.5 "
Voice Coil
38.1 mm
Overall diameter
305.5 mm
Pitch Circle Diameter
294.3 mm
Cut- out Measurement
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
125 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
75 W
Sensitivity (1 W / 1 m)
100.1 dB
Frequency response
80 - 4000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Fs (Resonance Frequency)
94 Hz
Re (DC resistance)
7.44 Ohm(s)
Qms (mechanical quality)
6.15
Le (inductance of the voice coil)
0.7 mH
Qes (electrical quality)
1.18
Qts (overall quality)
0.99
Vas (equivalent volume)
32.5
Mms (moving mass)
32 g
BL (power factor)
10.9 T/m
Xmax (maximum displacement)
0.5 mm
Cms (elasticity of the suspension)
0.09 mm/N
Sd (membrane area)
506.7 cm²
Weight
4,49 kg
