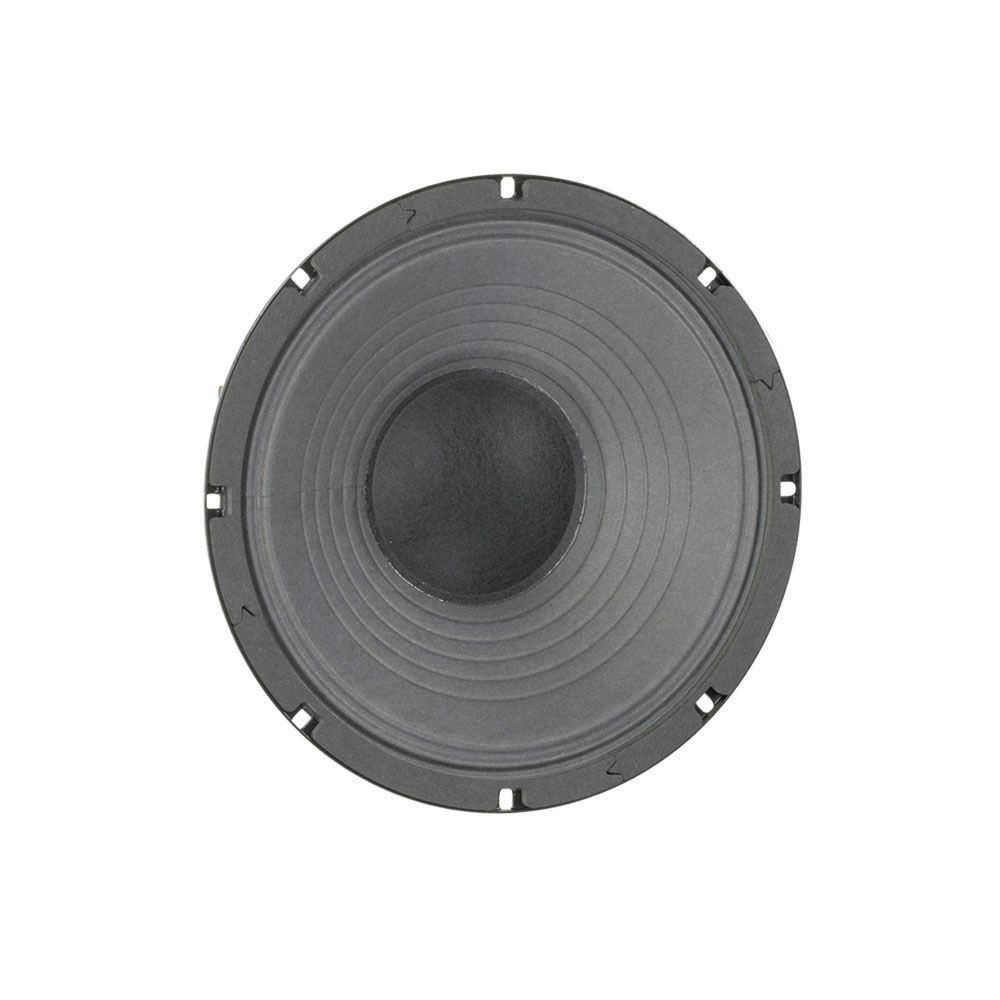

Legend 105 B
10" Speaker 75 W 16 Ohms
Item no.: EGL105B
Guarantee: 24 months
EAN: 4049521025402
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
LEGEND 1058
Higher power, vintage, seamed cone tonality for guitar. Ideal Vintage alnico Jensen replacement. Coloration : A very meaty tone, but with sparkle, definition and a smooth top-end
Genre : Blues, Country, Rock
Specifications
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
10 "
Nominal Diameter
254 mm
Voice Coil
1.5 "
Voice Coil
38.1 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Cut- out Measurement
231.8 mm
Diameter of fixing holes
5.7 mm
Depth
104 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
75 W
maximum rated load
150 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
100 - 5800 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
6.35 mm
Fs (Resonance Frequency)
96 Hz
Re (DC resistance)
10.2 Ohm(s)
Qms (mechanical quality)
13.8
Le (inductance of the voice coil)
0.64 mH
Qes (electrical quality)
1.32
Qts (overall quality)
1.21
Vas (equivalent volume)
21.8
Mms (moving mass)
21 g
BL (power factor)
9.9 T/m
Xmax (maximum displacement)
0 mm
Cms (elasticity of the suspension)
0.13 mm/N
Sd (membrane area)
344.9 cm²
Weight
2,45 kg
