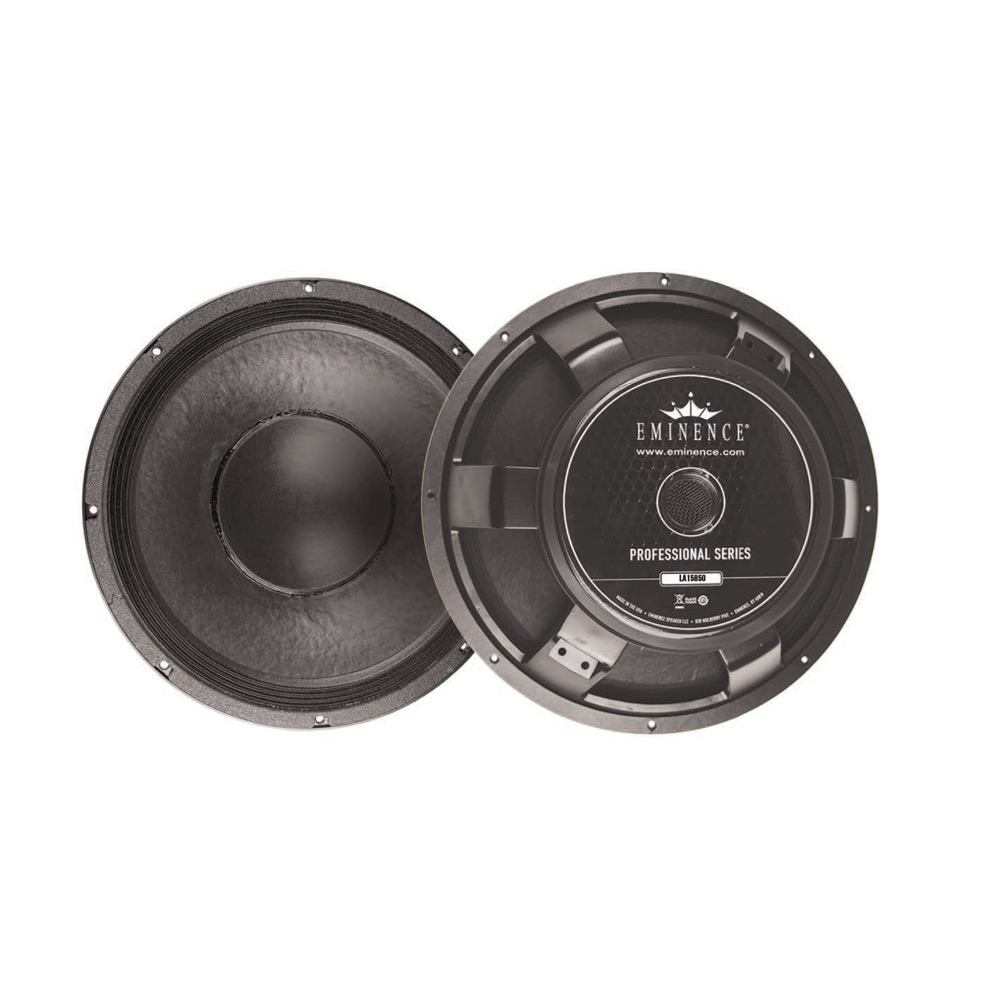

LA 15850 A
15" Speaker 800 W 8 Ohm
Item no.: ELA15850A
Guarantee: 24 months
EAN: 4049521168222
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
Shallow 15 inch high power cast frame woofer with a 4 inch voice coil and super strong cone body. The inverted dust cap allows close placement to phase plugs used in many horn loaded designs. Also works well in small vented designs when a high power mid/bass is needed.
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
4 "
Voice Coil
102 mm
Overall diameter
388,6 mm
Pitch Circle Diameter
370.1 mm
Cut- out Measurement
357.6 mm
Diameter of fixing holes
6.5 mm
Depth
139.7 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
800 W
Sensitivity (1 W / 1 m)
96.2 dB
Frequency response
45 - 1500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.5 mm
Fs (Resonance Frequency)
34 Hz
Re (DC resistance)
5.83 Ohm(s)
Qms (mechanical quality)
9.27
Le (inductance of the voice coil)
1 mH
Qes (electrical quality)
0.34
Qts (overall quality)
0.33
Vas (equivalent volume)
234.15
Mms (moving mass)
98 g
BL (power factor)
18.98 T/m
Xmax (maximum displacement)
4.1 mm
Cms (elasticity of the suspension)
0.23 mm/N
Sd (membrane area)
856.3 cm²
Weight
10,7 kg
